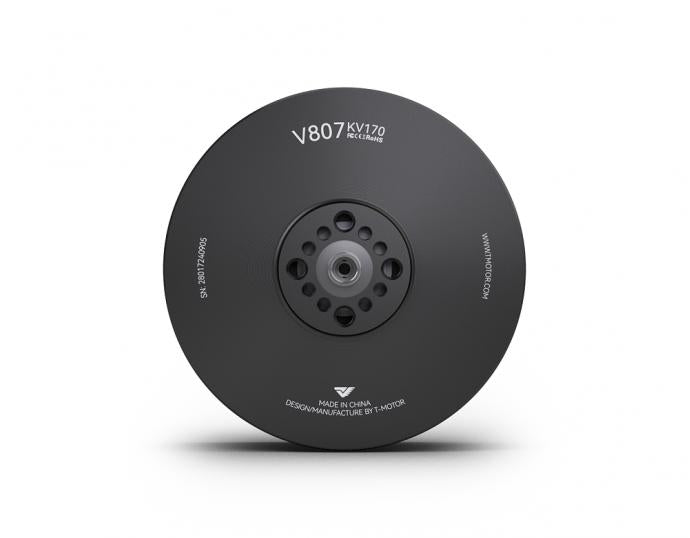

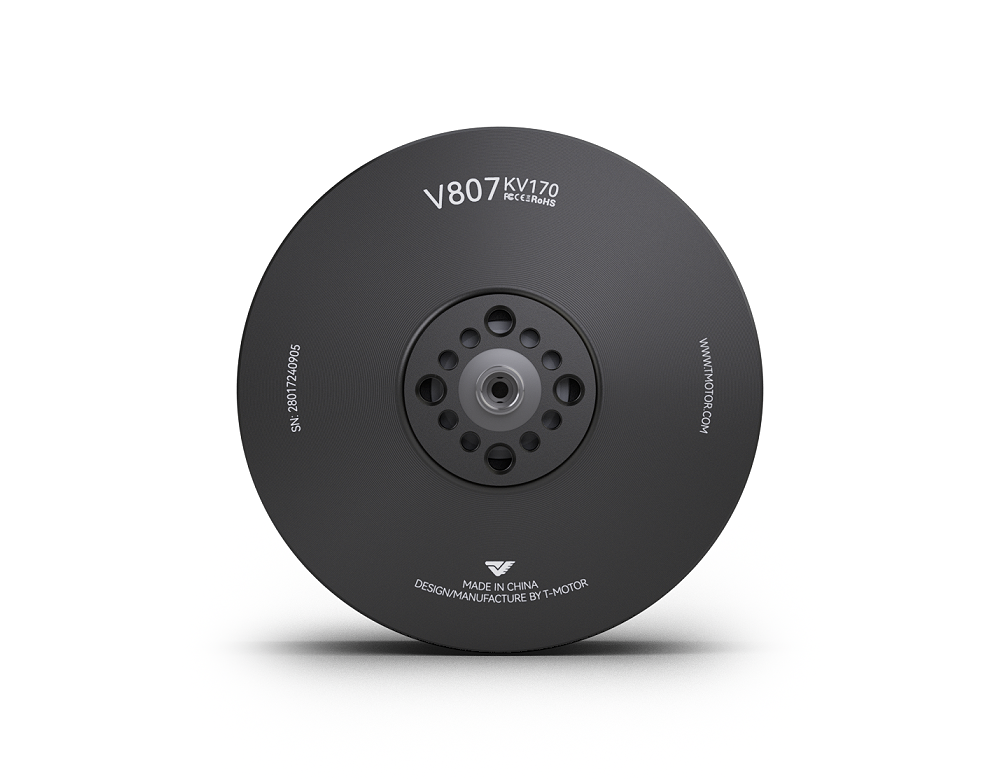

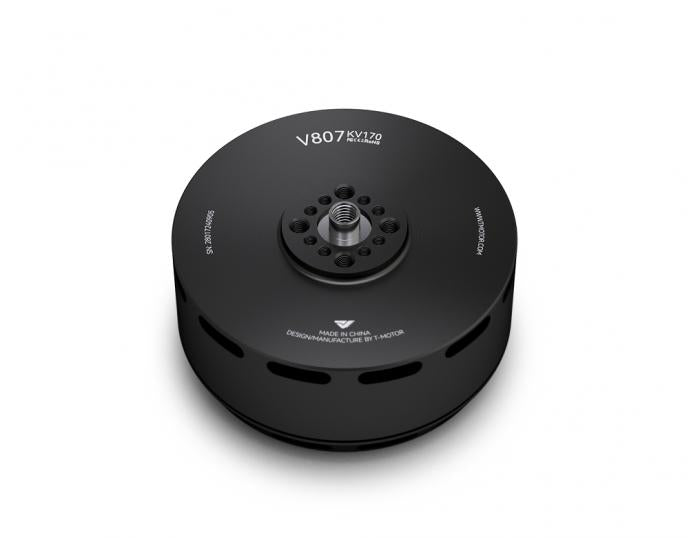

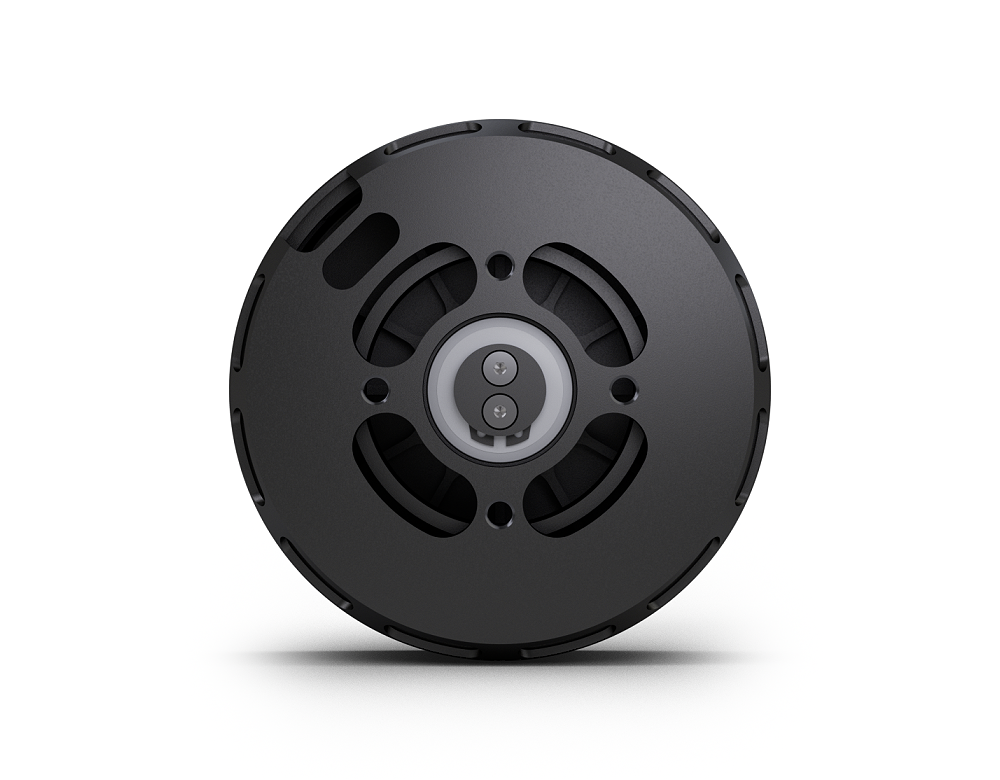

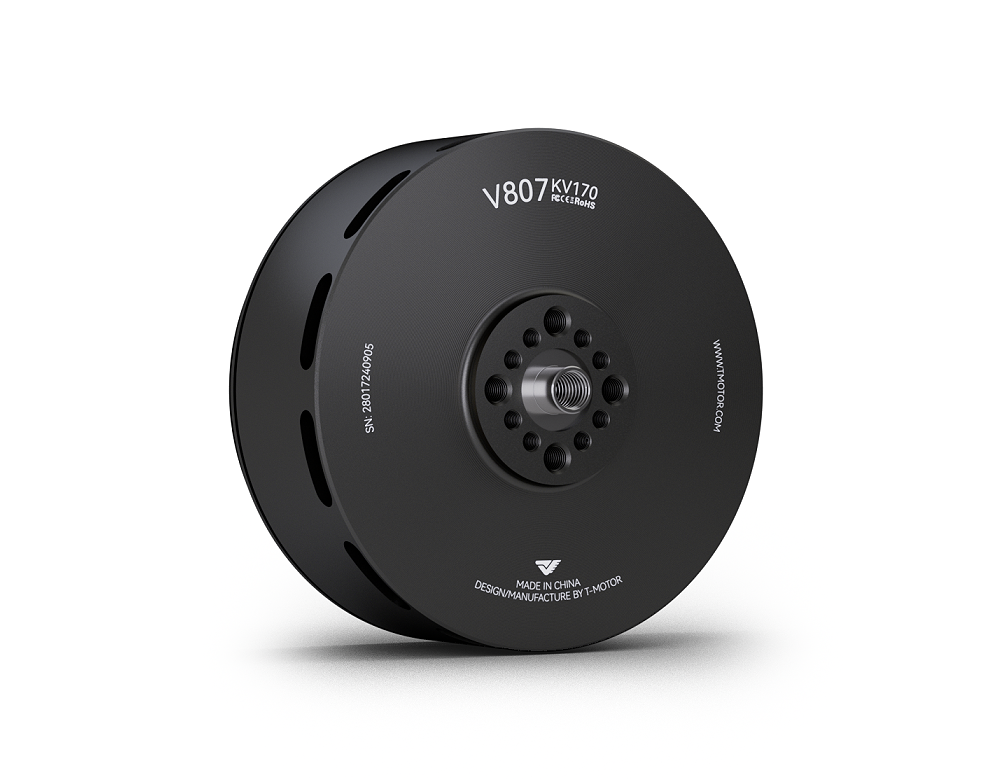

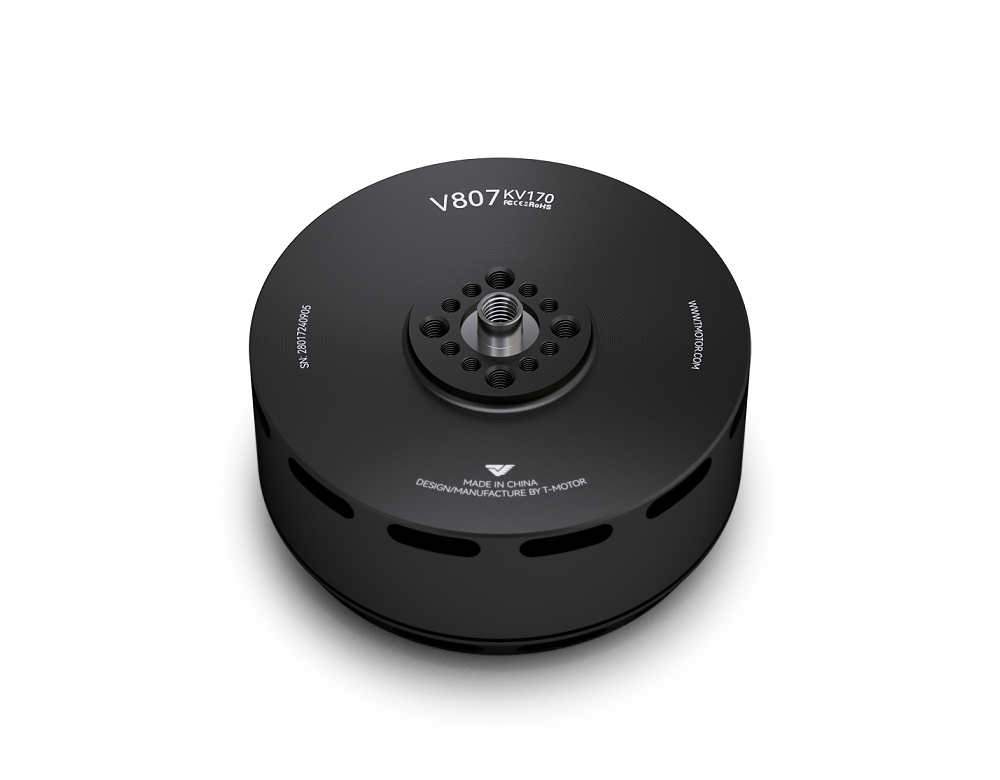

T-MOTOR V807 KV170 VTOL UAV Motor
$599.00
The V807 is an official T-MOTOR V motor for vtol aircraft applications. Review the manufacturer data for the complete propulsion system before installation.
Key Features
- V Series motors are purpose-built for VTOL propulsion, with model-specific lift, cruise, voltage, ESC, and propeller requirements.
- Recommended propeller: G27*8.8/G28*9.2/G29*9.5.
- Motor weight including cable: 800 g.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
- Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV170 | AWD100100031 | One motor |
Technical Specifications
| Manufacturer identifier | AWD100100031 |
|---|---|
| Series | V |
| KV rating | KV170 |
| Recommended propeller | G27*8.8/G28*9.2/G29*9.5 |
| Motor configuration | 24N28P |
| Bearing | Imported 6901ZZ |
| Motor weight including cable | 800 g |
| Net weight | 670 g |
| Package dimensions | 162 x 132 x 66 mm |
What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
V
Specifications and technical data
Official model-specific reference material
Selected configuration
KV170
Manufacturer SKU AWD100100031
| Manufacturer identifier | AWD100100031 |
|---|---|
| Series | V |
| KV rating | KV170 |
| Recommended propeller | G27*8.8/G28*9.2/G29*9.5 |
| Motor configuration | 24N28P |
| Bearing | Imported 6901ZZ |
| Motor weight including cable | 800 g |
| Net weight | 670 g |
| Package dimensions | 162 x 132 x 66 mm |
03
Manufacturer reference
