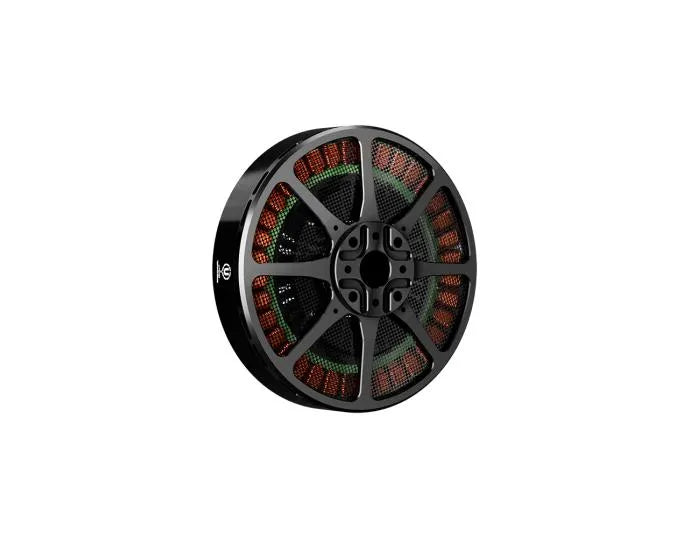

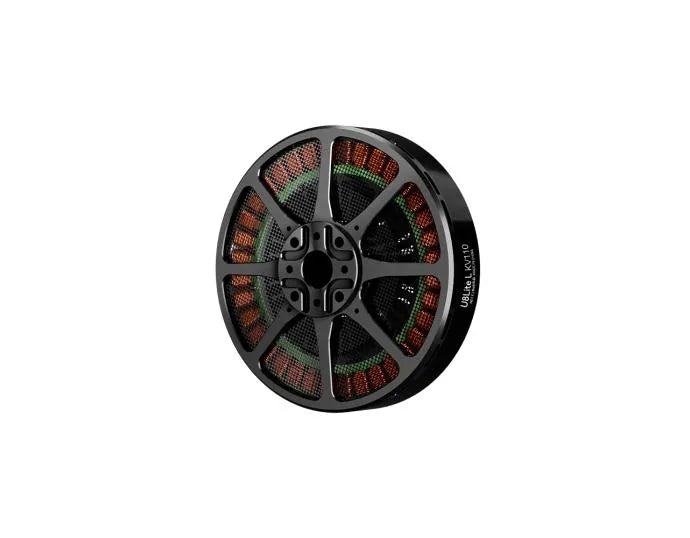

U8 Lite L Efficiency Multirotor UAV Motor KV95
  • U8 Lite L Efficiency Multirotor UAV Motor KV95
  • U8 Lite L Efficiency Multirotor UAV Motor KV95
  • U8 Lite L Efficiency Multirotor UAV Motor KV95
  • U8 Lite L Efficiency Multirotor UAV Motor KV95
T-MOTOR U8 Lite L U Efficiency UAV Motor

T-MOTOR U8 Lite L U Efficiency UAV Motor

$749.00
KV

Matched propulsion components

Choose one verified propeller and/or ESC for the selected KV. Items are sold separately.

Selected components use the same quantity as the motor. Check each linked product page for package contents.

U Efficiency series. U Efficiency models prioritize endurance, efficiency, and lower propulsion-system mass for professional multirotor applications.

A lightweight U Efficiency motor family with sourced KV95 and KV110 configurations and exact manufacturer identifiers.

Key Features

  • Exact official model and option matrix verified against T-MOTOR.
  • Official specifications and performance data are retained for each configuration.
  • Motor dimensions: 87.1 x 28.05 mm; shaft: 15 mm.
  • Recommended system matching: T-MOTOR G29 x 9.5, G30 x 10.5, or G32 x 11 according to the exact-KV chart.
  • Propeller, ESC, battery, controller, mount, airframe, and pictured accessories are sold separately unless explicitly listed below.

Configuration Specifications

Configuration Manufacturer SKU Weight incl. cable Rated voltage Resistance Current limit Max/rated power Sourced max thrust
KV95 AWD06010005 280 g 12S / 48-52 V 146 mOhm 38 A (180 s) 1,790 W (180 s) See official performance data
KV110 AWD06010013 282 g 12S / 48-52 V 105 mOhm 45.8 A (180 s) 2,140 W (180 s) 11.2 kg sourced page claim

Performance Data

Official T-MOTOR test reports and performance charts are presented in the dedicated Technical Data section when the manufacturer publishes them as durable image assets. Use the exact configuration, voltage, propeller, and test conditions shown; do not extrapolate one KV configuration to another.

In the Box

  • 1 x T-MOTOR motor in the selected configuration
  • 1 x manufacturer hardware pack shown in official package-contents media

Integration and Safety

Confirm propeller, ESC, battery voltage, current headroom, mounting, cooling, control, airframe load, and local operating requirements before use. Performance values are manufacturer bench-test data, not a guarantee for a completed aircraft.

U Efficiency

Specifications and technical data

Official model-specific reference material
Selected configuration

KV95

Manufacturer SKU AWD06010005

KV KV95
Rated voltage 12S / 48-52 V
Weight including cable 280 g
Internal resistance 146 mOhm
Maximum current 38 A (180 s)
Maximum or rated power 1,790 W (180 s)
Maximum thrust evidence See official performance data
Motor dimensions 87.1 x 28.05 mm
Shaft diameter 15 mm
01

Performance data

T-MOTOR U8 Lite L U Efficiency UAV Motor - official product detail 4
T-MOTOR U8 Lite L U Efficiency UAV Motor - official product detail 5
T-MOTOR U8 Lite L U Efficiency UAV Motor - KV95 official test report
02

Dimensions

T-MOTOR U8 Lite L U Efficiency UAV Motor - official product drawing
T-MOTOR U8 Lite L U Efficiency UAV Motor - official package contents
03

Manufacturer reference

T-MOTOR U8 Lite L U Efficiency UAV Motor - official product detail 6
T-MOTOR U8 Lite L U Efficiency UAV Motor - official product detail 7
T-MOTOR U8 Lite L U Efficiency UAV Motor - KV95 and KV110 specifications
