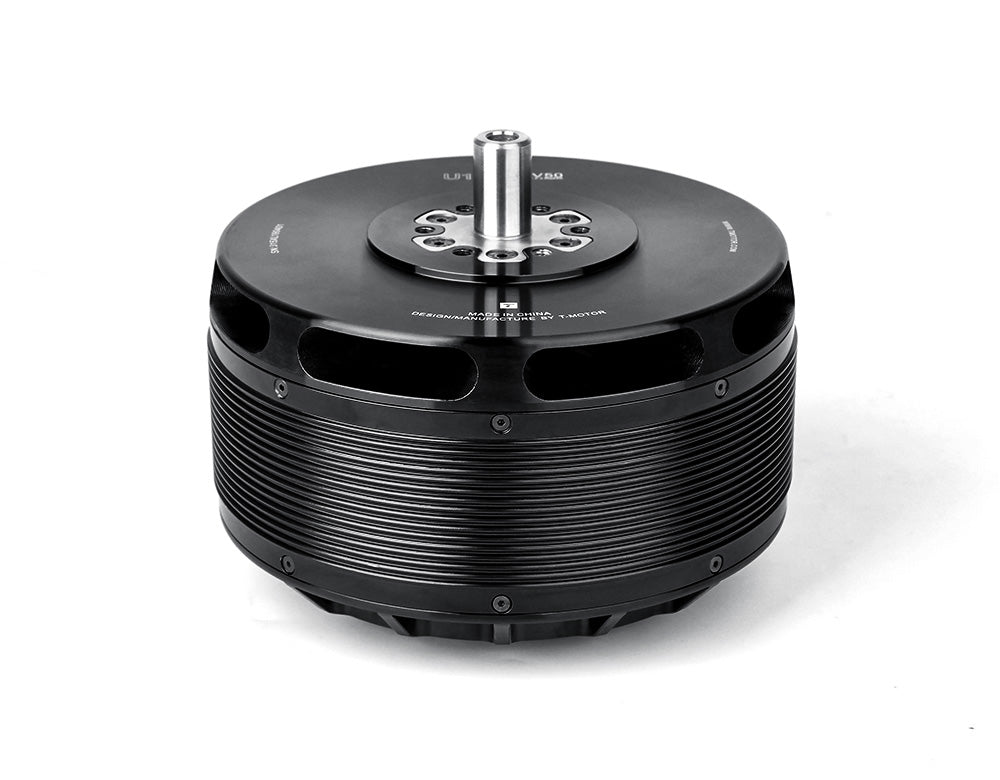

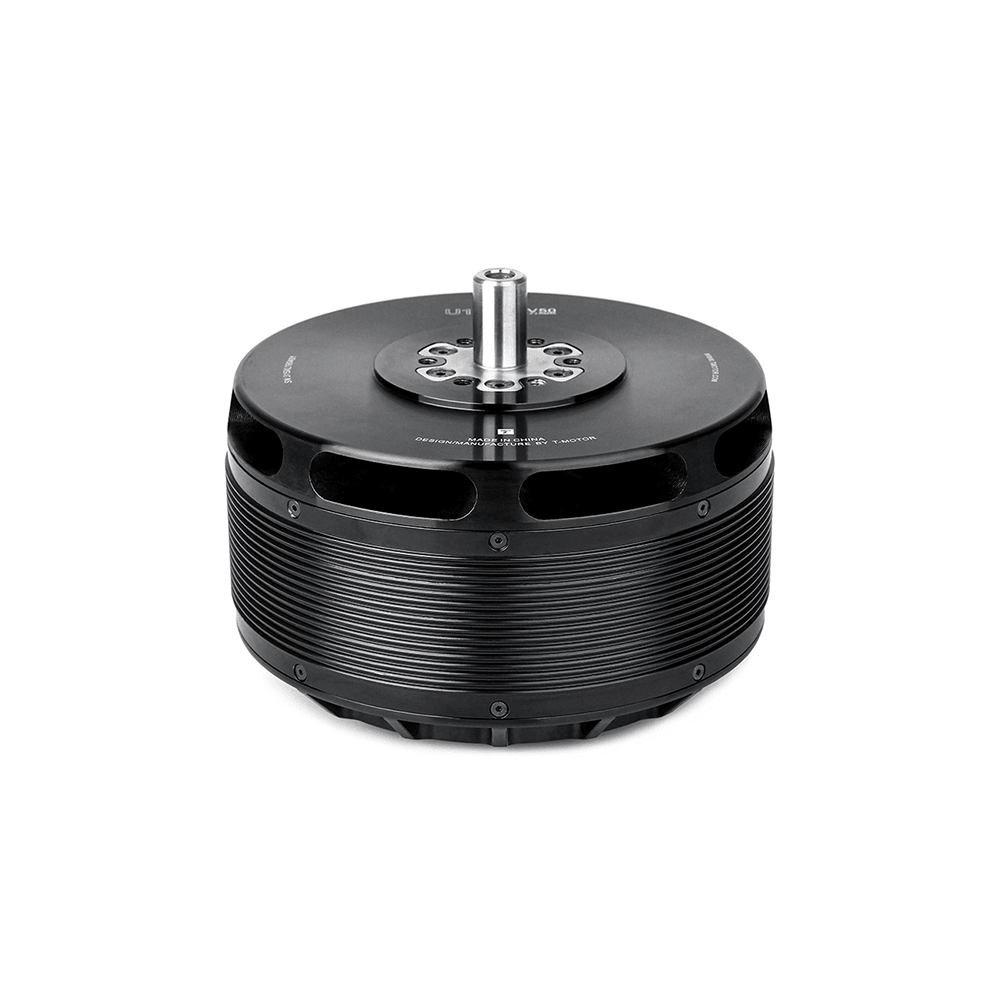

T-MOTOR U15XL KV38 Heavy-Lift UAV Motor
The T-MOTOR U15XL KV38 is a 24S heavy-lift motor intended for professionally engineered UAV and aircraft propulsion systems. Official manufacturer test data reaches approximately 81.2 kg of thrust with the specified NS52 x 20 propeller configuration.
Key features
- KV38 winding with a published 24S LiPo rated voltage
- Up to approximately 81.2 kg maximum thrust under manufacturer test conditions
- 3,550 W rated power and 180 A peak current for 120 seconds
- 36N42P configuration with 200 mm enameled-wire leads
- 4,408 g motor including cable
Specifications
| Manufacturer SKU | AWD06010010 |
|---|---|
| KV rating | KV38 |
| Rated voltage | 24S LiPo |
| Rated power | 3,550 W |
| Peak current | 180 A for 120 seconds |
| Idle current | 3.5 A at 10 V |
| Internal resistance | 17 mOhm |
| Configuration | 36N42P |
| Motor dimensions | 151.5 mm diameter x 96 mm high |
| Shaft diameter | 25 mm |
| Weight | 4,408 g including cable |
| Lead | 200 mm enameled wire |
Compatibility and integration

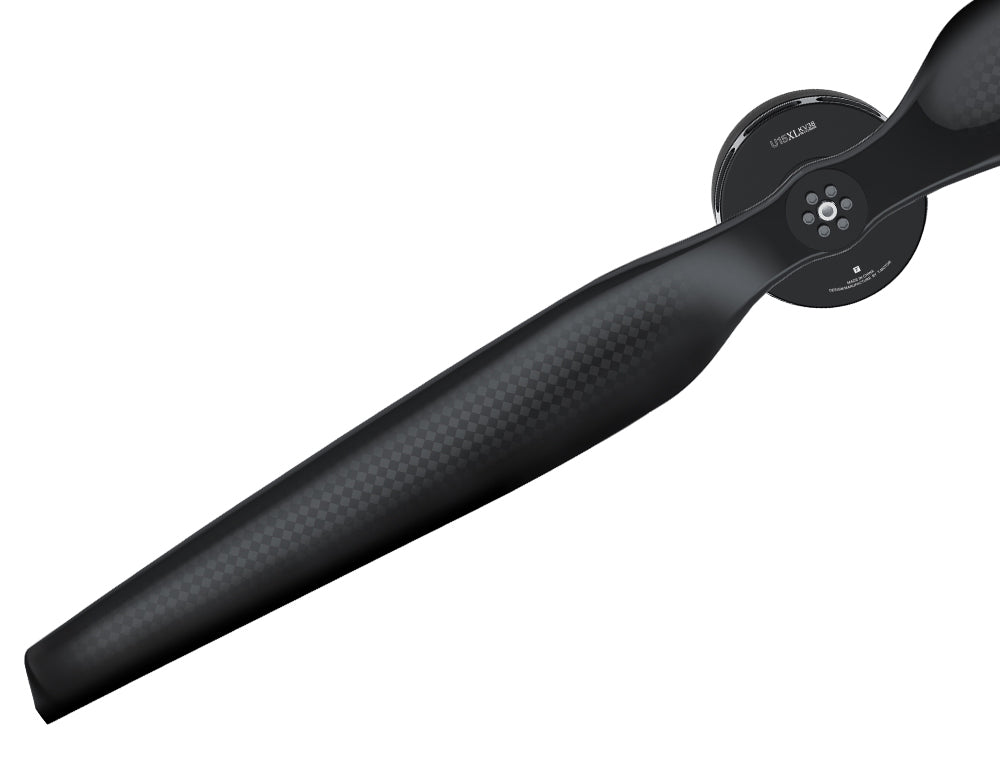

T-MOTOR publishes test data with the NS52 x 20 propeller and separately offers matched 24S propulsion components. The propeller, ESC, battery, controls and airframe must be selected and validated as a complete system.
In the box
- 1 x T-MOTOR U15XL KV38 motor
Not included: propeller, ESC, battery, controls, airframe or complete propulsion kit.
Safety
For qualified professional integration only. The purchaser and integrator are responsible for propulsion-system validation, redundancy, airworthiness, regulatory approval and safe operation. This motor listing is not a certified aircraft or complete propulsion system.
