U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65
  • U13II Power Type Multirotor UAV Motor KV65

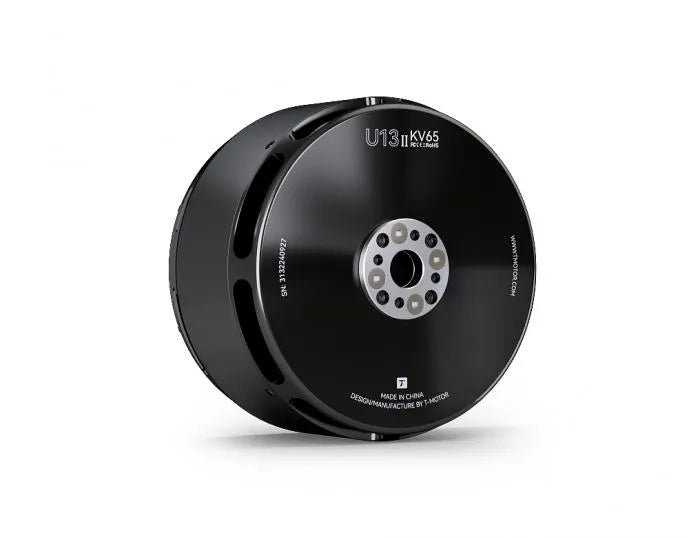

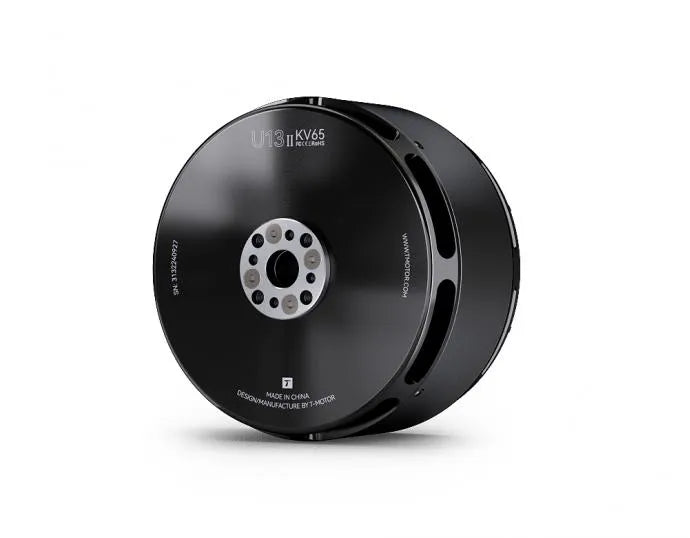

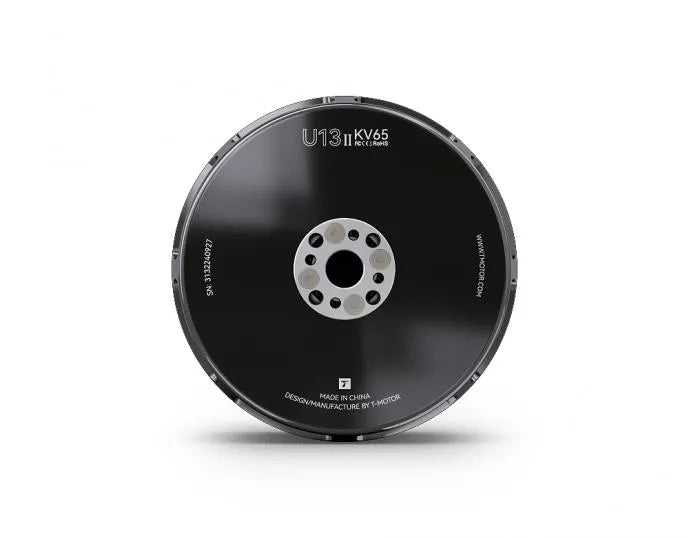

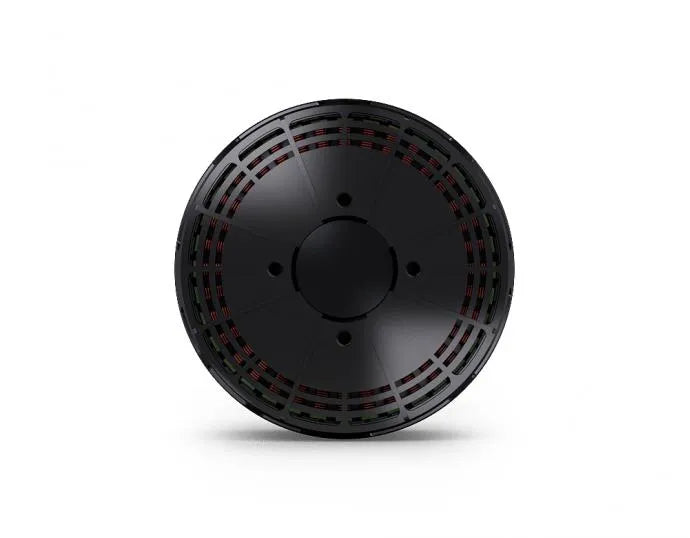

T-MOTOR U13II U Power Heavy-Lift UAV Motor

T-MOTOR U13II U Power Heavy-Lift UAV Motor

$899.00
KV

Matched propulsion components

Choose one verified propeller and/or ESC for the selected KV. Items are sold separately.

Selected components use the same quantity as the motor. Check each linked product page for package contents.

U Power series. U Power models prioritize thrust and heavy-load capability for demanding professional multirotor applications.

A heavy-lift U Power family offered in high-voltage KV65 and 10-14S KV130 configurations with separate official electrical limits.

Key Features

  • Exact official model and option matrix verified against T-MOTOR.
  • Official specifications and performance data are retained for each configuration.
  • Motor dimensions: 100 x 60 mm; shaft: 15 mm.
  • Recommended system matching: T-MOTOR G30 x 10.5 or G32 x 11 carbon-fibre propeller according to the exact-KV chart.
  • Propeller, ESC, battery, controller, mount, airframe, and pictured accessories are sold separately unless explicitly listed below.

Configuration Specifications

Configuration Manufacturer SKU Weight incl. cable Rated voltage Resistance Current limit Max/rated power Sourced max thrust
KV65 AWD06010015 975 g 22-25S LiPo 73 mOhm 68 A (180 s) 6,720 W 28.7 kg sourced page claim
KV130 AWD06010028 990 g 10-14S LiPo 18 mOhm 118 A (180 s) 5,659 W 24.3 kg with G32 x 11 at sourced test point

Performance Data

Official T-MOTOR test reports and performance charts are presented in the dedicated Technical Data section when the manufacturer publishes them as durable image assets. Use the exact configuration, voltage, propeller, and test conditions shown; do not extrapolate one KV configuration to another.

In the Box

  • 1 x T-MOTOR motor in the selected configuration
  • 1 x manufacturer hardware pack shown in official package-contents media

Integration and Safety

Confirm propeller, ESC, battery voltage, current headroom, mounting, cooling, control, airframe load, and local operating requirements before use. Performance values are manufacturer bench-test data, not a guarantee for a completed aircraft.

U Power

Specifications and technical data

Official model-specific reference material
Selected configuration

KV65

Manufacturer SKU AWD06010015

KV KV65
Rated voltage 22-25S LiPo
Weight including cable 975 g
Internal resistance 73 mOhm
Maximum current 68 A (180 s)
Maximum or rated power 6,720 W
Maximum thrust evidence 28.7 kg sourced page claim
Motor dimensions 100 x 60 mm
Shaft diameter 15 mm
01

Performance data

T-MOTOR U13II U Power Heavy-Lift UAV Motor - official product detail 7
T-MOTOR U13II U Power Heavy-Lift UAV Motor - KV65 official test report
02

Dimensions

T-MOTOR U13II U Power Heavy-Lift UAV Motor - official product drawing
03

Manufacturer reference

T-MOTOR U13II U Power Heavy-Lift UAV Motor - official product detail 8
T-MOTOR U13II U Power Heavy-Lift UAV Motor - official product detail 9
T-MOTOR U13II U Power Heavy-Lift UAV Motor - KV65 and KV130 official specifications
