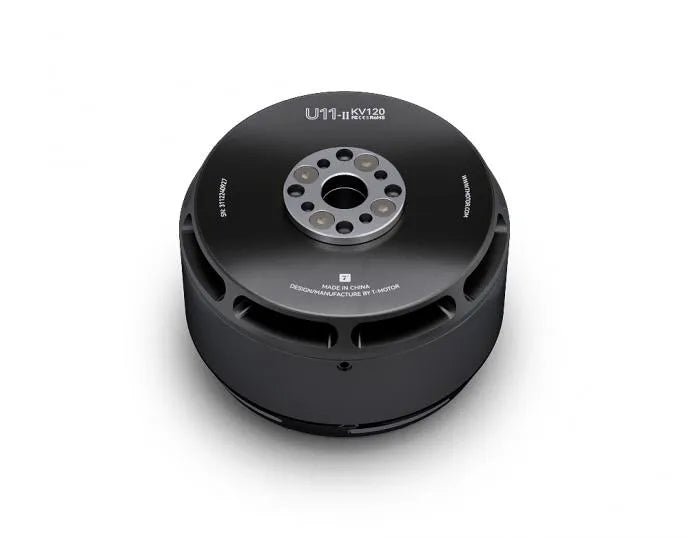

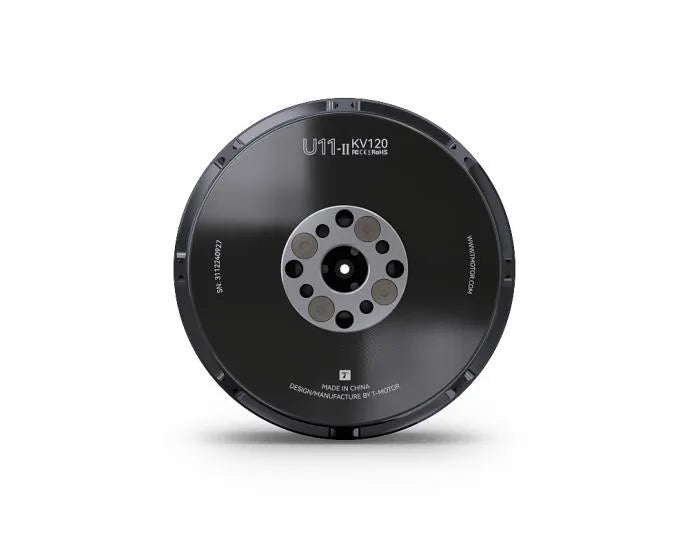

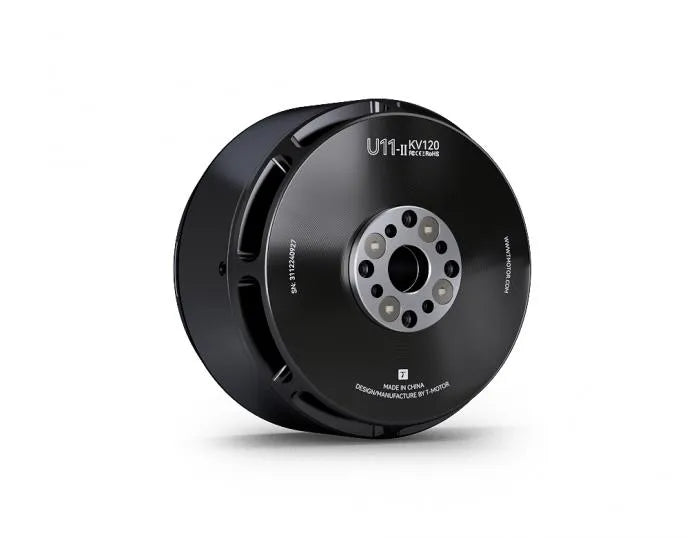

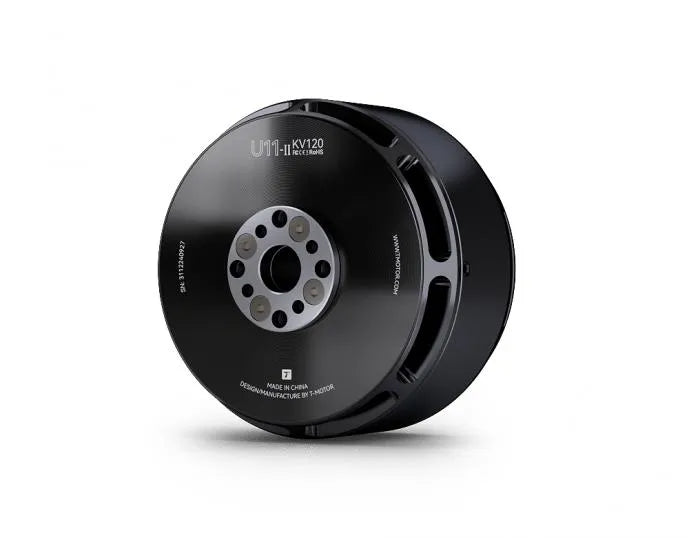

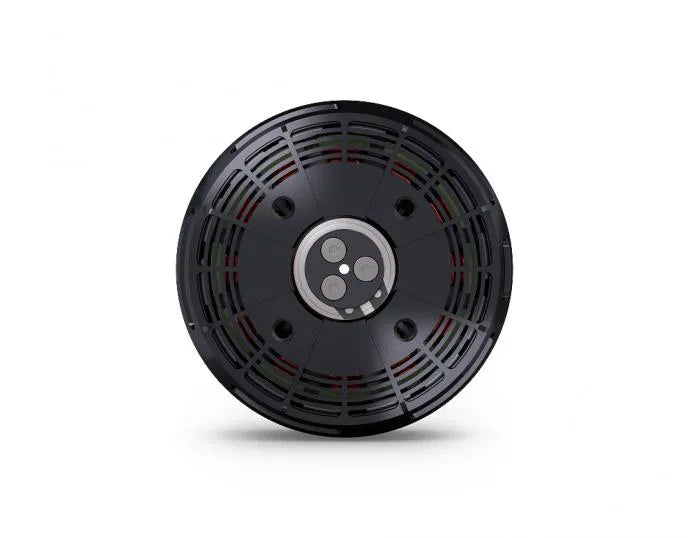

T-MOTOR U11II KV120 Heavy-Lift UAV Motor

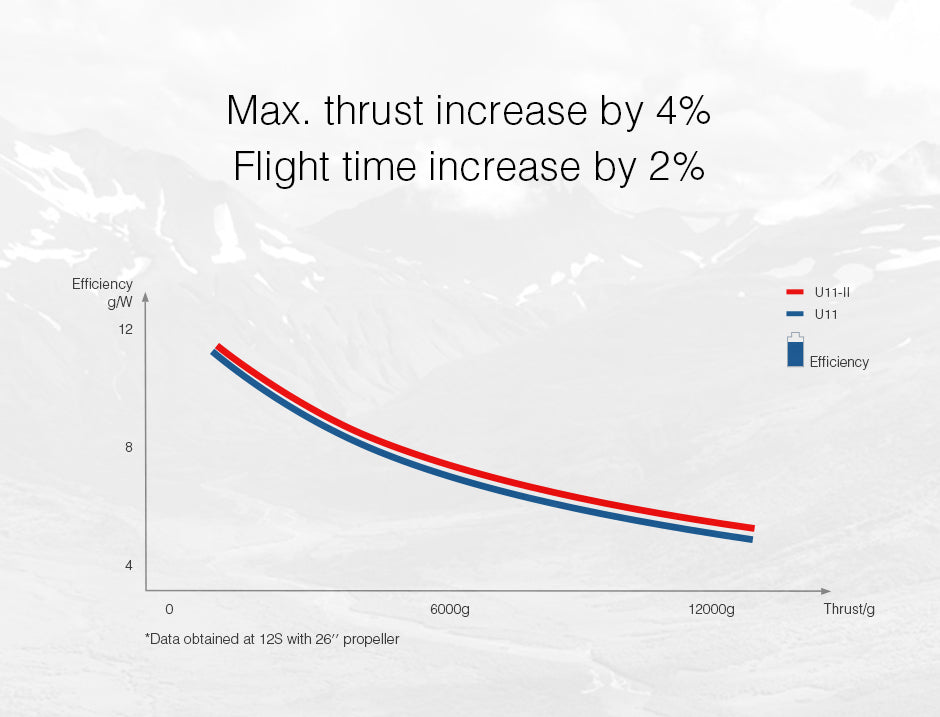

The T-MOTOR U11II KV120 is a 12S heavy-lift multirotor motor for industrial UAV applications. Official manufacturer test data reaches up to approximately 14.16 kg of thrust with supported propeller configurations.
Key features
- KV120 winding for 12S LiPo heavy-lift multirotor systems
- Up to approximately 14.16 kg maximum thrust under manufacturer test conditions
- 2,783 W maximum power and 57.3 A peak current for 180 seconds

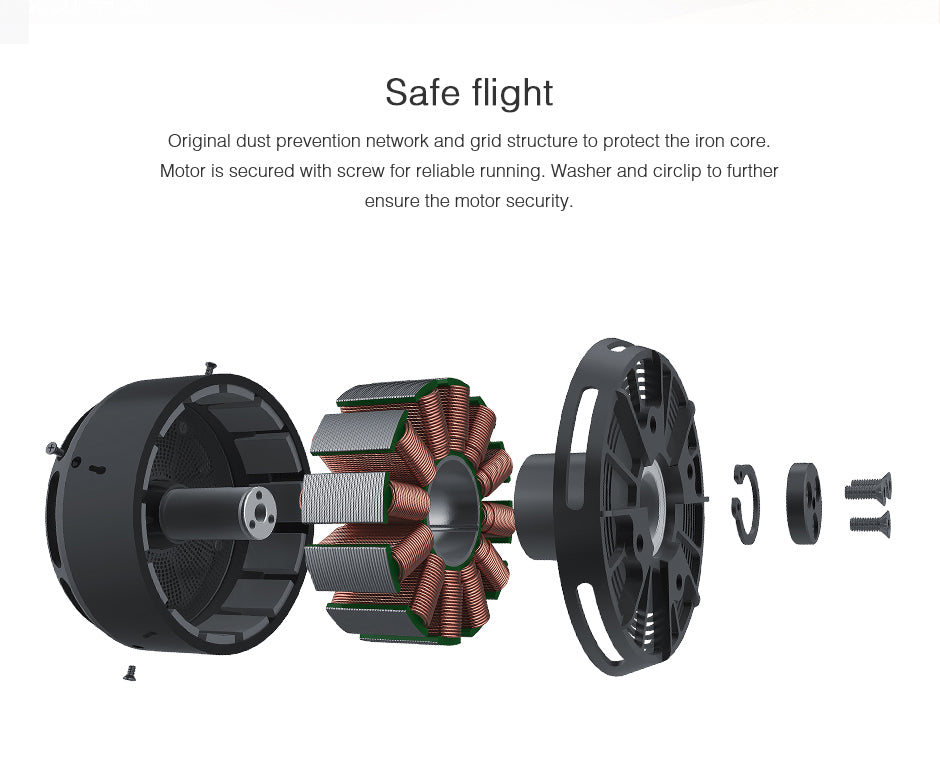

- Manufacturer-described waterproof, dust-resistant and low-noise construction
- Manufacturer-stated mean time between failures of approximately 1,000 hours
Specifications
| Manufacturer SKU | T-MOTOR000768 |
|---|---|
| KV rating | KV120 |
| Rated voltage | 12S LiPo |
| Maximum power | 2,783 W |
| Peak current | 57.3 A for 180 seconds |
| Idle current | 1.5 A at 18 V |
| Internal resistance | 80 +/- 5 mOhm |
| Configuration | 12N14P |
| Motor dimensions | 79.5 mm diameter x 51.6 mm high |
| Shaft diameter | 15 mm |
| Weight | 772 g including cable |
| Lead | AWG 14, 1,250 mm, no connector |
Compatibility and integration

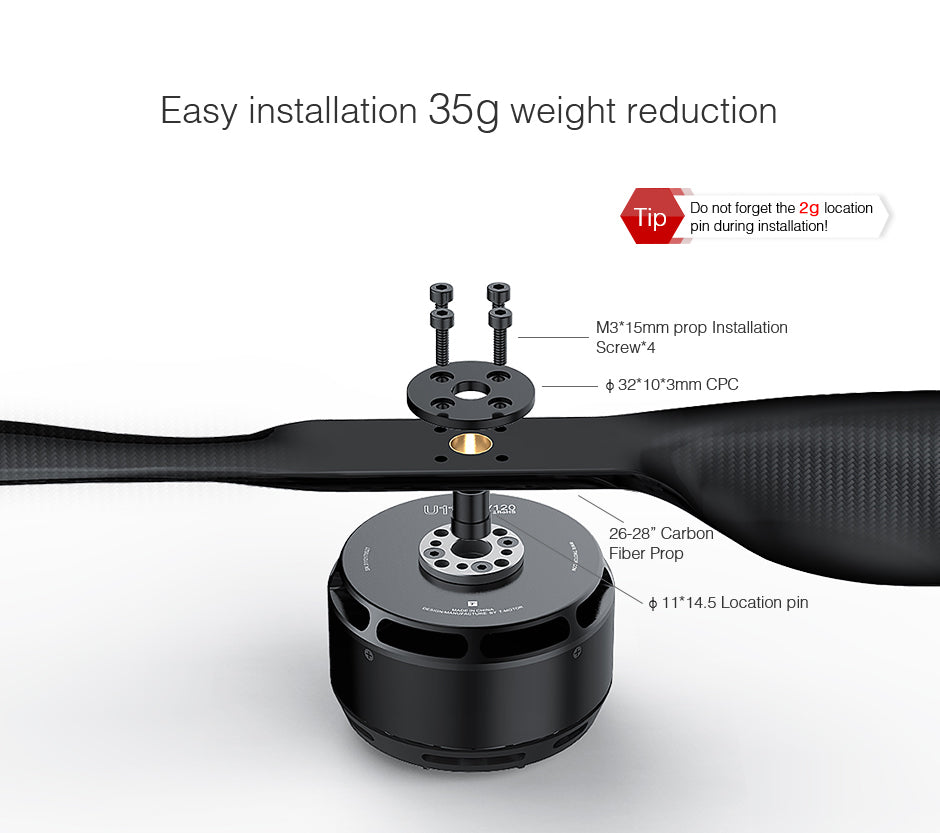

T-MOTOR lists its CF27 x 8.8 propeller as a matching component and shows the FLAME 80A 12S V2.0 ESC as a related component. Select the complete propulsion system from the manufacturer's test data for the aircraft's required loading and operating envelope.
In the box
- 1 x T-MOTOR U11II KV120 motor
- 1 x hardware pack
Sold separately: propeller, ESC, battery and airframe.
Safety
Professional UAV component. The integrator is responsible for system compatibility, secure installation, propeller balance, thermal limits, airworthiness and compliance with applicable regulations. Inspect the propulsion system before every operation.
