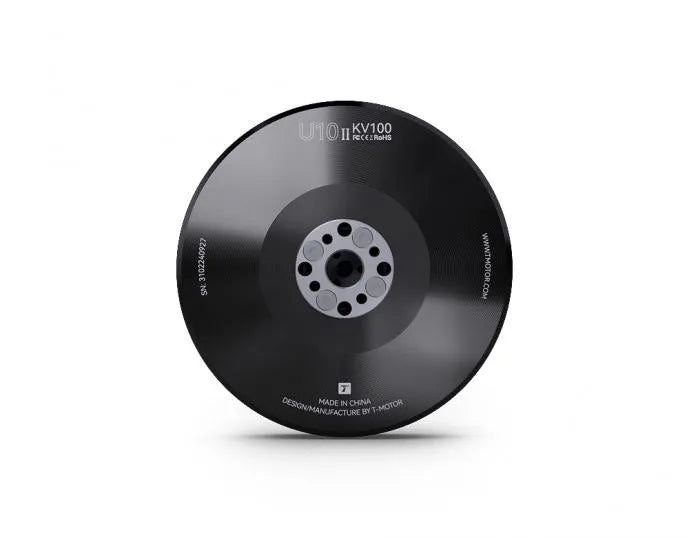

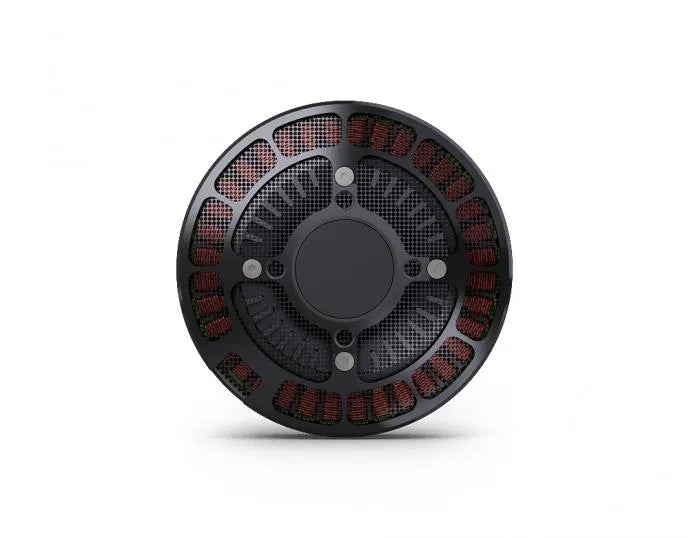

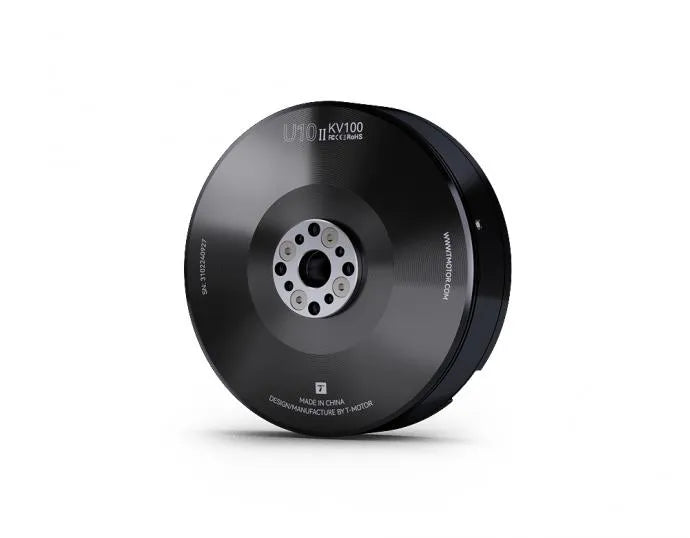

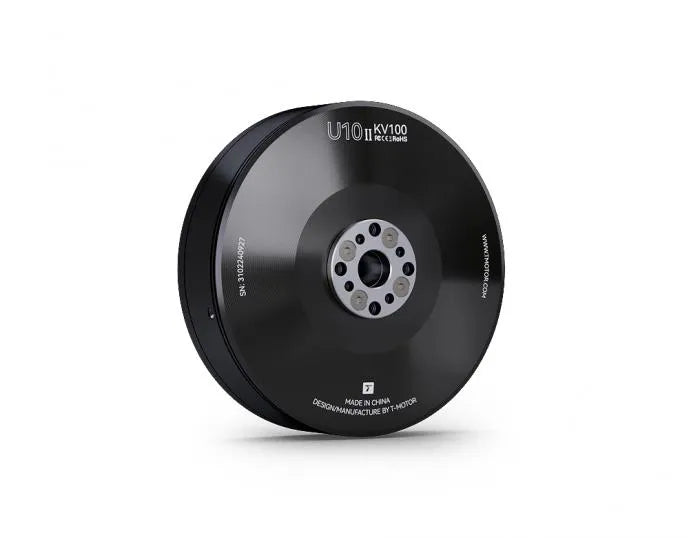

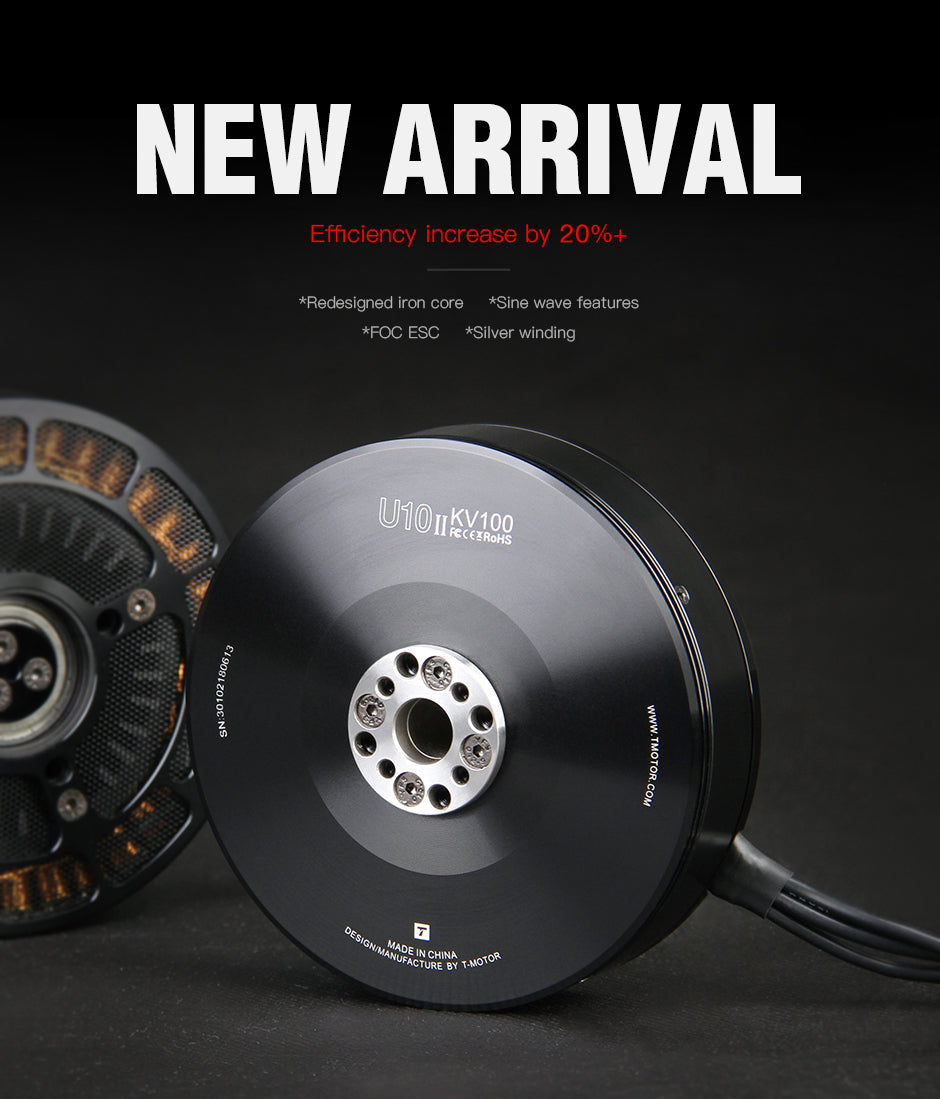

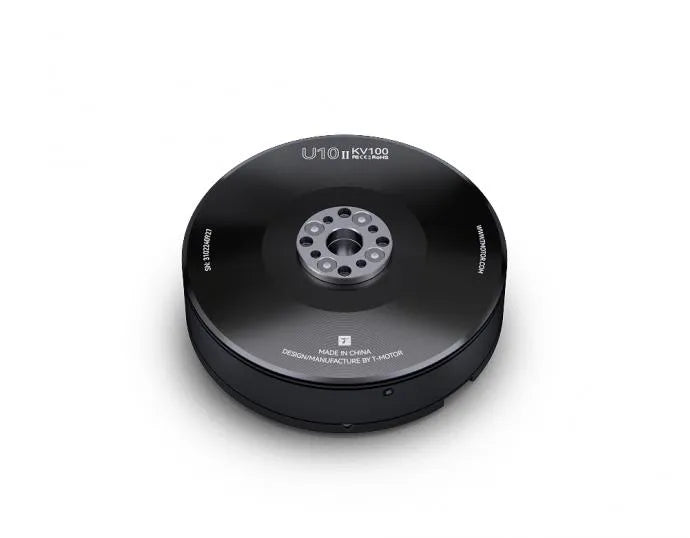

T-MOTOR U10II KV100 Industrial UAV Motor
$749.00
The T-MOTOR U10II KV100 is a 12S industrial multirotor motor designed for efficient UAV platforms. Manufacturer test data reaches up to 10.6 kg of thrust with supported propeller and voltage combinations.
Key features
- KV100 winding for 12S LiPo multirotor systems

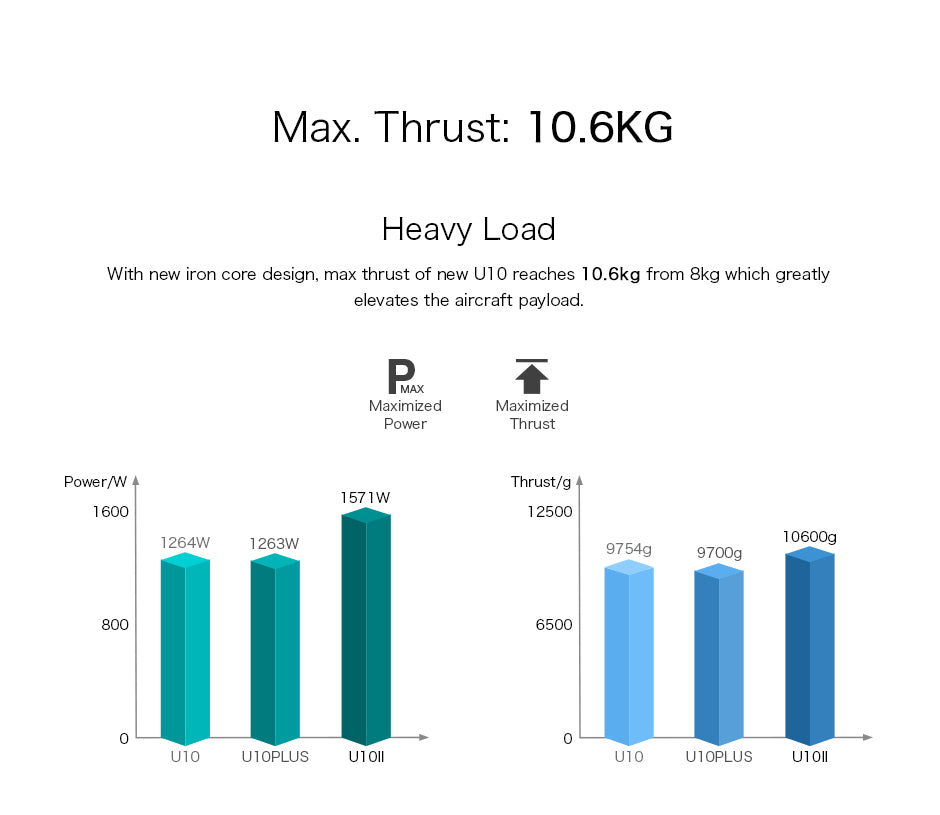

- Up to 10.6 kg maximum thrust under manufacturer test conditions
- 1,600 W maximum power and 32.4 A peak current, each rated for 180 seconds

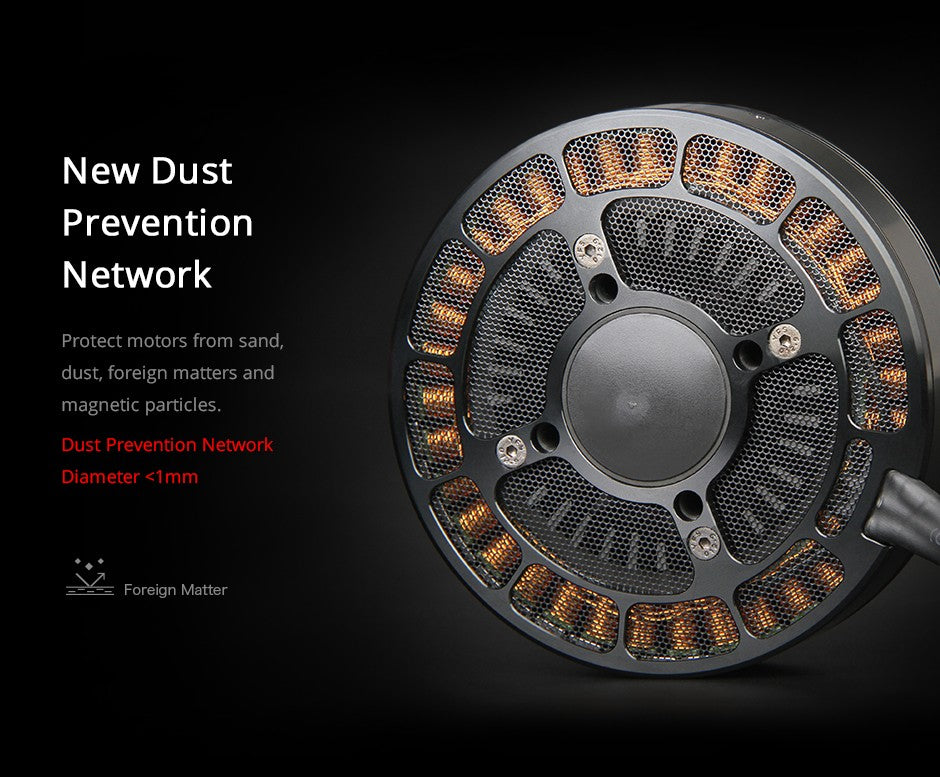

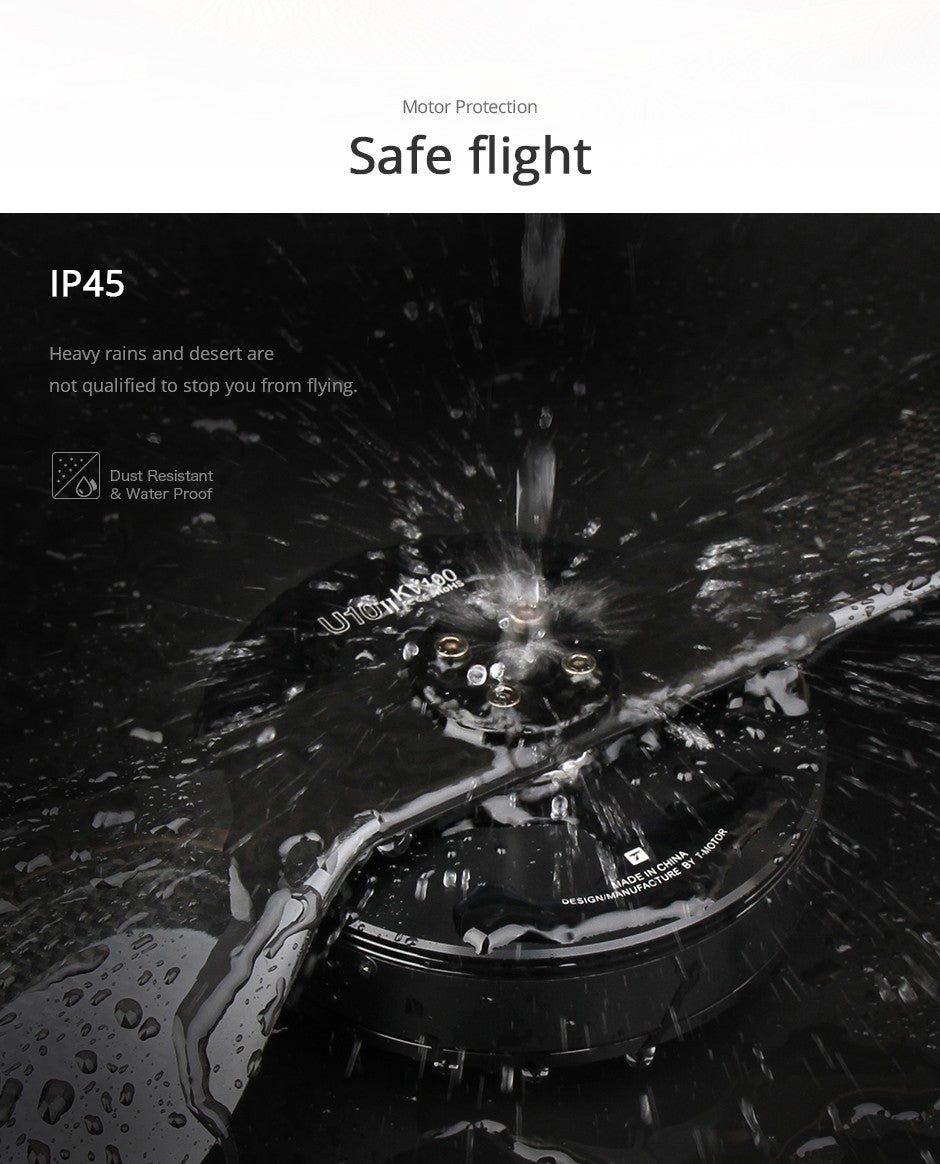

- IP45 ingress-protection rating
- 415 g motor including cable, with a compact 98.6 x 33.1 mm body
Specifications
| Manufacturer SKU | AWD06010117 |
|---|---|
| KV rating | KV100 |
| Rated voltage | 12S LiPo |
| Maximum power | 1,600 W for 180 seconds |
| Peak current | 32.4 A for 180 seconds |
| Idle current | 1 A at 18 V |
| Internal resistance | 101 +/- 5 mOhm |
| Configuration | 36N42P |
| Motor dimensions | 98.6 mm diameter x 33.1 mm high |
| Shaft diameter | 15 mm |
| Weight | 415 g including cable |
| Lead | AWG 16, 90 mm, no connector |
| Recommended propeller size | 28-30 in |
| Ingress protection | IP45 |
Compatibility and integration

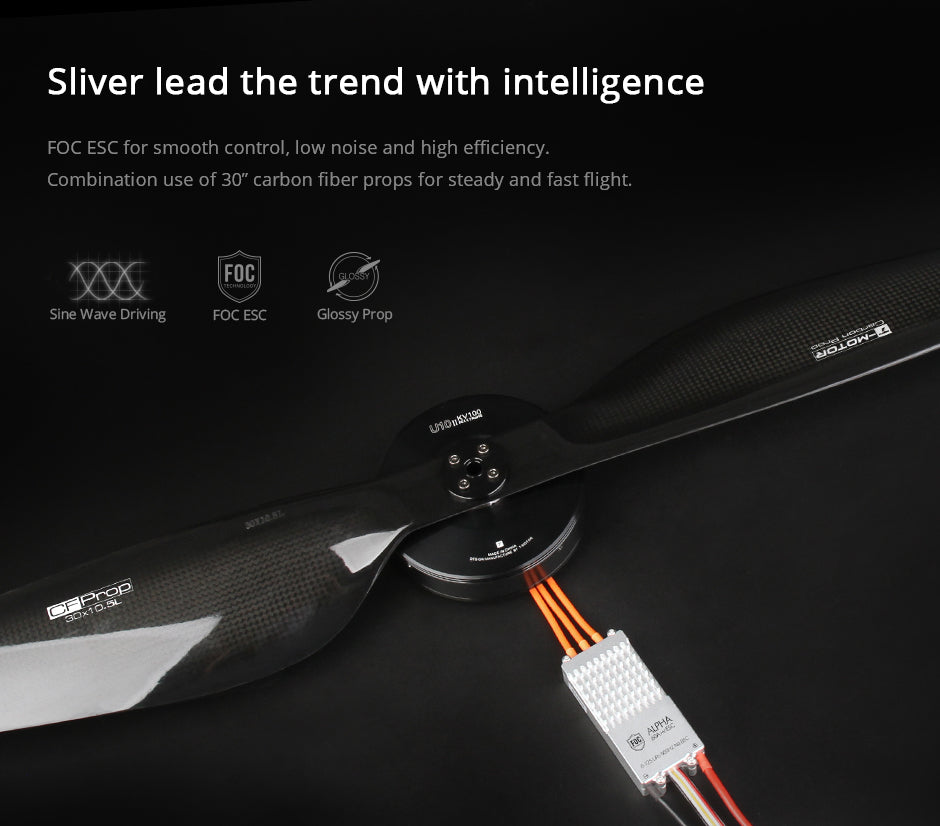

T-MOTOR lists the G30 x 10.5 carbon-fibre propeller and Alpha 60A 12S ESC as matching components. Select the propeller, ESC, battery and frame from the manufacturer's test data for the aircraft's required loading and operating envelope.
In the box
- 1 x T-MOTOR U10II KV100 motor
- 1 x hardware pack
Sold separately: propeller, ESC, battery and airframe.
Safety
Professional UAV component. The integrator is responsible for system compatibility, secure installation, propeller balance, thermal limits, airworthiness and compliance with applicable regulations. Inspect the propulsion system before every operation.
