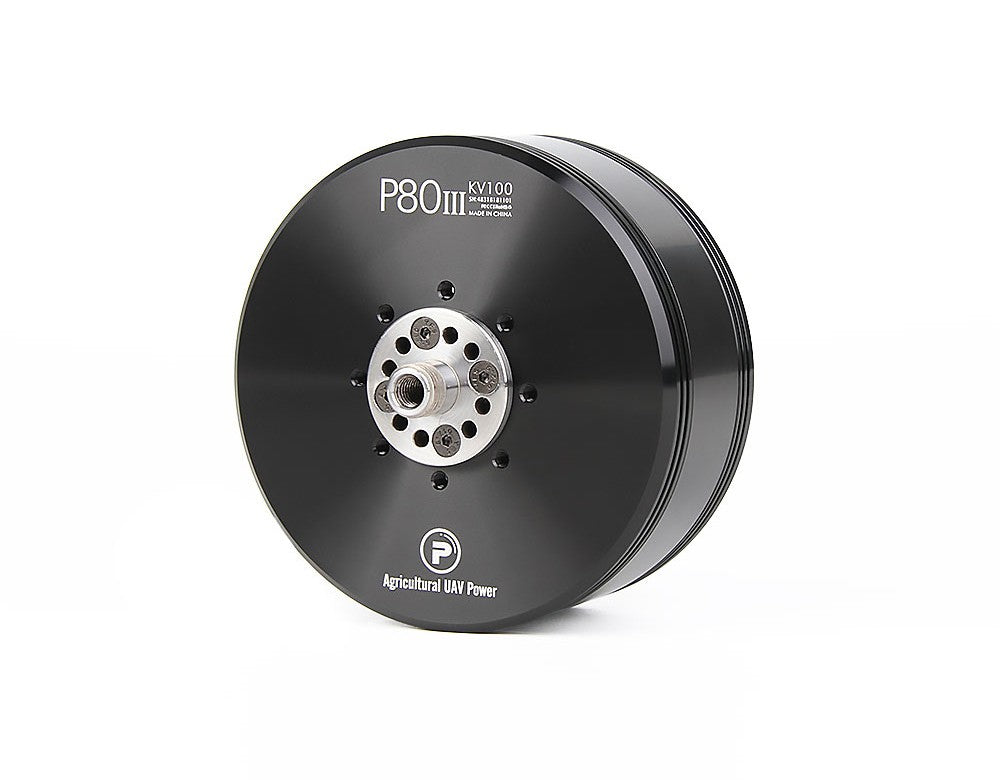

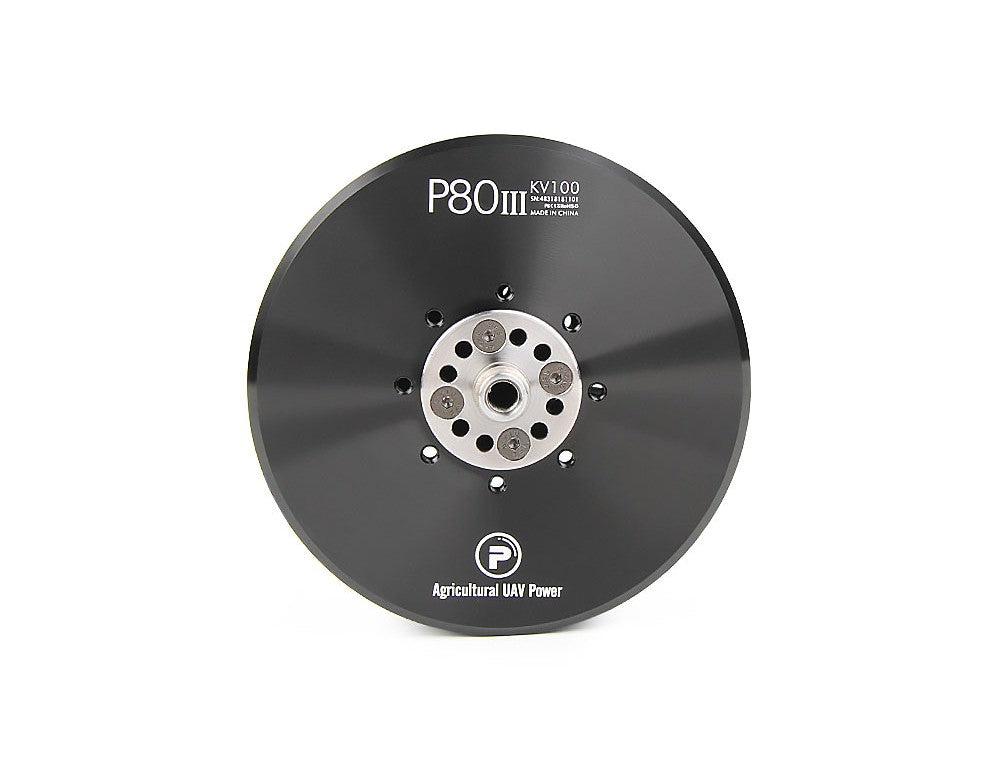

T-MOTOR P80III Without Pin Agricultural UAV Motor
$449.00
The P80III Without Pin is an official T-MOTOR P Type motor for agricultural multirotor uav applications. Select the exact KV and configuration using the manufacturer data for the complete propulsion system.
Key Features
- P Type motors are designed for agricultural multirotor propulsion systems, with exact pin configuration and KV selection documented per model.
- Maximum thrust: 17KG@12S.
- Motor weight including cable: 649 g.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
- Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV100 | AWD09010065 | One motor |
| KV120 | AWD09010063 | One motor |
Technical Specifications
KV100
| Manufacturer identifier | AWD09010065 |
|---|---|
| Series | P Type |
| KV rating | KV100 |
| Maximum thrust | 17KG@12S |
| Maximum power (180 s) | 2700W |
| Idle current at 10 V | ≤2.0A |
| Internal resistance | 45-51mΩ |
| Motor dimensions | Φ91.6*43mm |
| Shaft diameter | 15mm |
| Motor weight including cable | 649 g |
| Net weight | 650 g |
| Shipping weight | 920 g |
| Package dimensions | 181 x 125 x 70 mm |
KV120
| Manufacturer identifier | AWD09010063 |
|---|---|
| Series | P Type |
| KV rating | KV120 |
| Maximum thrust | 17KG@12S |
| Maximum power (180 s) | 3600W |
| Idle current at 10 V | 1.6A |
| Internal resistance | 45-51mΩ |
| Motor dimensions | Φ91.6*43mm |
| Shaft diameter | 15mm |
| Motor weight including cable | 649 g |
| Net weight | 650 g |
| Shipping weight | 920 g |
| Package dimensions | 181 x 125 x 70 mm |
What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
P Type
Specifications and technical data
Official model-specific reference material
Selected configuration
KV100
Manufacturer SKU AWD09010065
| Manufacturer identifier | AWD09010065 |
|---|---|
| Series | P Type |
| KV rating | KV100 |
| Maximum thrust | 17KG@12S |
| Maximum power (180 s) | 2700W |
| Idle current at 10 V | ≤2.0A |
| Internal resistance | 45-51mΩ |
| Motor dimensions | Φ91.6*43mm |
| Shaft diameter | 15mm |
| Motor weight including cable | 649 g |
| Net weight | 650 g |
| Shipping weight | 920 g |
| Package dimensions | 181 x 125 x 70 mm |
03
Manufacturer reference
Selected configuration
KV120
Manufacturer SKU AWD09010063
| Manufacturer identifier | AWD09010063 |
|---|---|
| Series | P Type |
| KV rating | KV120 |
| Maximum thrust | 17KG@12S |
| Maximum power (180 s) | 3600W |
| Idle current at 10 V | 1.6A |
| Internal resistance | 45-51mΩ |
| Motor dimensions | Φ91.6*43mm |
| Shaft diameter | 15mm |
| Motor weight including cable | 649 g |
| Net weight | 650 g |
| Shipping weight | 920 g |
| Package dimensions | 181 x 125 x 70 mm |
03
Manufacturer reference
