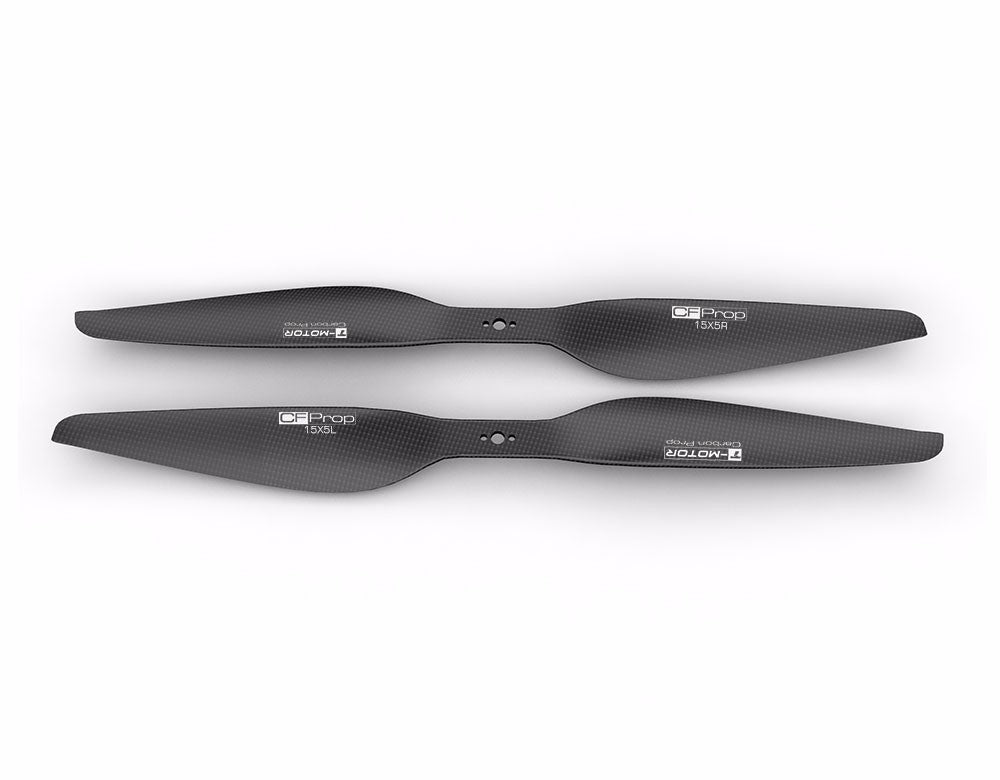

T-MOTOR P15x5 Polished Carbon Fiber Propeller - official product view

T-MOTOR P15x5 Polished Carbon Fiber Propeller

$129.00

The P15x5 Polished Carbon Fiber is an official T-MOTOR Polished Carbon Fiber propeller for multirotor uav applications. Select only the exact manufacturer configuration that matches the motor, KV, voltage, mounting, and official test data for the aircraft.

Key Features

  • Polished carbon-fiber propeller for professional multirotor UAV applications.
  • Exact manufacturer SKU and configuration are shown for every selectable option.
  • Official size reference: 15*5(381*127 mm).
  • Manufacturer-listed material: Carbon fiber and epoxy.
  • Manufacturer operating reference: 6 kg; verify the complete source table before use.

Configurations

Configuration Manufacturer SKU Package reference
Pair CW+CCW AZP02010003 Pair CW+CCW

Technical Specifications

Manufacturer SKU AZP02010003
Series Polished Carbon Fiber
Configuration Pair CW+CCW
Official model 15*5(381*127 mm)
Material Carbon fiber and epoxy
Surface treatment Polished
Single-blade weight 21±1.5 g
Thrust limit 6 kg
Optimum RPM 5200~7000 RPM/min
Net weight 21 g/pc
Shipping weight 200 g
Package dimensions 390*75*35

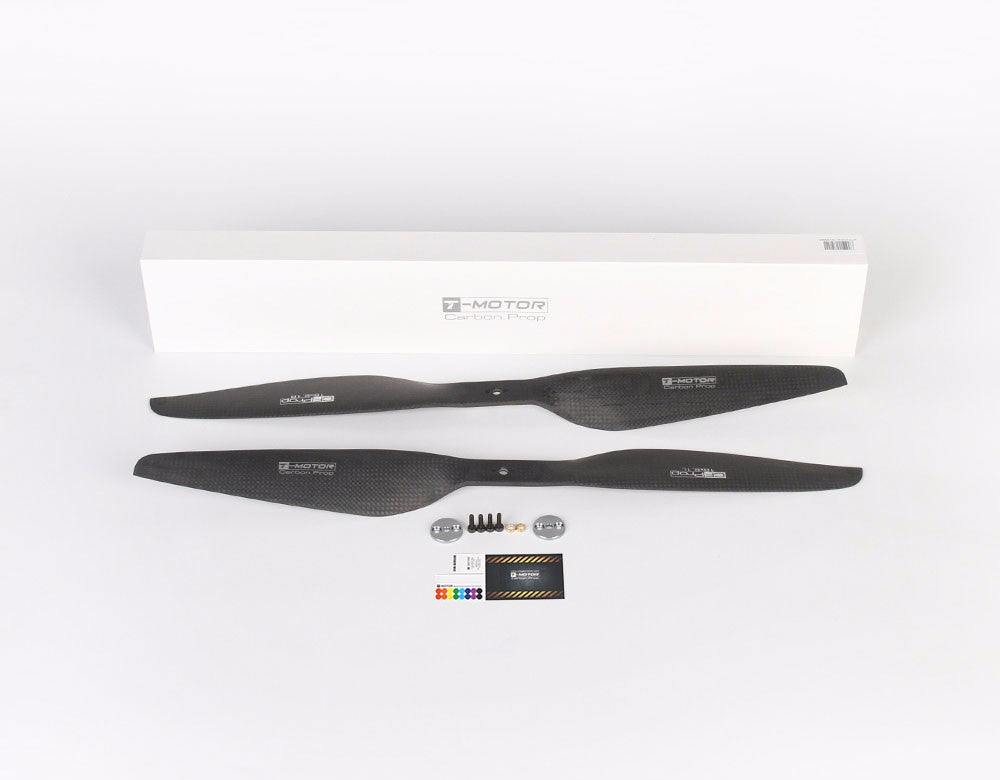

What's Included

The selected T-MOTOR manufacturer configuration shown above. No motor, ESC, hub, adapter, battery, airframe, or other system component is included unless it is explicitly named in the selected configuration or official packing list.

Compatibility and Safety

Propeller suitability is configuration-specific. Confirm motor model and KV, battery voltage, ESC limits, mounting interface, direction, operating RPM, thrust limits, clearances, fastener requirements, and the exact official test conditions before installation. Inspect the propeller before every flight and do not operate a damaged or improperly mounted propeller.

Polished Carbon Fiber

Specifications and technical data

Official model-specific reference material
Selected configuration

Pair CW+CCW

Manufacturer SKU AZP02010003

T-MOTOR P15x5 Polished Carbon Fiber Propeller Pair CW+CCW specifications
Manufacturer SKU AZP02010003
Series Polished Carbon Fiber
Configuration Pair CW+CCW
Official model 15*5(381*127 mm)
Material Carbon fiber and epoxy
Surface treatment Polished
Single-blade weight 21±1.5 g
Thrust limit 6 kg
Optimum RPM 5200~7000 RPM/min
Net weight 21 g/pc
Shipping weight 200 g
Package dimensions 390*75*35
02

Dimensions

T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 1
T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 1
T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 2
T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 2
T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 3
T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 3
T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 4
T-MOTOR P15x5 Polished Carbon Fiber Propeller - official dimensions or specification diagram 4
