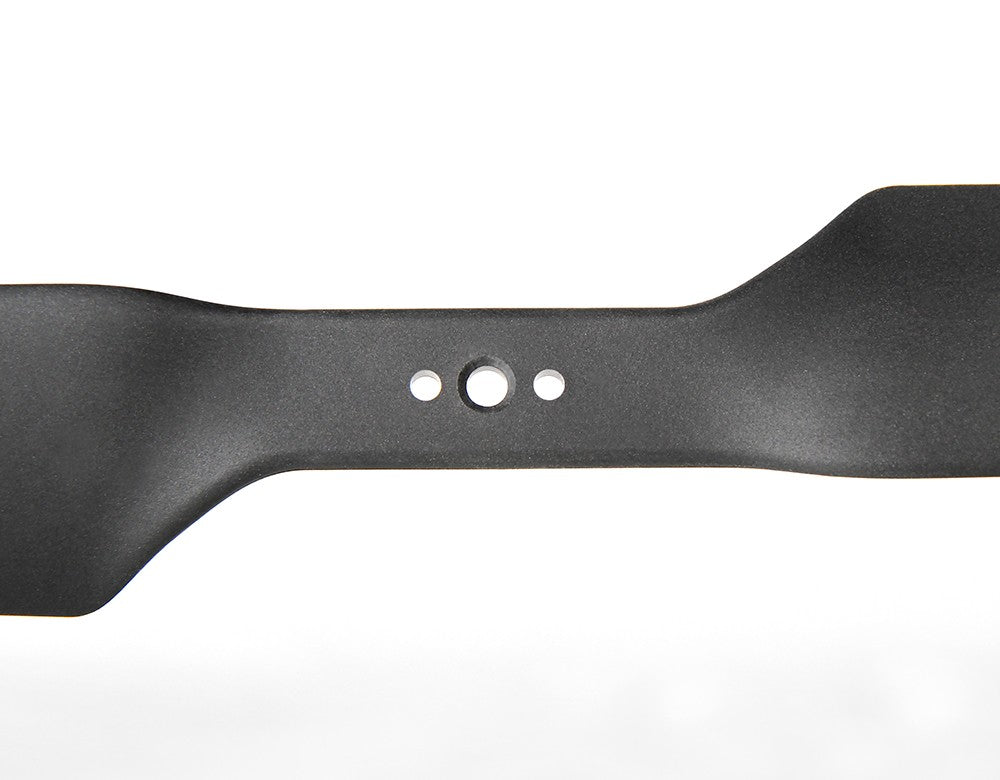

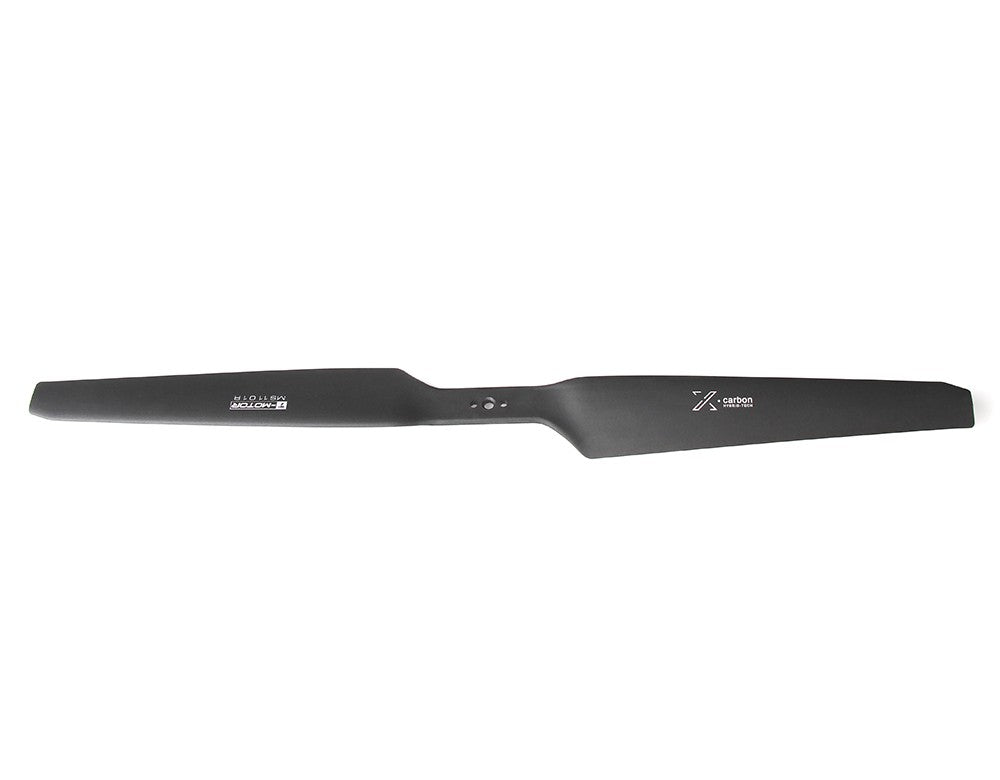

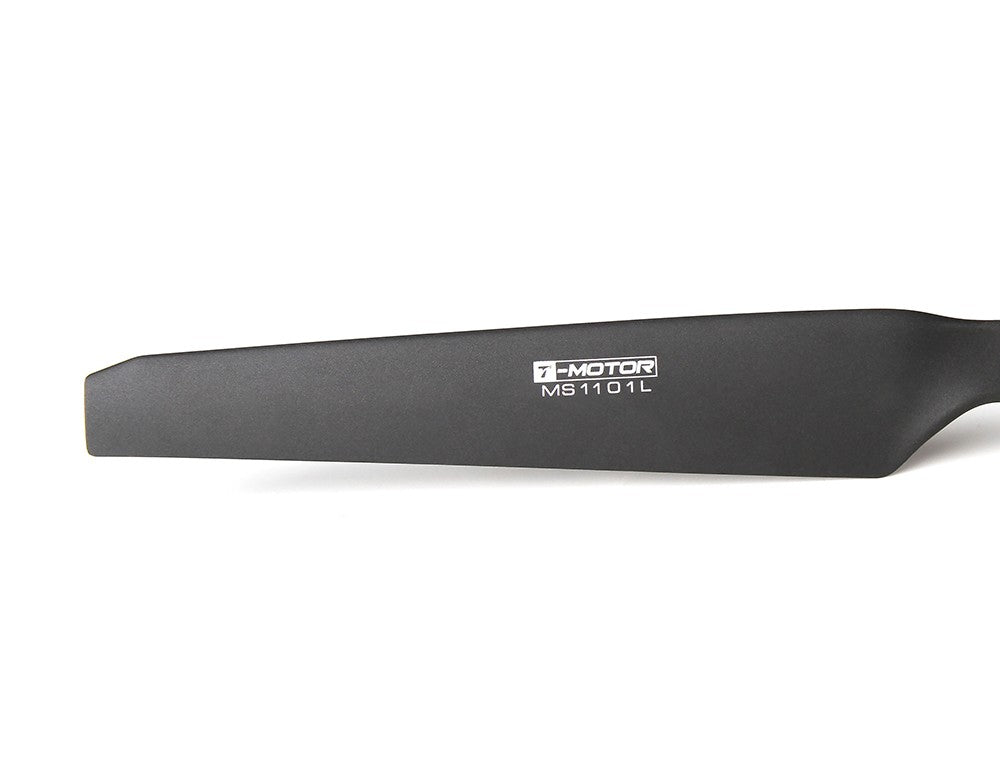

T-MOTOR MS1101 Polymer Propeller
The MS1101 Polymer is an official T-MOTOR MS Polymer propeller for multirotor uav applications. Select only the exact manufacturer configuration that matches the motor, KV, voltage, mounting, and official test data for the aircraft.
Key Features
- MS Series polymer propeller for professional multirotor UAV applications.
- Exact manufacturer SKU and configuration are shown for every selectable option.
- Official size reference: 11 inch(Measured Diameter:280.3 mm).
- Manufacturer-listed material: Polymer and carbon fiber.
- Motor, ESC, hub, adapter, battery, and other pictured system components are sold separately unless explicitly named in the selected configuration.
Configurations
| Configuration | Manufacturer SKU | Package reference |
|---|---|---|

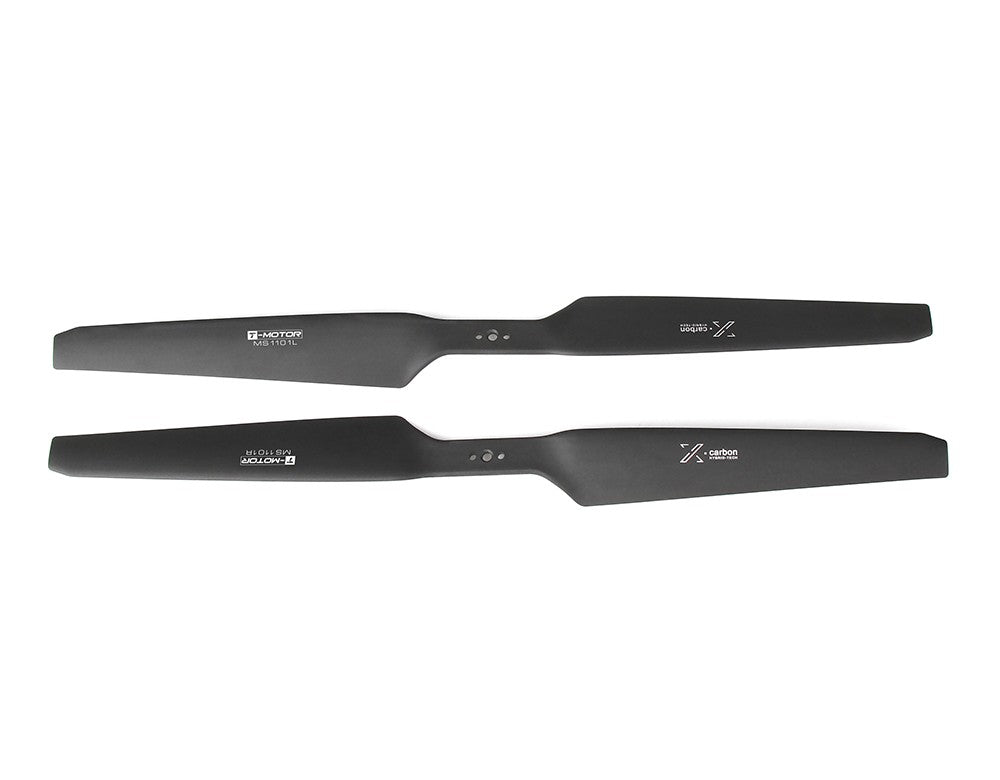

| Pair CW+CCW | AWL02010010 | Pair CW+CCW |
Technical Specifications
| Manufacturer SKU | AWL02010010 |
|---|---|
| Series | MS Polymer |
| Configuration | Pair CW+CCW |
| Official model | MS1101 |
| Diameter | 11 inch(Measured Diameter:280.3 mm) |
| Pitch | 4.2 inch(106.68 mm) |
| Material | Polymer and carbon fiber |
| Single-blade weight | 10 g |
| Net weight | 10 g/pc |
| Shipping weight | 82 g |
| Package dimensions | 317*41*37 |
What's Included
The selected T-MOTOR manufacturer configuration shown above. No motor, ESC, hub, adapter, battery, airframe, or other system component is included unless it is explicitly named in the selected configuration or official packing list.
Compatibility and Safety
Propeller suitability is configuration-specific. Confirm motor model and KV, battery voltage, ESC limits, mounting interface, direction, operating RPM, thrust limits, clearances, fastener requirements, and the exact official test conditions before installation. Inspect the propeller before every flight and do not operate a damaged or improperly mounted propeller.
MS Polymer
Specifications and technical data
Official model-specific reference materialPair CW+CCW
Manufacturer SKU AWL02010010
| Manufacturer SKU | AWL02010010 |
|---|---|
| Series | MS Polymer |
| Configuration | Pair CW+CCW |
| Official model | MS1101 |
| Diameter | 11 inch(Measured Diameter:280.3 mm) |
| Pitch | 4.2 inch(106.68 mm) |
| Material | Polymer and carbon fiber |
| Single-blade weight | 10 g |
| Net weight | 10 g/pc |
| Shipping weight | 82 g |
| Package dimensions | 317*41*37 |
Dimensions
Manufacturer reference
