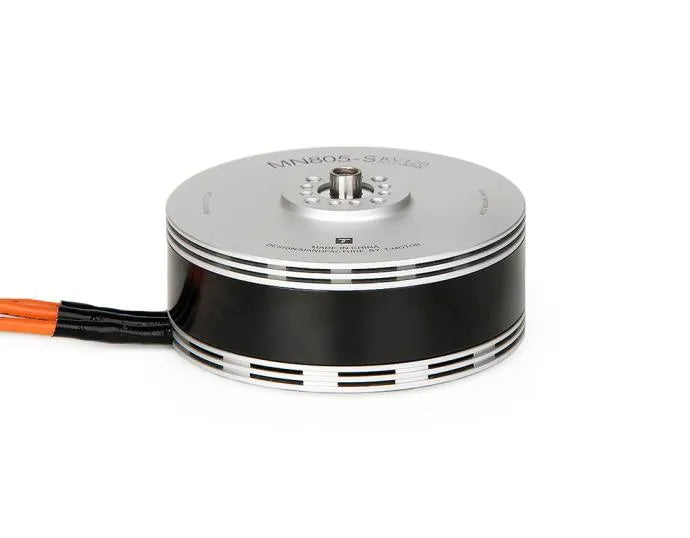

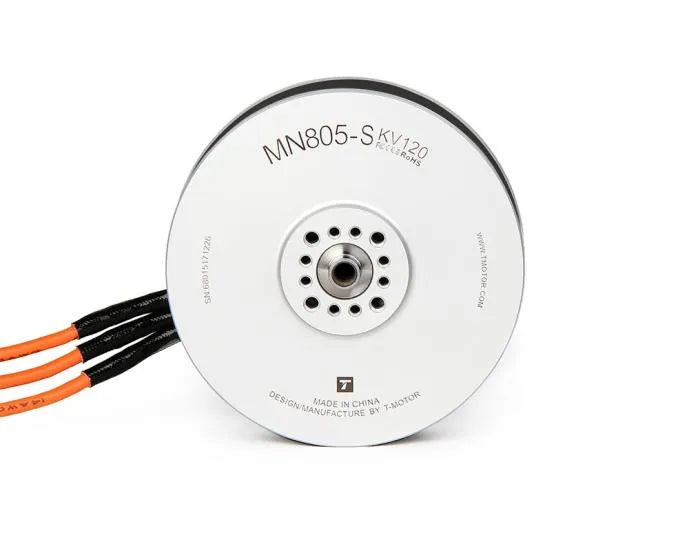

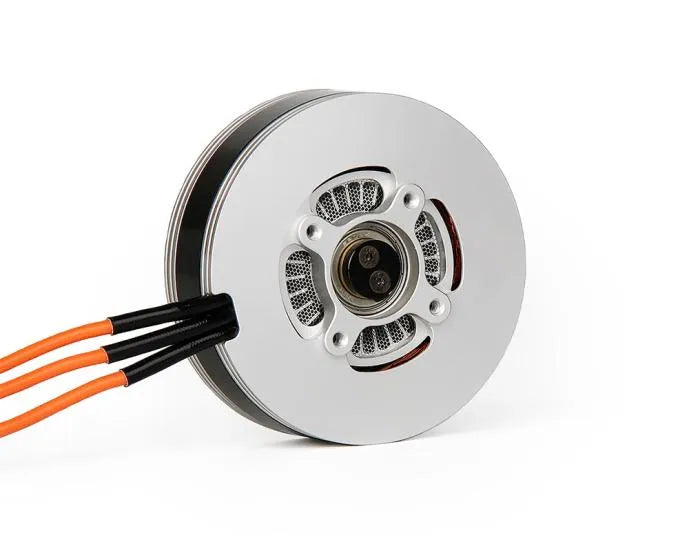

T-MOTOR MN805-S Navigator UAV Motor
$599.00
The MN805-S is an official T-MOTOR MN Navigator motor for professional multirotor and vtol uav applications. Select the exact KV and configuration using the manufacturer data for the complete propulsion system.
Key Features
- MN Navigator motors prioritize efficient, reliable propulsion for professional multirotor and VTOL aircraft.
- Maximum thrust: 16kg.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
- Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV120 | AWD01010045 | One motor |
| KV150 | AWD01010046 | One motor |
| KV170 | AWD01010047 | One motor |
Technical Specifications
KV120
| Manufacturer identifier | AWD01010045 |
|---|---|
| Series | MN Navigator |
| KV rating | KV120 |
| Recommended propeller | 30-32" |
| Maximum thrust | 16kg |
| Internal resistance | 48mΩ |
| Motor dimensions | Φ89*44.4mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:12mm,OUT:8mm |
| Bearing | Imported 6901ZZ |
| Magnet grade | 180°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 620 g |
| Net weight | 625 g |
| Shipping weight | 750 g |
| Package dimensions | 149 x 122.5 x 64 mm |
KV150
| Manufacturer identifier | AWD01010046 |
|---|---|
| Series | MN Navigator |
| KV rating | KV150 |
| Recommended propeller | 28-29" |
| Maximum thrust | 16kg |
| Internal resistance | 32mΩ |
| Motor dimensions | Φ89*44.4mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:12mm,OUT:8mm |
| Bearing | Imported 6901ZZ |
| Magnet grade | 180°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 620 g |
| Net weight | 625 g |
| Shipping weight | 750 g |
| Package dimensions | 149 x 122.5 x 64 mm |
KV170
| Manufacturer identifier | AWD01010047 |
|---|---|
| Series | MN Navigator |
| KV rating | KV170 |
| Recommended propeller | 28-29" |
| Maximum thrust | 16kg |
| Internal resistance | 28mΩ |
| Motor dimensions | Φ89*44.4mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:12mm,OUT:8mm |
| Bearing | Imported 6901ZZ |
| Magnet grade | 180°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 625 g |
| Net weight | 625 g |
| Shipping weight | 750 g |
| Package dimensions | 149 x 122.5 x 64 mm |

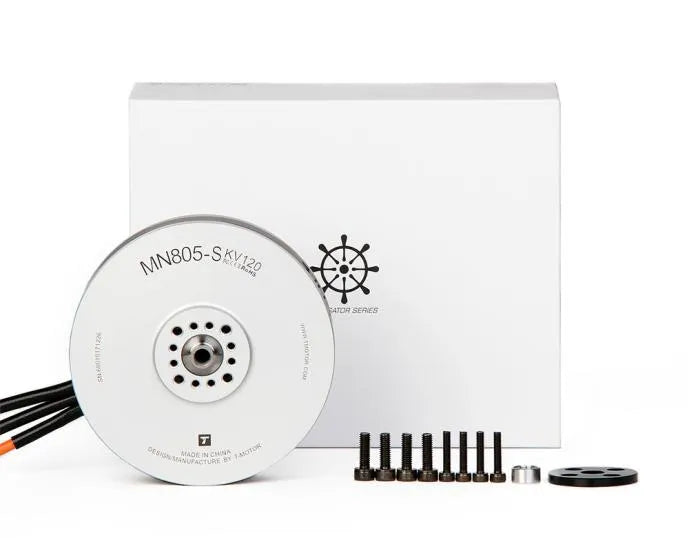

What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
MN Navigator
Specifications and technical data
Official model-specific reference material
Selected configuration
KV120
Manufacturer SKU AWD01010045
| Manufacturer identifier | AWD01010045 |
|---|---|
| Series | MN Navigator |
| KV rating | KV120 |
| Recommended propeller | 30-32" |
| Maximum thrust | 16kg |
| Internal resistance | 48mΩ |
| Motor dimensions | Φ89*44.4mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:12mm,OUT:8mm |
| Bearing | Imported 6901ZZ |
| Magnet grade | 180°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 620 g |
| Net weight | 625 g |
| Shipping weight | 750 g |
| Package dimensions | 149 x 122.5 x 64 mm |
03
Manufacturer reference
Selected configuration
KV150
Manufacturer SKU AWD01010046
| Manufacturer identifier | AWD01010046 |
|---|---|
| Series | MN Navigator |
| KV rating | KV150 |
| Recommended propeller | 28-29" |
| Maximum thrust | 16kg |
| Internal resistance | 32mΩ |
| Motor dimensions | Φ89*44.4mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:12mm,OUT:8mm |
| Bearing | Imported 6901ZZ |
| Magnet grade | 180°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 620 g |
| Net weight | 625 g |
| Shipping weight | 750 g |
| Package dimensions | 149 x 122.5 x 64 mm |
Selected configuration
KV170
Manufacturer SKU AWD01010047
| Manufacturer identifier | AWD01010047 |
|---|---|
| Series | MN Navigator |
| KV rating | KV170 |
| Recommended propeller | 28-29" |
| Maximum thrust | 16kg |
| Internal resistance | 28mΩ |
| Motor dimensions | Φ89*44.4mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:12mm,OUT:8mm |
| Bearing | Imported 6901ZZ |
| Magnet grade | 180°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 625 g |
| Net weight | 625 g |
| Shipping weight | 750 g |
| Package dimensions | 149 x 122.5 x 64 mm |
