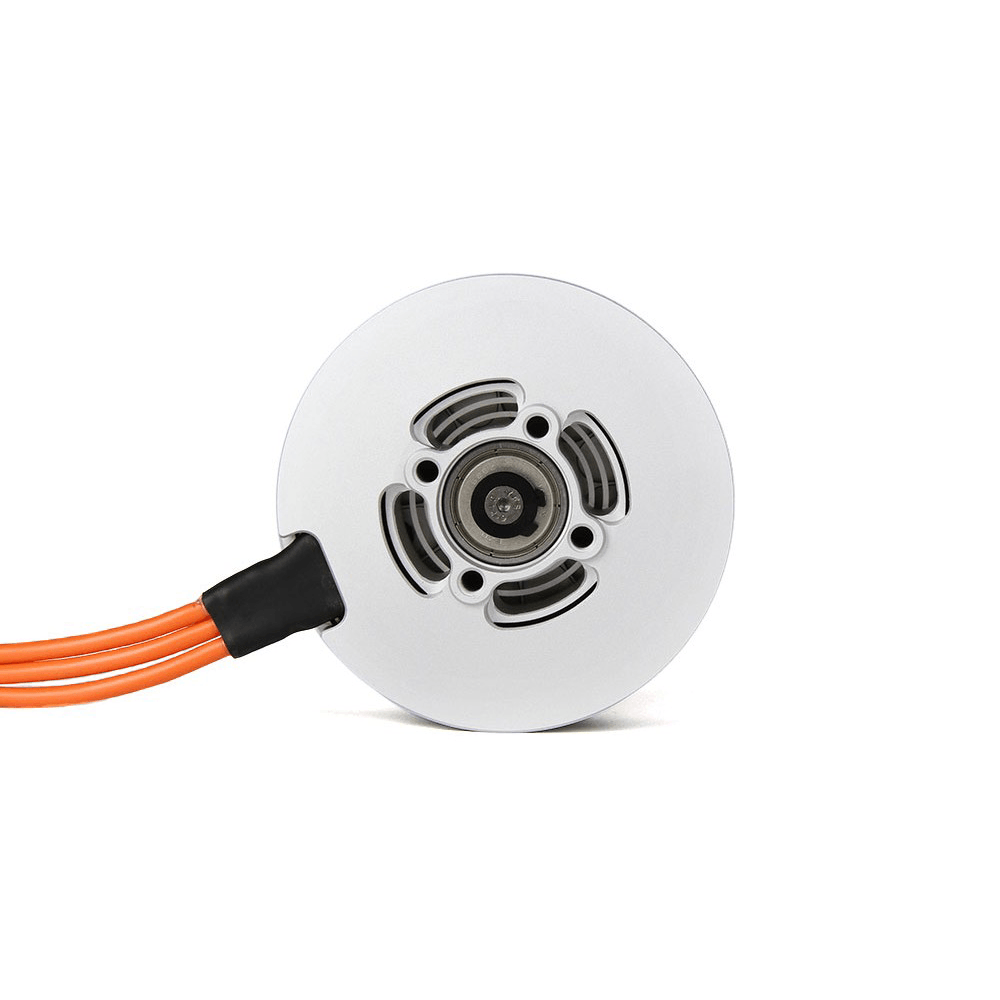

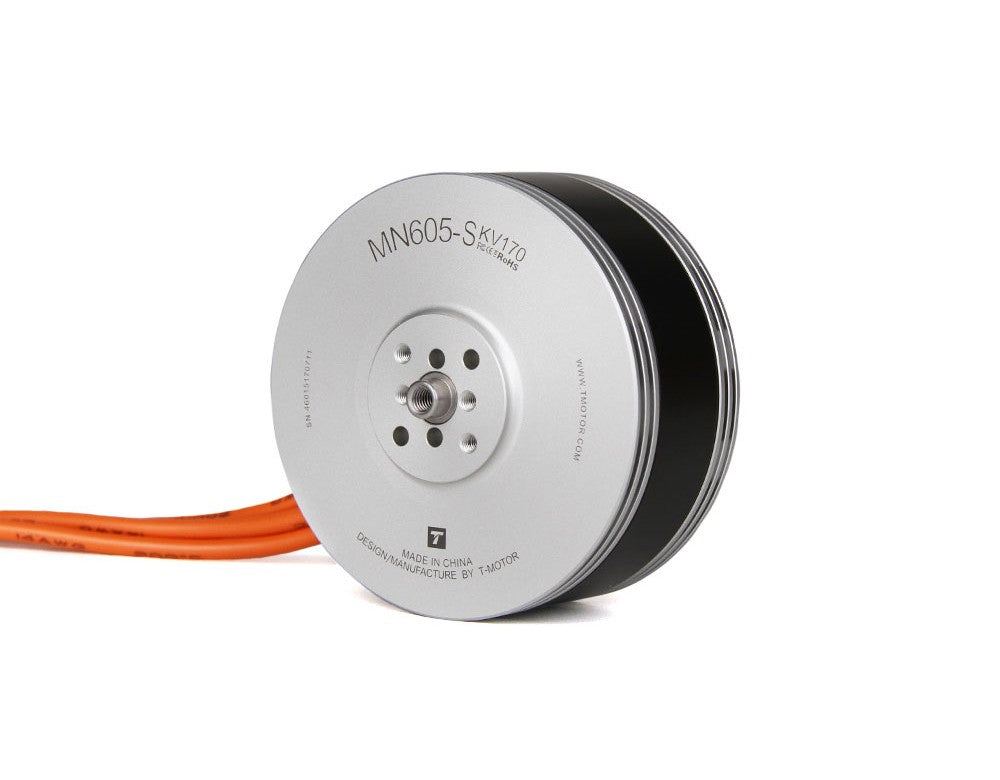

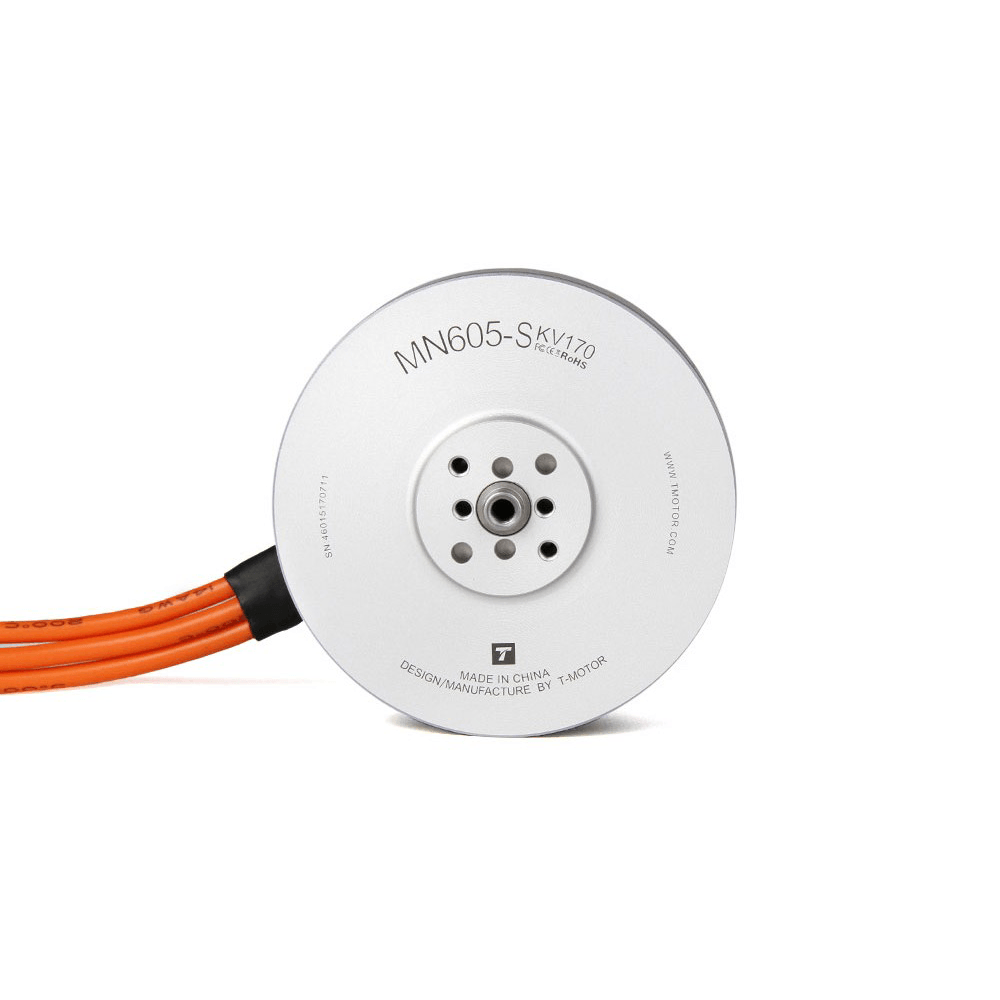

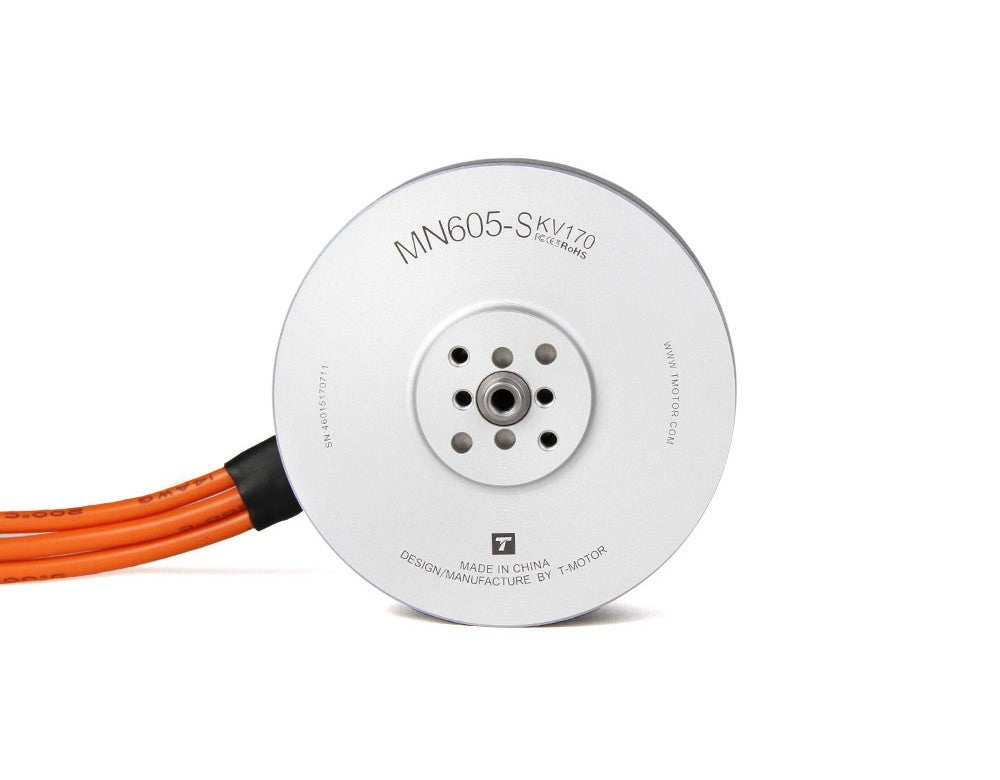

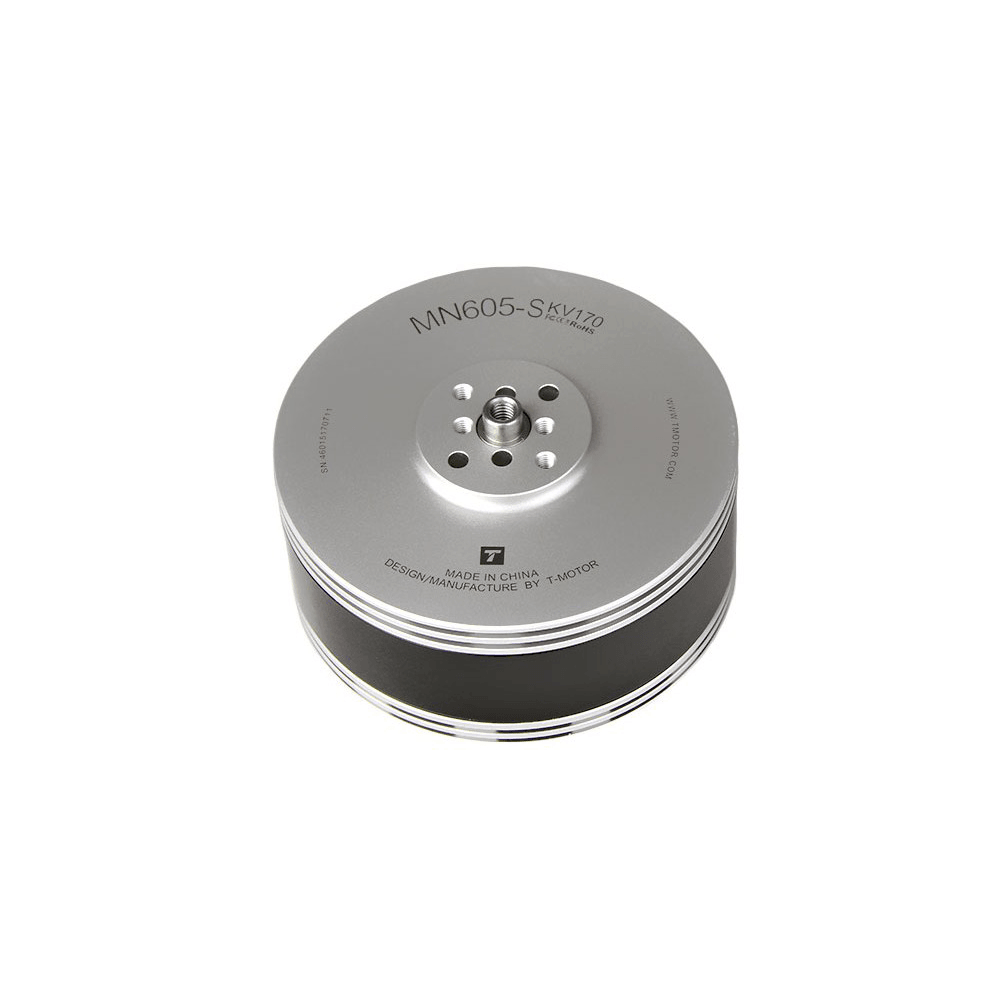

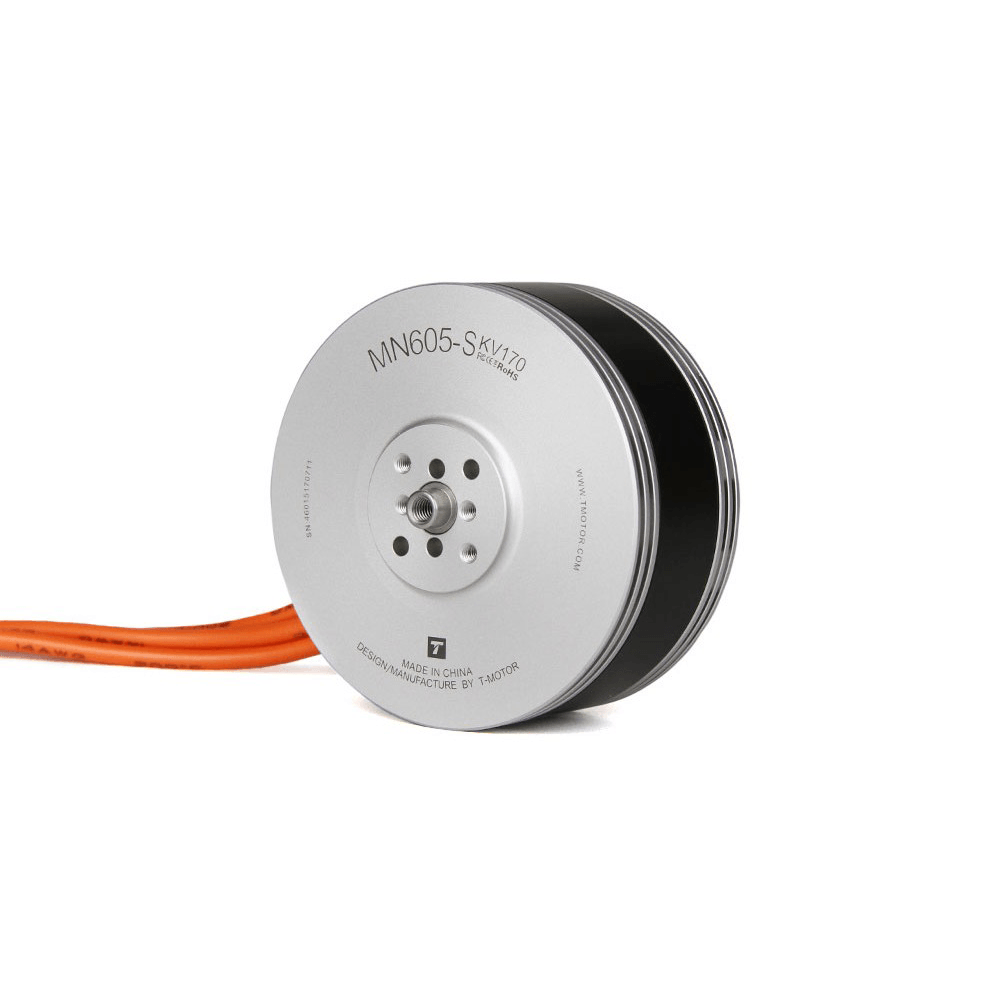

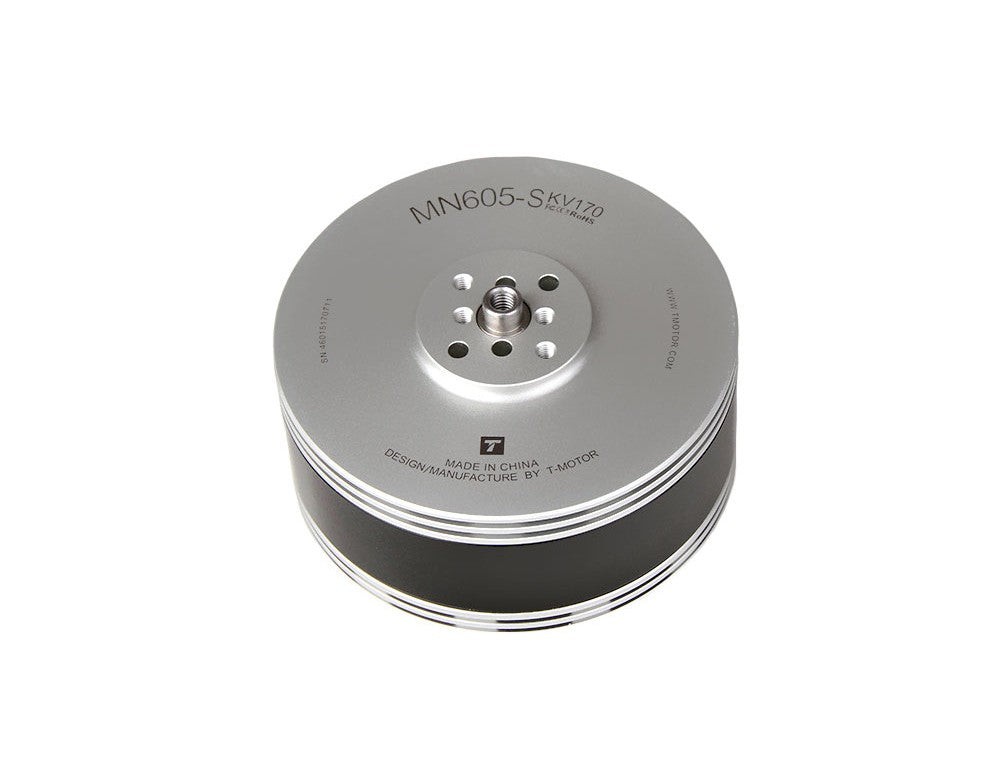

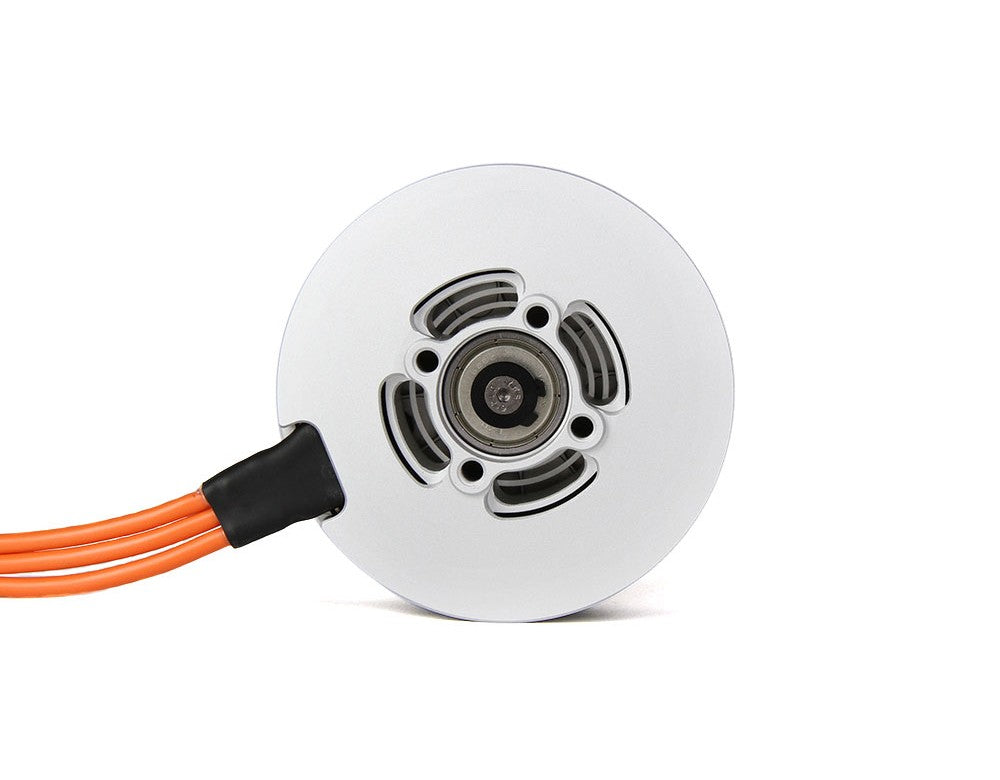

T-MOTOR MN605-S 2-Motor Set Navigator UAV Motor
$599.00
The MN605-S is an official T-MOTOR MN Navigator motor for professional multirotor and vtol uav applications. Select the exact KV and configuration using the manufacturer data for the complete propulsion system.
Key Features
- MN Navigator motors prioritize efficient, reliable propulsion for professional multirotor and VTOL aircraft.
- Recommended propeller: 20-22".
- Maximum thrust: 8.6kg.
- Motor weight including cable: 350 g.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
- Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV170 | AWD01010166 | 2 motors per set |
| KV320 | AWD01010170 | 2 motors per set |
Technical Specifications
KV170
| Manufacturer identifier | AWD01010166 |
|---|---|
| Series | MN Navigator |
| KV rating | KV170 |
| Package quantity | 2 motors per set |
| Recommended propeller | 20-22" |
| Maximum thrust | 8.6kg |
| Internal resistance | 21mΩ |
| Motor dimensions | Φ68.8*34.9mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:6mm,OUT:6mm |
| Bearing | Imported 626ZZ |
| Magnet grade | 150°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 350 g |
| Net weight | 316 g |
| Shipping weight | 1036 g |
| Package dimensions | 193 x 120 x 75 mm |
KV320
| Manufacturer identifier | AWD01010170 |
|---|---|
| Series | MN Navigator |
| KV rating | KV320 |
| Package quantity | 2 motors per set |
| Recommended propeller | 20-22" |
| Maximum thrust | 8.6kg |
| Internal resistance | 21mΩ |
| Motor dimensions | Φ68.8*34.9mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:6mm,OUT:6mm |
| Bearing | Imported 626ZZ |
| Magnet grade | 150°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 350 g |
| Net weight | 316 g |
| Shipping weight | 1036 g |
| Package dimensions | 193 x 120 x 75 mm |
What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
MN Navigator
Specifications and technical data
Official model-specific reference material
Selected configuration
KV170
Manufacturer SKU AWD01010166
| Manufacturer identifier | AWD01010166 |
|---|---|
| Series | MN Navigator |
| KV rating | KV170 |
| Package quantity | 2 motors per set |
| Recommended propeller | 20-22" |
| Maximum thrust | 8.6kg |
| Internal resistance | 21mΩ |
| Motor dimensions | Φ68.8*34.9mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:6mm,OUT:6mm |
| Bearing | Imported 626ZZ |
| Magnet grade | 150°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 350 g |
| Net weight | 316 g |
| Shipping weight | 1036 g |
| Package dimensions | 193 x 120 x 75 mm |
03
Manufacturer reference
Selected configuration
KV320
Manufacturer SKU AWD01010170
| Manufacturer identifier | AWD01010170 |
|---|---|
| Series | MN Navigator |
| KV rating | KV320 |
| Package quantity | 2 motors per set |
| Recommended propeller | 20-22" |
| Maximum thrust | 8.6kg |
| Internal resistance | 21mΩ |
| Motor dimensions | Φ68.8*34.9mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:6mm,OUT:6mm |
| Bearing | Imported 626ZZ |
| Magnet grade | 150°C high temperature resistance |
| Lead cable | 14AWG*150mm |
| Motor weight including cable | 350 g |
| Net weight | 316 g |
| Shipping weight | 1036 g |
| Package dimensions | 193 x 120 x 75 mm |
