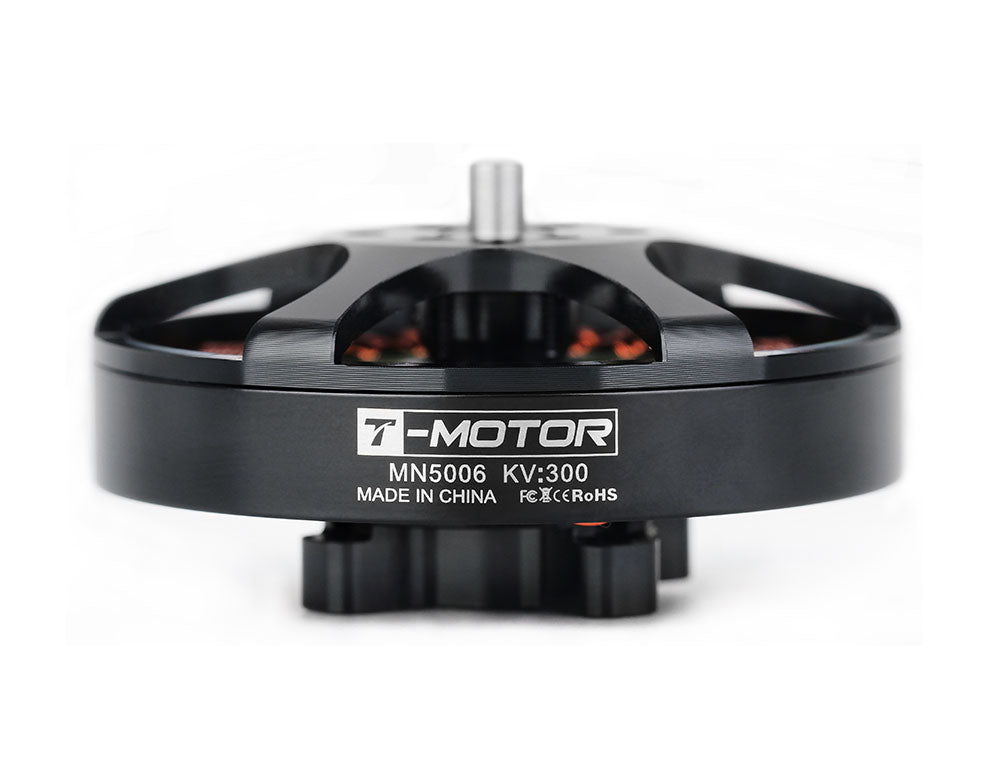

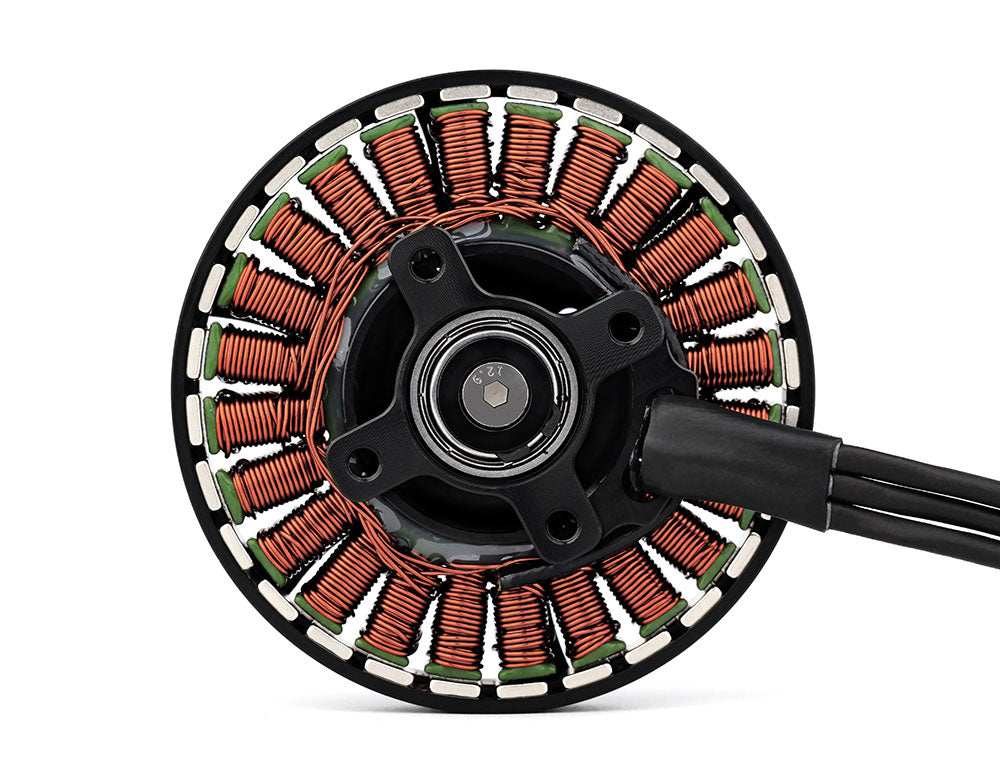

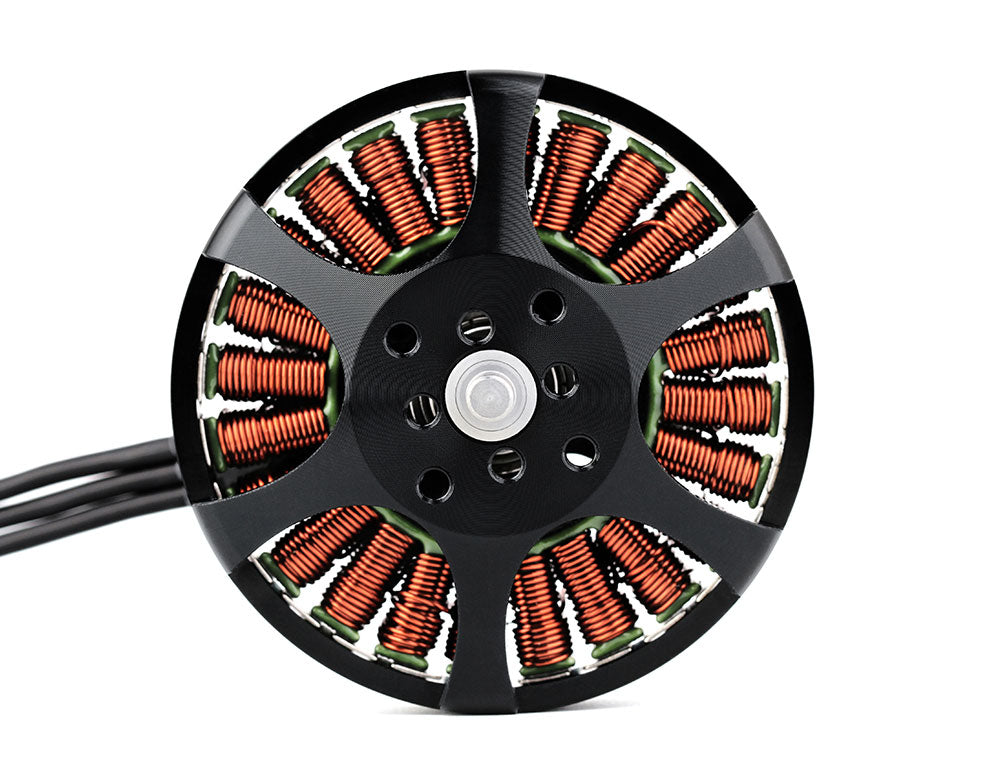

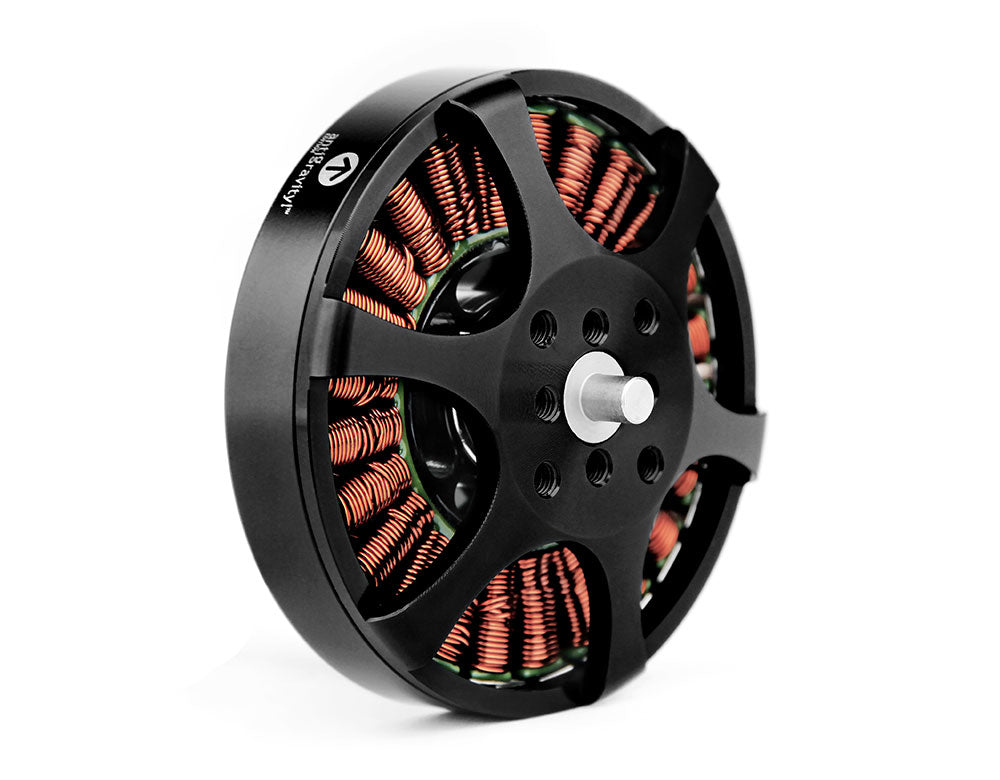

T-MOTOR MN5006 Antigravity UAV Motor
$189.00
The MN5006 is an official T-MOTOR MN Antigravity motor for aerial imaging and multirotor uav applications. Select the exact KV and configuration using the manufacturer data for the complete propulsion system.
Key Features
- MN Antigravity motors are compact multirotor motors with model-specific KV, voltage, propeller, and performance data.
- Motor weight including cable: 106 g.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
- Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV300 | AWD01010016 | One motor |
| KV450 | AWD01010017 | One motor |
Technical Specifications
KV300
| Manufacturer identifier | AWD01010016 |
|---|---|
| Series | MN Antigravity |
| KV rating | KV300 |
| Recommended propeller | P14-18” |
| Internal resistance | 60mΩ |
| Motor dimensions | Φ55.6*30mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:6mm |
| Bearing | Imported 696ZZ |
| Magnet grade | 150°C high temperature resistance: Level E |
| Lead cable | 80mm |
| Motor weight including cable | 106 g |
| Net weight | 108 g |
| Shipping weight | 170 g |
| Package dimensions | 106 x 81 x 35 mm |
KV450
| Manufacturer identifier | AWD01010017 |
|---|---|
| Series | MN Antigravity |
| KV rating | KV450 |
| Recommended propeller | P17-18" |
| Internal resistance | 60mΩ |
| Motor dimensions | Φ55.6*30mm |
| Motor configuration | 24N28P |
| Shaft diameter | IN:6mm |
| Bearing | Imported 696ZZ |
| Magnet grade | 150°C high temperature resistance: Level E |
| Lead cable | 80mm |
| Motor weight including cable | 106 g |
| Net weight | 108 g |
| Shipping weight | 170 g |
| Package dimensions | 106 x 81 x 35 mm |
What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
