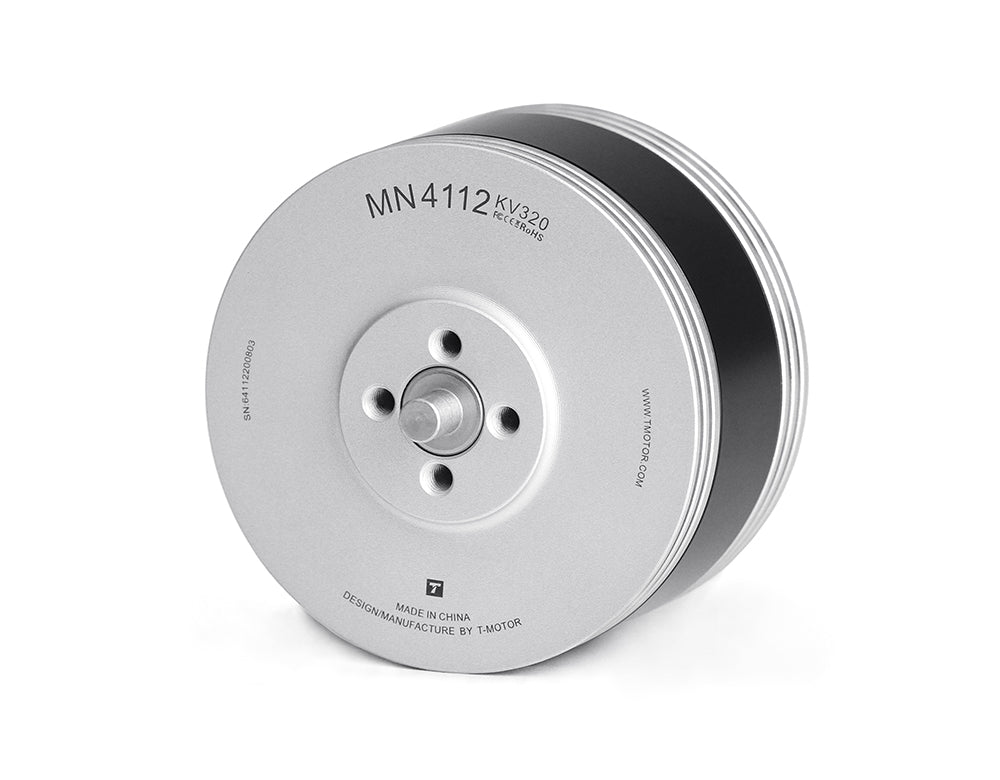

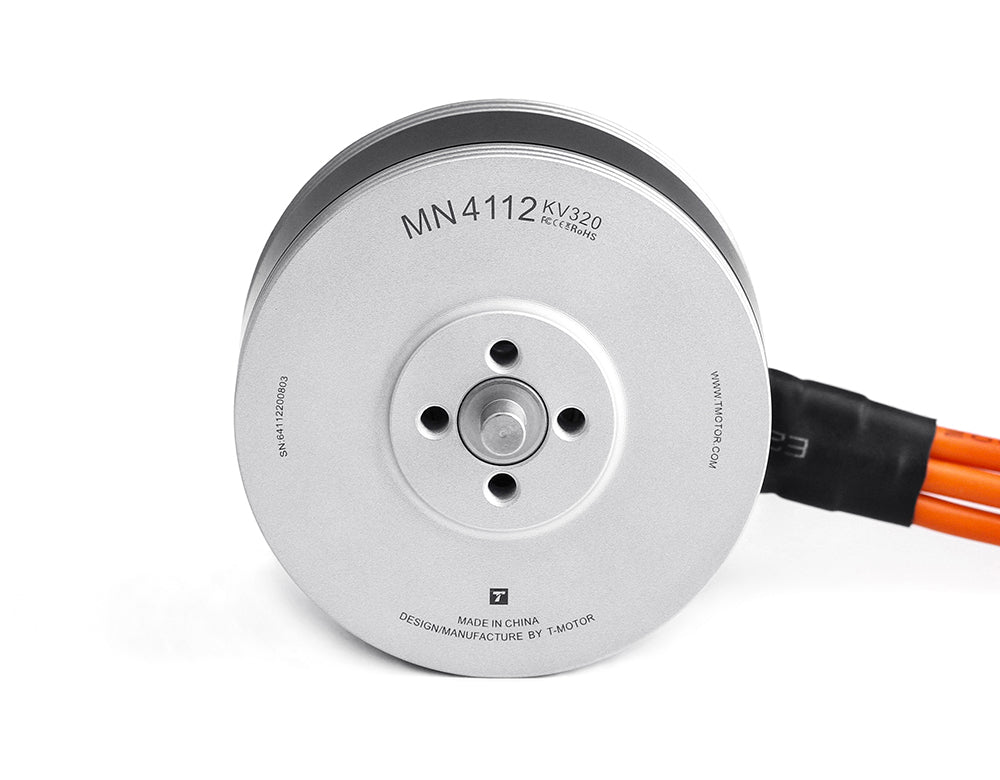

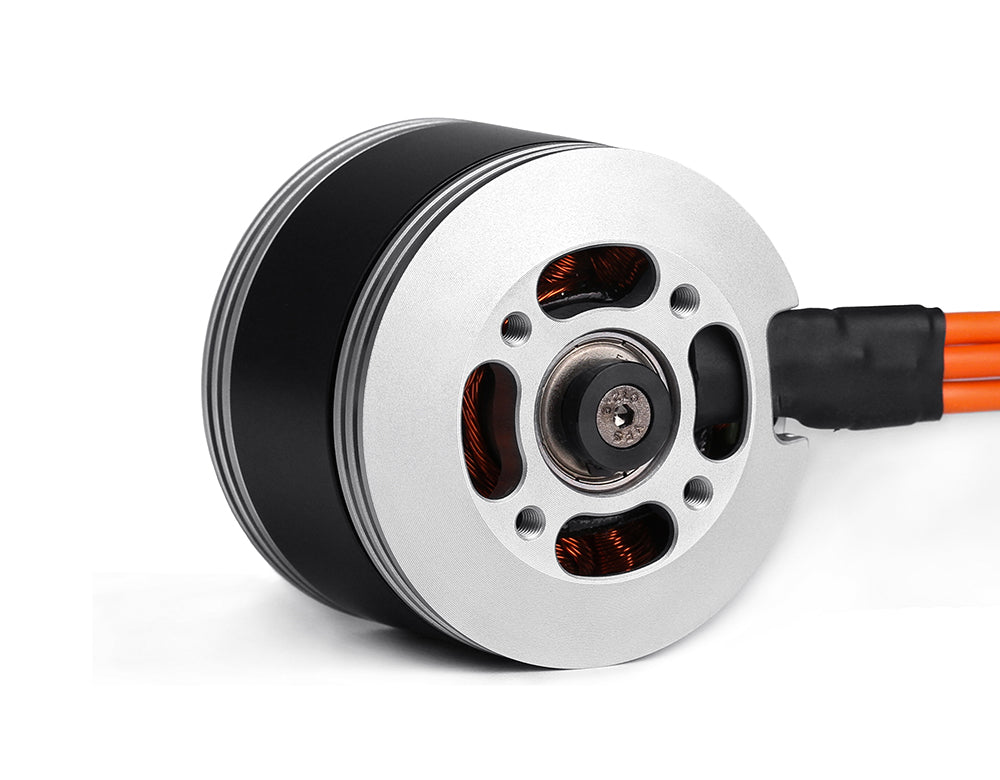

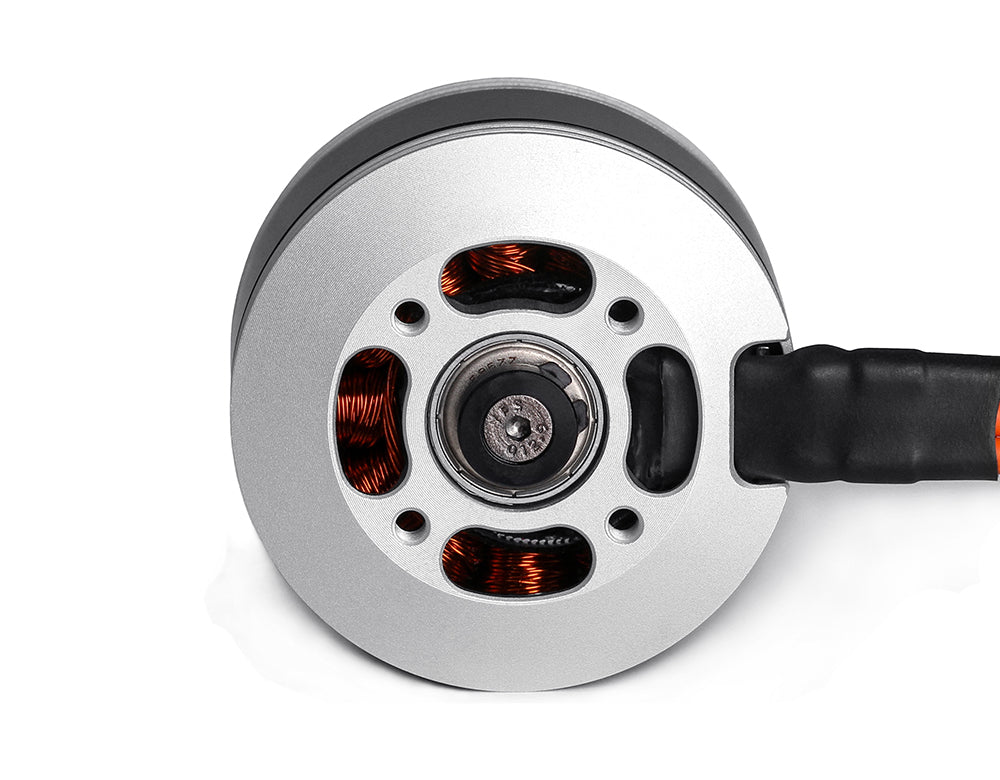

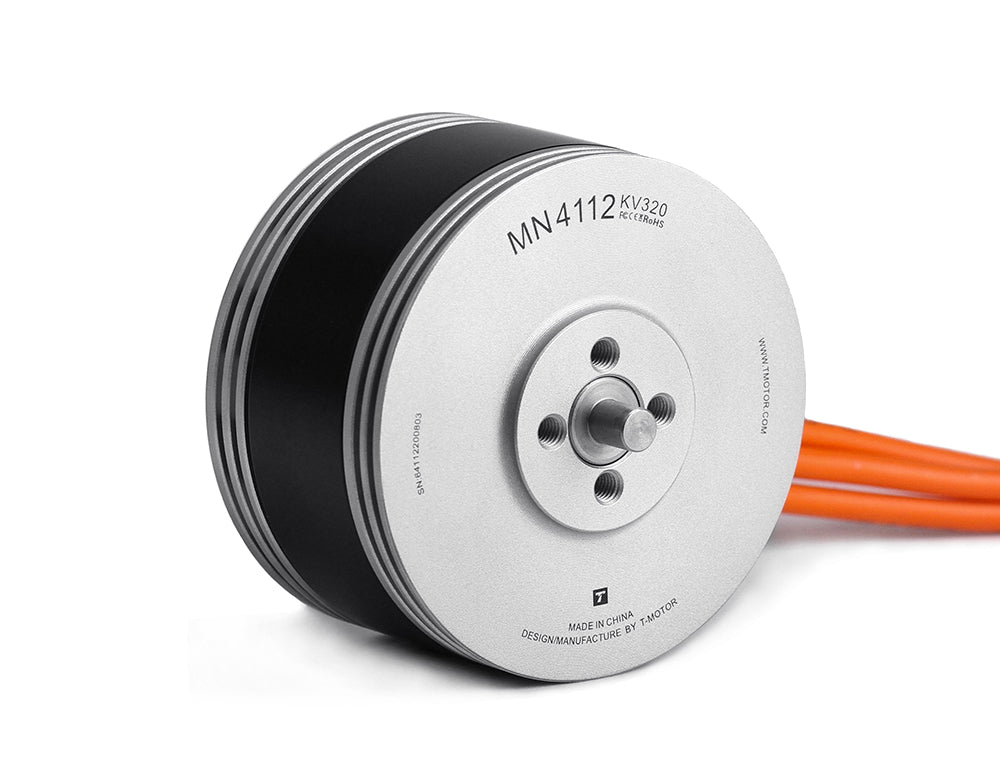

T-MOTOR MN4112 Navigator UAV Motor
$219.00
The MN4112 is an official T-MOTOR MN Navigator motor for professional multirotor and vtol uav applications. Select the exact KV and configuration using the manufacturer data for the complete propulsion system.
Key Features
- MN Navigator motors prioritize efficient, reliable propulsion for professional multirotor and VTOL aircraft.
- Recommended propeller: P15*5".
- Recommended ESC: AT 75A 6S.
- Motor weight including cable: 172 g.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
- Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV320 | Not separately assigned by manufacturer | One motor |
| KV420 | Not separately assigned by manufacturer | One motor |
Technical Specifications
KV320
| Series | MN Navigator |
|---|---|
| KV rating | KV320 |
| Recommended propeller | P15*5" |
| Recommended ESC | AT 75A 6S |
| Peak current (180 s) | 40A |
| Maximum power (180 s) | 910W |
| Idle current at 10 V | 1.1A |
| Internal resistance | 94mΩ |
| Motor dimensions | Φ47.4*38.7mm |
| Motor configuration | 12N14P |
| Bearing | 686ZZ/696ZZ |
| Lead cable | 16AWG*150mm |
| Motor weight including cable | 172 g |
| Rotor balance standard | ≤5Mg |
| Coil insulation test | 500V/5s |
| Net weight | 172 g |
| Shipping weight | 275 g |
KV420
| Series | MN Navigator |
|---|---|
| KV rating | KV420 |
| Recommended propeller | P15*5" |
| Recommended ESC | AT 75A 6S |
| Peak current (180 s) | 40A |
| Maximum power (180 s) | 910W |
| Idle current at 10 V | 1.1A |
| Internal resistance | 94mΩ |
| Motor dimensions | Φ47.4*38.7mm |
| Motor configuration | 12N14P |
| Bearing | 686ZZ/696ZZ |
| Lead cable | 16AWG*150mm |
| Motor weight including cable | 172 g |
| Rotor balance standard | ≤5Mg |
| Coil insulation test | 500V/5s |
| Net weight | 172 g |
| Shipping weight | 275 g |
What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
MN Navigator
Specifications and technical data
Official model-specific reference material
Selected configuration
KV320
| Series | MN Navigator |
|---|---|
| KV rating | KV320 |
| Recommended propeller | P15*5" |
| Recommended ESC | AT 75A 6S |
| Peak current (180 s) | 40A |
| Maximum power (180 s) | 910W |
| Idle current at 10 V | 1.1A |
| Internal resistance | 94mΩ |
| Motor dimensions | Φ47.4*38.7mm |
| Motor configuration | 12N14P |
| Bearing | 686ZZ/696ZZ |
| Lead cable | 16AWG*150mm |
| Motor weight including cable | 172 g |
| Rotor balance standard | ≤5Mg |
| Coil insulation test | 500V/5s |
| Net weight | 172 g |
| Shipping weight | 275 g |
03
Manufacturer reference
Selected configuration
KV420
| Series | MN Navigator |
|---|---|
| KV rating | KV420 |
| Recommended propeller | P15*5" |
| Recommended ESC | AT 75A 6S |
| Peak current (180 s) | 40A |
| Maximum power (180 s) | 910W |
| Idle current at 10 V | 1.1A |
| Internal resistance | 94mΩ |
| Motor dimensions | Φ47.4*38.7mm |
| Motor configuration | 12N14P |
| Bearing | 686ZZ/696ZZ |
| Lead cable | 16AWG*150mm |
| Motor weight including cable | 172 g |
| Rotor balance standard | ≤5Mg |
| Coil insulation test | 500V/5s |
| Net weight | 172 g |
| Shipping weight | 275 g |
03
Manufacturer reference
