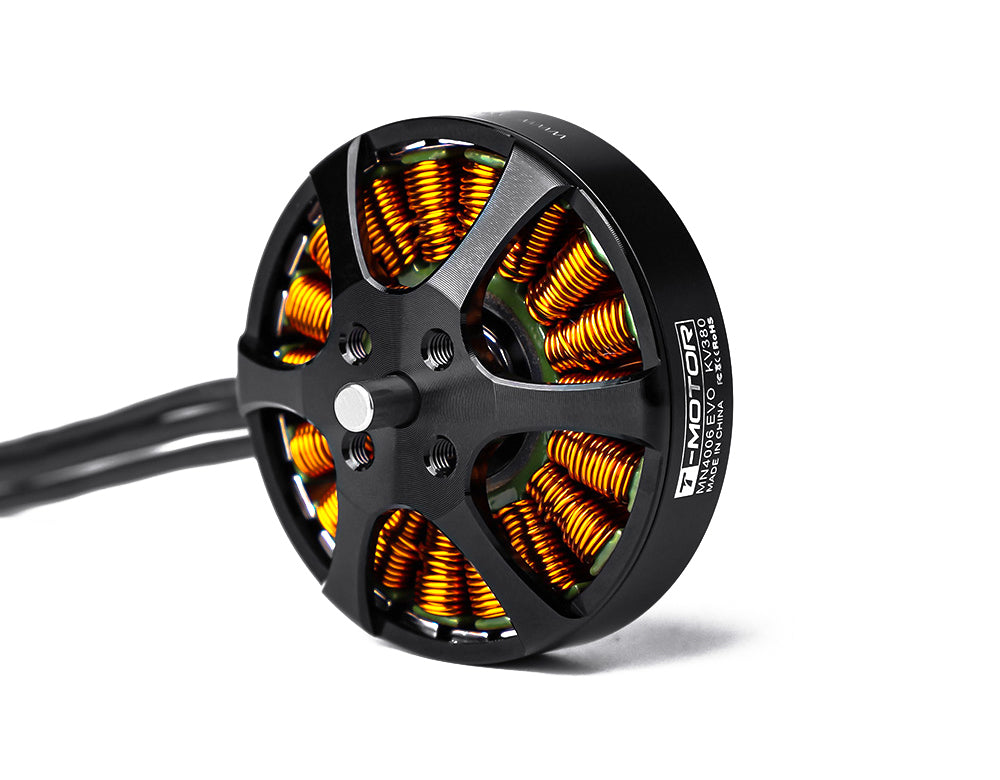

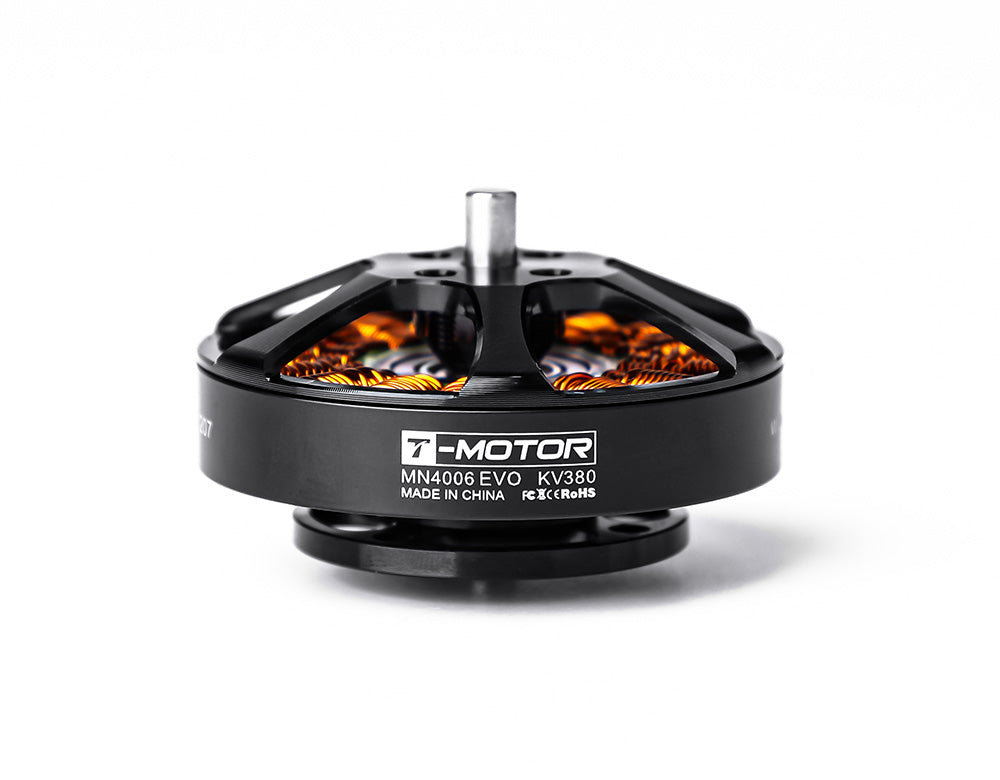

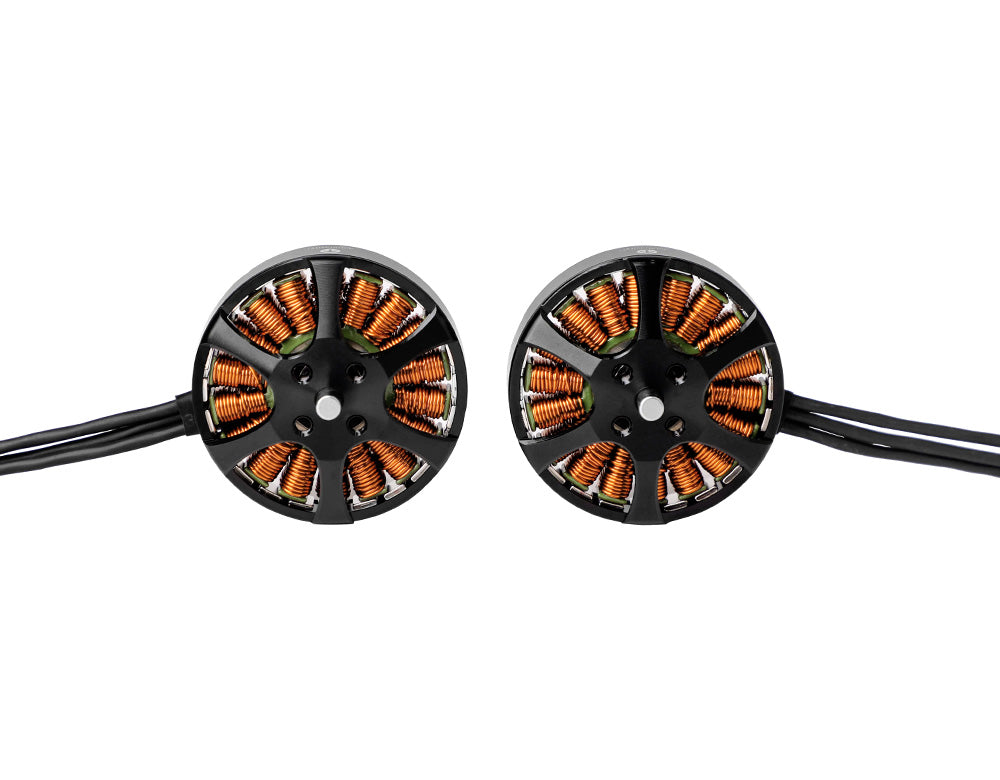

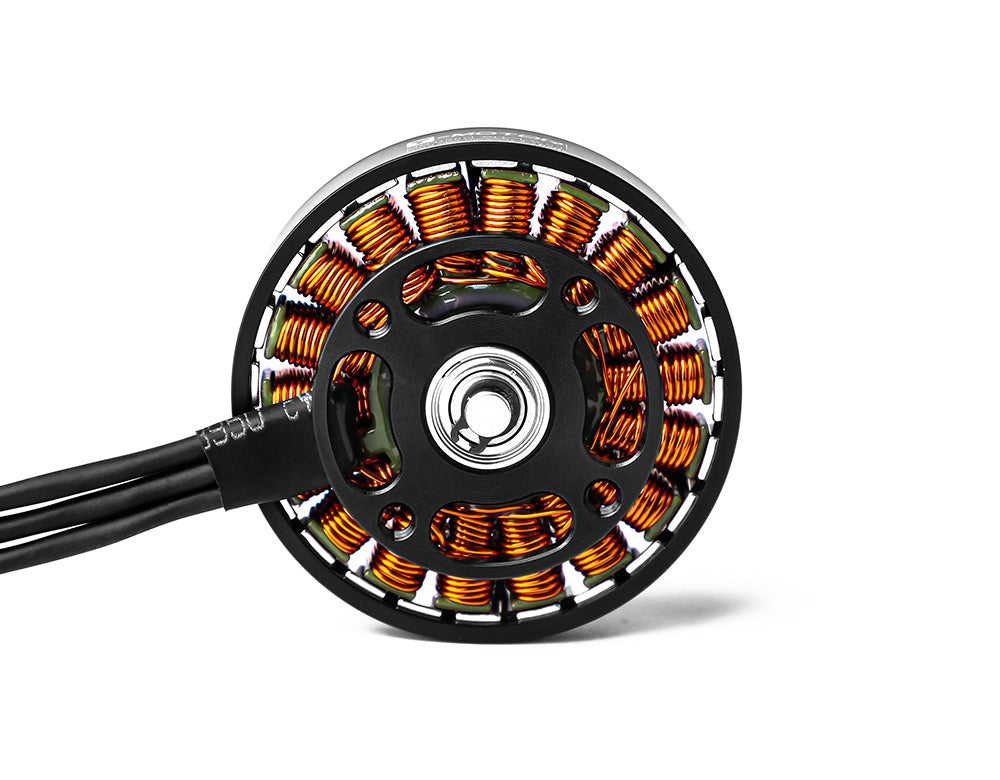

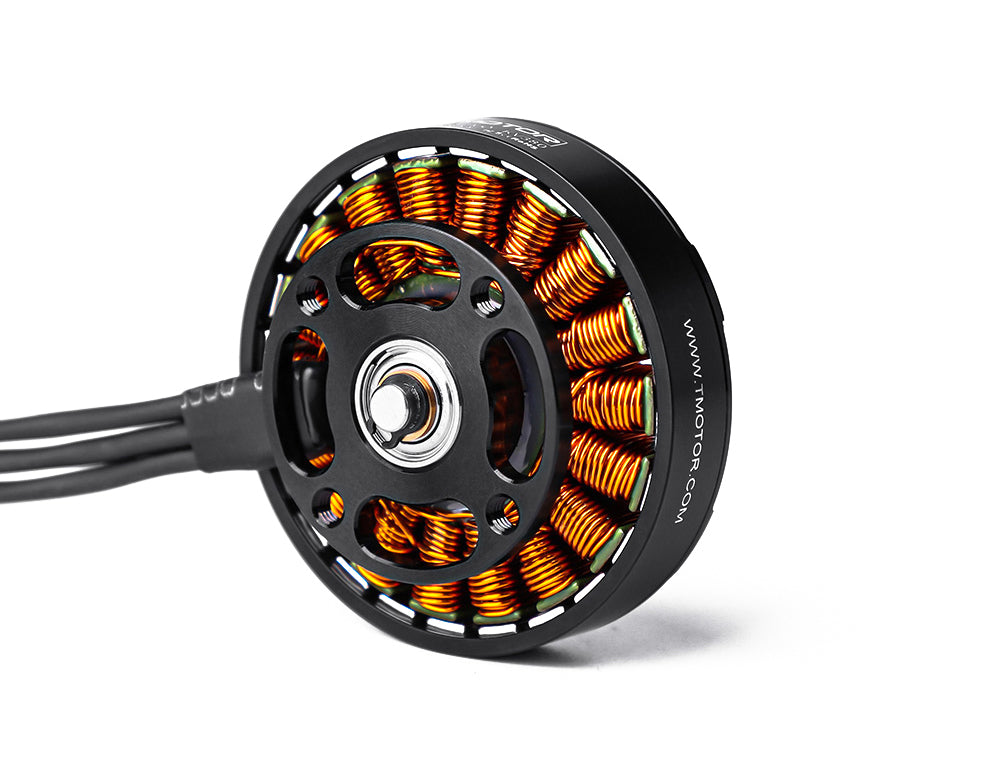

T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - verified product view

T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor

$399.00
KV

The MN4006 EVO is an official T-MOTOR MN Antigravity motor for aerial imaging and multirotor uav applications. Review the manufacturer data for the complete propulsion system before installation.

Key Features

  • MN Antigravity motors are compact multirotor motors with model-specific KV, voltage, propeller, and performance data.
  • Motor weight including cable: 73 g.
  • Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
  • Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.

Configurations

Configuration Manufacturer identifier Package
KV380 AWD01010231 2 motors per set

Technical Specifications

Manufacturer identifier AWD01010231
Series MN Antigravity
KV rating KV380
Package quantity 2 motors per set
Idle current at 10 V 0.7A
Internal resistance 159mΩ
Motor dimensions Φ44.1*29.3mm
Motor configuration 18N24P
Shaft diameter IN:4mm,OUT:4mm
Bearing Imported 694ZZ
Motor weight including cable 73 g

What's Included

One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.

Compatibility and Safety

Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.

MN Antigravity

Specifications and technical data

Official model-specific reference material
Selected configuration

KV380

Manufacturer SKU AWD01010231

T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor KV380 specifications
Manufacturer identifier AWD01010231
Series MN Antigravity
KV rating KV380
Package quantity 2 motors per set
Idle current at 10 V 0.7A
Internal resistance 159mΩ
Motor dimensions Φ44.1*29.3mm
Motor configuration 18N24P
Shaft diameter IN:4mm,OUT:4mm
Bearing Imported 694ZZ
Motor weight including cable 73 g
03

Manufacturer reference

T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 2
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 2
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 3
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 3
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 4
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 4
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 5
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 5
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 6
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 6
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 7
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 7
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 8
T-MOTOR MN4006 EVO KV380 2-Motor Set Antigravity UAV Motor - official technical reference 8
