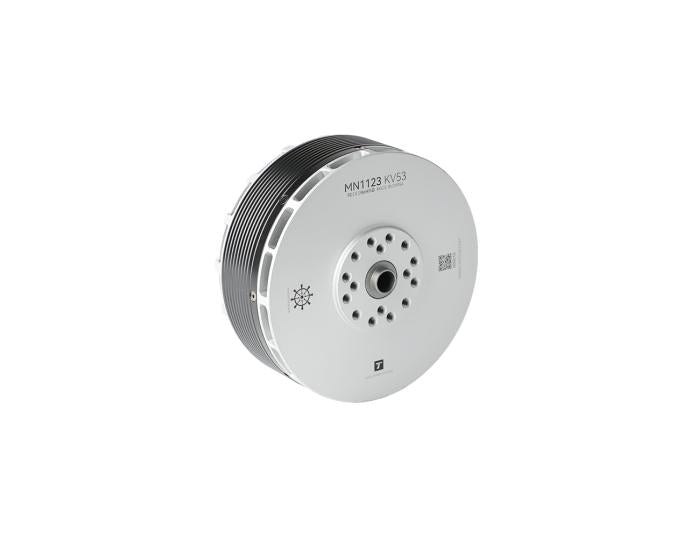

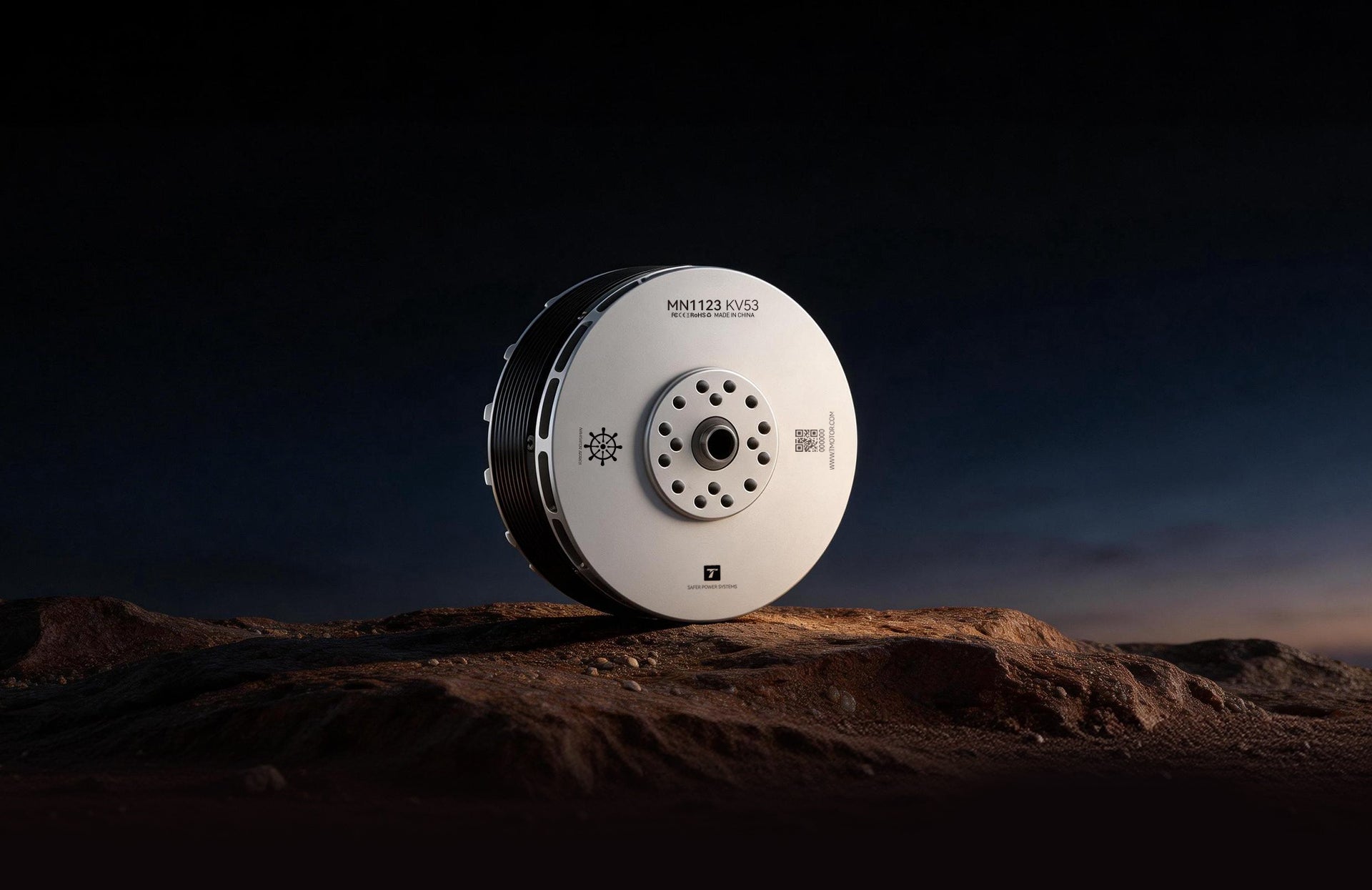

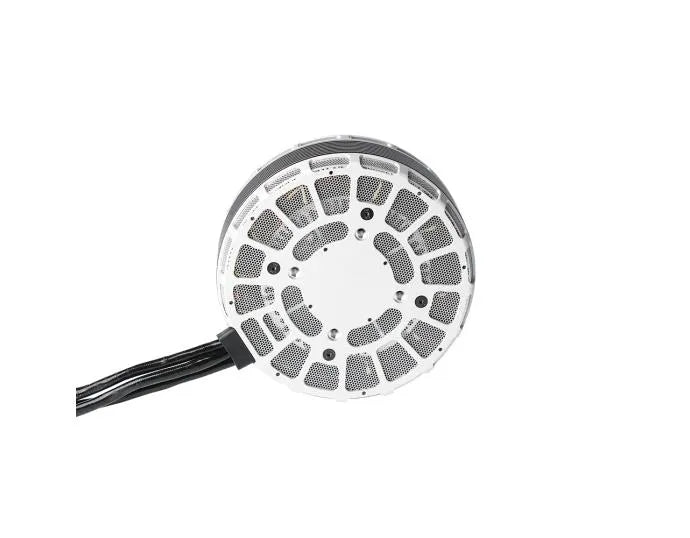

T-MOTOR MN1123 KV53 Navigator UAV Motor
The MN1123 is an official T-MOTOR MN Navigator motor for professional multirotor and vtol uav applications. Review the manufacturer data for the complete propulsion system before installation.
Key Features
- MN Navigator motors prioritize efficient, reliable propulsion for professional multirotor and VTOL aircraft.
- Rated battery: 24S.
- Recommended ESC: M200A 24S.
- Maximum thrust: 47.5kg.
- Motor weight including cable: 1425 g.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV53 | AWD01010273 | One motor |
Technical Specifications
| Manufacturer identifier | AWD01010273 |
|---|---|
| Series | MN Navigator |
| KV rating | KV53 |
| Rated battery | 24S |
| Recommended ESC | M200A 24S |
| Maximum thrust | 47.5kg |
| Maximum power (180 s) | 2400W |
| Internal resistance | 35mΩ |
| Motor dimensions | Φ120.5*58.9mm |
| Magnet grade | 180°C High Temperature Resistance |
| Motor weight including cable | 1425 g |
| Rotor balance standard | ≤30mg |
What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
MN Navigator
Specifications and technical data
Official model-specific reference materialKV53
Manufacturer SKU AWD01010273
| Manufacturer identifier | AWD01010273 |
|---|---|
| Series | MN Navigator |
| KV rating | KV53 |
| Rated battery | 24S |
| Recommended ESC | M200A 24S |
| Maximum thrust | 47.5kg |
| Maximum power (180 s) | 2400W |
| Internal resistance | 35mΩ |
| Motor dimensions | Φ120.5*58.9mm |
| Magnet grade | 180°C High Temperature Resistance |
| Motor weight including cable | 1425 g |
| Rotor balance standard | ≤30mg |
