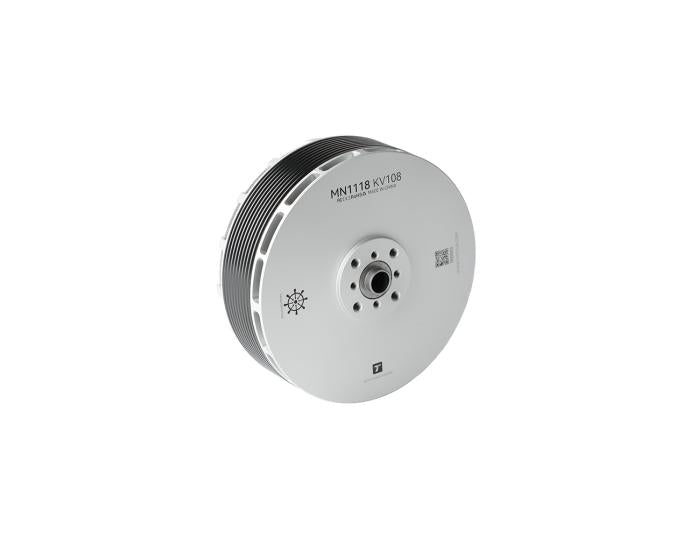

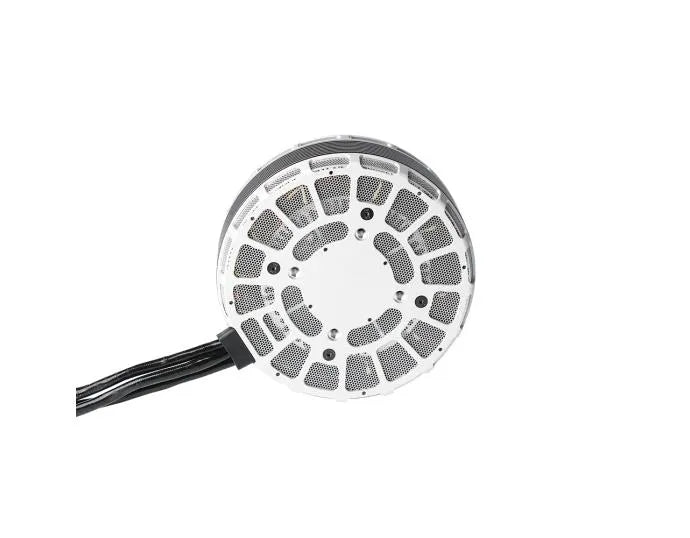

T-MOTOR MN1118 Navigator UAV Motor
$1,049.00
The MN1118 is an official T-MOTOR MN Navigator motor for professional multirotor and vtol uav applications. Select the exact KV and configuration using the manufacturer data for the complete propulsion system.
Key Features
- MN Navigator motors prioritize efficient, reliable propulsion for professional multirotor and VTOL aircraft.
- Rated battery: 14S.
- Recommended ESC: M200A 14S.
- Maximum thrust: 39.2kg.
- Motor weight including cable: 1170 g.
- Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
Configurations
| Configuration | Manufacturer identifier | Package |
|---|---|---|
| KV90 | Not separately assigned by manufacturer | One motor |
| KV108 | Not separately assigned by manufacturer | One motor |
Technical Specifications
KV90
| Series | MN Navigator |
|---|---|
| KV rating | KV90 |
| Rated battery | 14S |
| Recommended ESC | M200A 14S |
| Maximum thrust | 39.2kg |
| Maximum power (180 s) | 2230W |
| Internal resistance | 18m Ω |
| Motor dimensions | Φ 120.5*50.9mm |
| Magnet grade | 180°C High Temperature Resistance |
| Motor weight including cable | 1170 g |
| Rotor balance standard | ≤30mg |
KV108
| Series | MN Navigator |
|---|---|
| KV rating | KV108 |
| Rated battery | 14S |
| Recommended ESC | M200A 14S |
| Maximum thrust | 39.2kg |
| Maximum power (180 s) | 2230W |
| Internal resistance | 18m Ω |
| Motor dimensions | Φ 120.5*50.9mm |
| Magnet grade | 180°C High Temperature Resistance |
| Motor weight including cable | 1170 g |
| Rotor balance standard | ≤30mg |
What's Included
One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.
Compatibility and Safety
Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
MN Navigator
Specifications and technical data
Official model-specific reference material
Selected configuration
KV90
| Series | MN Navigator |
|---|---|
| KV rating | KV90 |
| Rated battery | 14S |
| Recommended ESC | M200A 14S |
| Maximum thrust | 39.2kg |
| Maximum power (180 s) | 2230W |
| Internal resistance | 18m Ω |
| Motor dimensions | Φ 120.5*50.9mm |
| Magnet grade | 180°C High Temperature Resistance |
| Motor weight including cable | 1170 g |
| Rotor balance standard | ≤30mg |
03
Manufacturer reference
Selected configuration
KV108
| Series | MN Navigator |
|---|---|
| KV rating | KV108 |
| Rated battery | 14S |
| Recommended ESC | M200A 14S |
| Maximum thrust | 39.2kg |
| Maximum power (180 s) | 2230W |
| Internal resistance | 18m Ω |
| Motor dimensions | Φ 120.5*50.9mm |
| Magnet grade | 180°C High Temperature Resistance |
| Motor weight including cable | 1170 g |
| Rotor balance standard | ≤30mg |
03
Manufacturer reference
