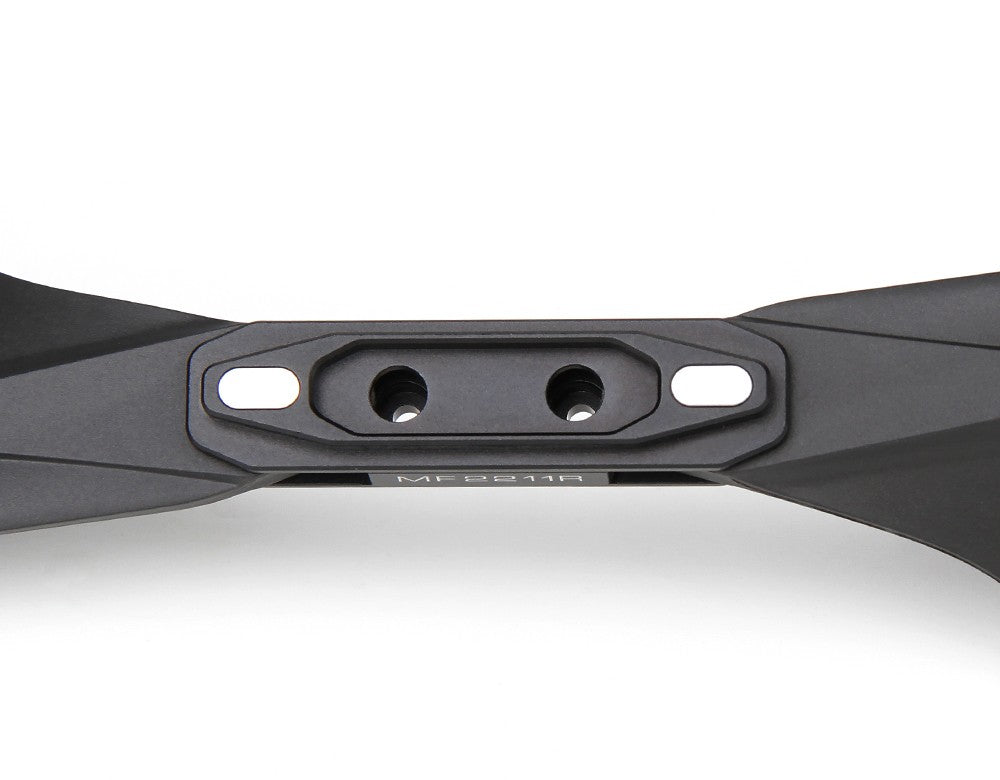

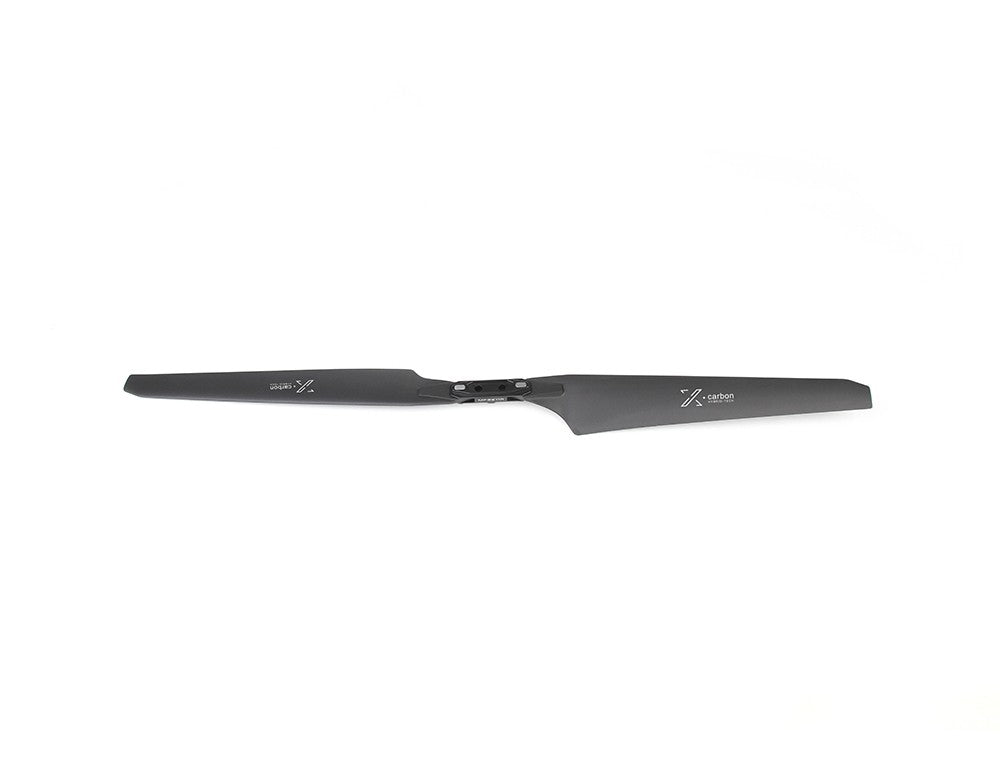

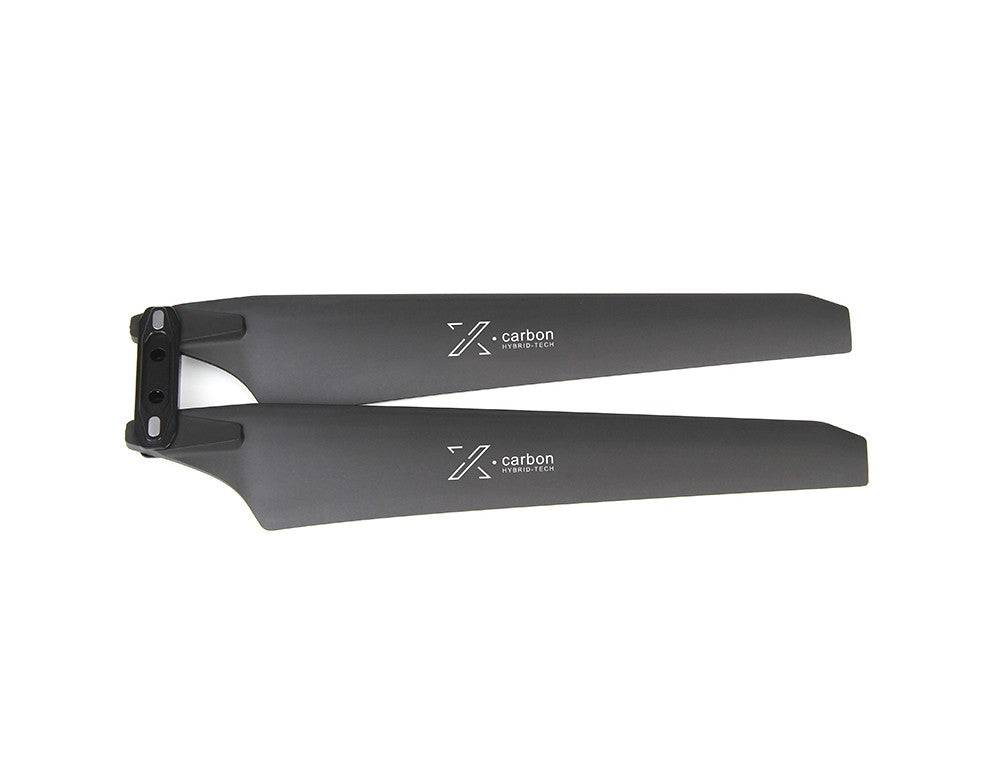

T-MOTOR MF2211 Polymer Folding Propeller - official product view

T-MOTOR MF2211 Polymer Folding Propeller

$119.00

The MF2211 Polymer Folding is an official T-MOTOR MF Polymer Folding propeller for multirotor uav applications. Select only the exact manufacturer configuration that matches the motor, KV, voltage, mounting, and official test data for the aircraft.

Key Features

  • MF Series polymer folding propeller for professional multirotor UAV applications.
  • Exact manufacturer SKU and configuration are shown for every selectable option.
  • Official size reference: 22.4 inch(568 mm).
  • Manufacturer-listed material: Polymer and carbon fiber.
  • Motor, ESC, hub, adapter, battery, and other pictured system components are sold separately unless explicitly named in the selected configuration.

Configurations

Configuration Manufacturer SKU Package reference
Pair CW+CCW AWL01010114 Pair CW+CCW

Technical Specifications

Manufacturer SKU AWL01010114
Series MF Polymer Folding
Configuration Pair CW+CCW
Official model MF2211
Diameter 22.4 inch(568 mm)
Pitch 8 inch(203.2 mm)
Material Polymer and carbon fiber
Single-blade weight 71 g
Net weight 71 g/pc
Shipping weight 247 g
Package dimensions 285*100*42

What's Included

The selected T-MOTOR manufacturer configuration shown above. No motor, ESC, hub, adapter, battery, airframe, or other system component is included unless it is explicitly named in the selected configuration or official packing list.

Compatibility and Safety

Propeller suitability is configuration-specific. Confirm motor model and KV, battery voltage, ESC limits, mounting interface, direction, operating RPM, thrust limits, clearances, fastener requirements, and the exact official test conditions before installation. Inspect the propeller before every flight and do not operate a damaged or improperly mounted propeller.

MF Polymer Folding

Specifications and technical data

Official model-specific reference material
Selected configuration

Pair CW+CCW

Manufacturer SKU AWL01010114

T-MOTOR MF2211 Polymer Folding Propeller Pair CW+CCW specifications
Manufacturer SKU AWL01010114
Series MF Polymer Folding
Configuration Pair CW+CCW
Official model MF2211
Diameter 22.4 inch(568 mm)
Pitch 8 inch(203.2 mm)
Material Polymer and carbon fiber
Single-blade weight 71 g
Net weight 71 g/pc
Shipping weight 247 g
Package dimensions 285*100*42
02

Dimensions

T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 1
T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 1
T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 2
T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 2
T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 3
T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 3
T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 4
T-MOTOR MF2211 Polymer Folding Propeller - official dimensions or specification diagram 4
