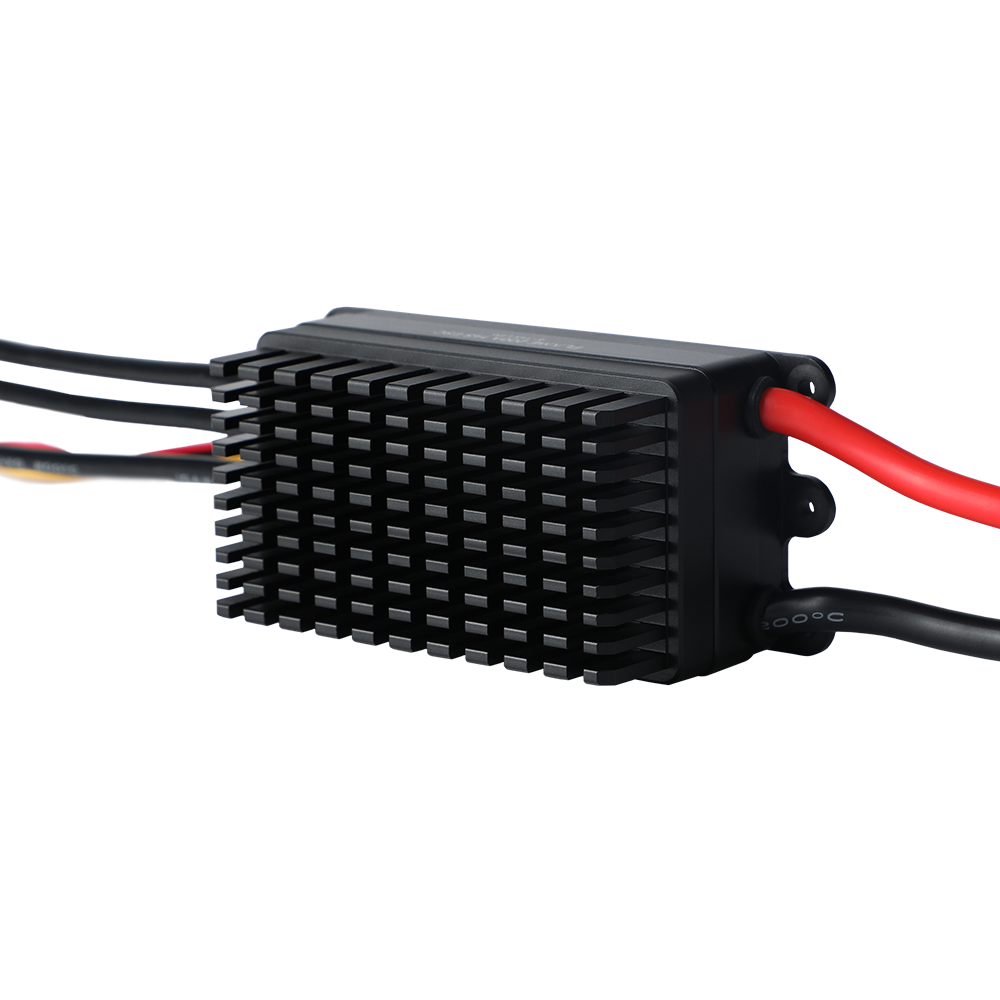

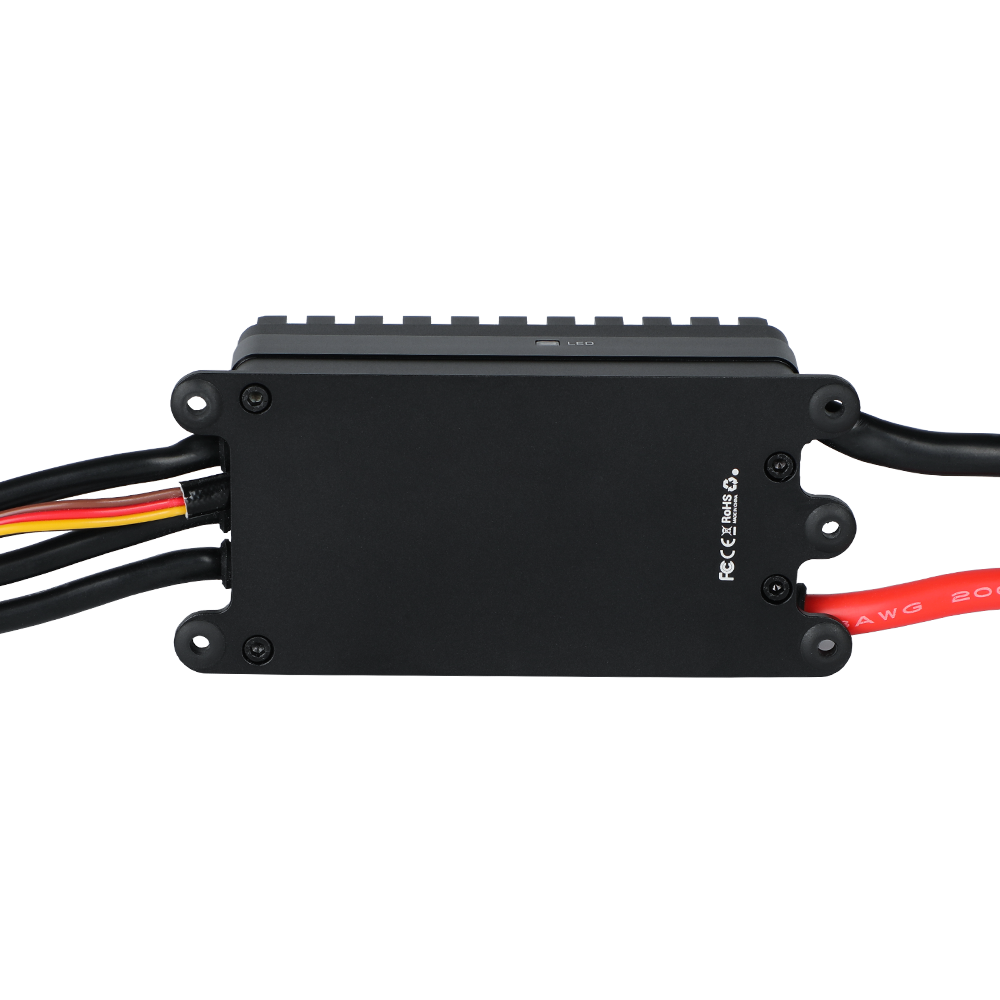

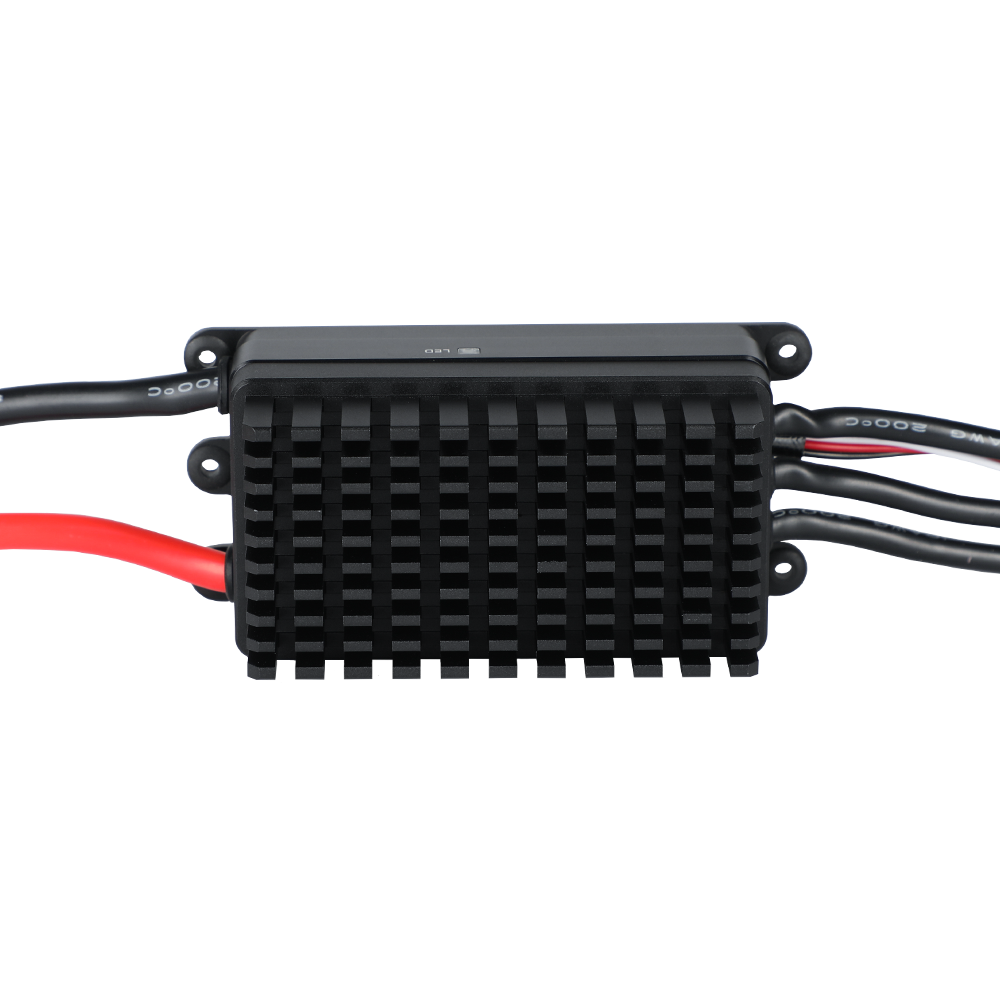

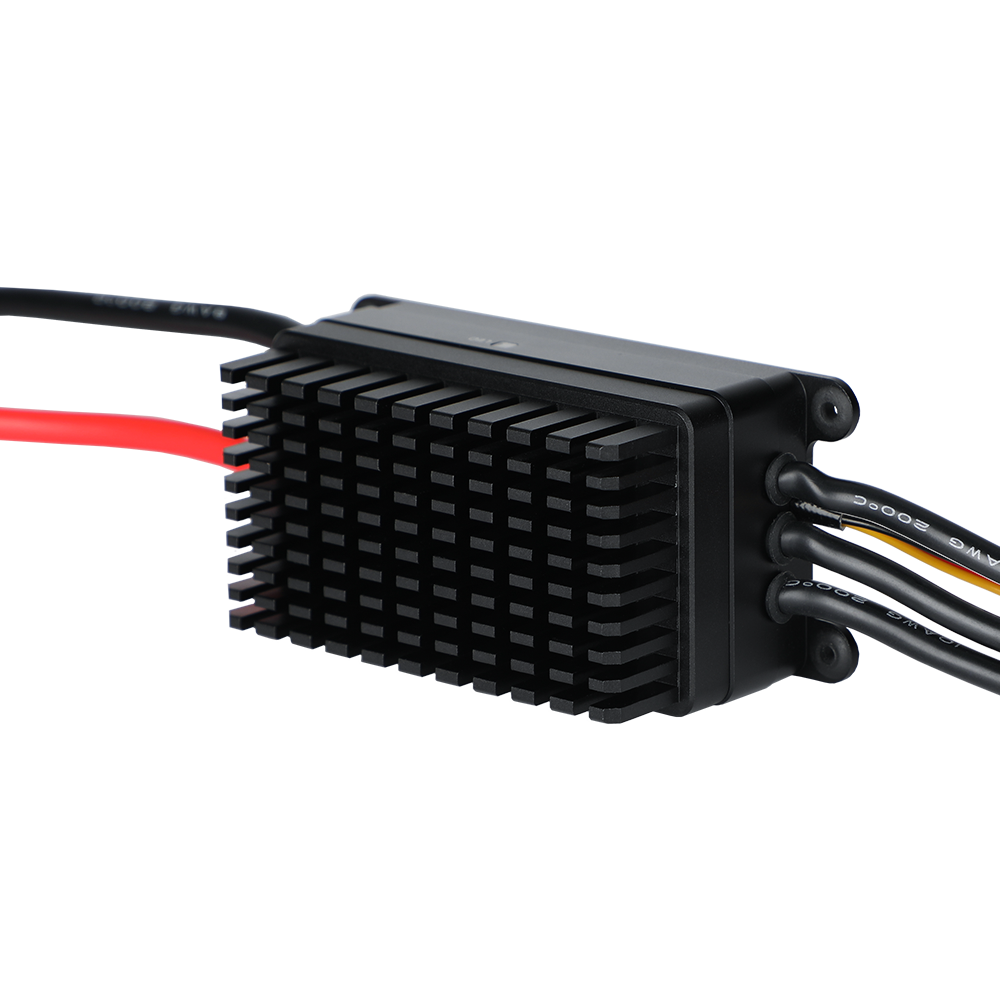

T-MOTOR FLAME 200A 14S Multirotor ESC
$1,099.00
FLAME Series. The T-MOTOR FLAME 200A 14S is a high-current multirotor ESC for professional propulsion systems using 6-14S LiPo power.
Key Features
- 200 A current rating with a 240 A peak value in the official FLAME-series table.
- Supports 6-14S LiPo systems and does not include a BEC.
- Manufacturer-listed maximum signal frequency of 621 Hz.
- Official product dimensions: 106 x 50 x 48.5 mm; source-listed weight: 558 g.
- Original T-MOTOR product views, wiring guidance, specification table, and engineering drawing are retained.
Configuration
| Manufacturer SKU | AWT01010009 |
|---|---|
| Battery range | 6-14S LiPo |
| Current rating | 200 A |
| Peak current | 240 A |
| BEC | No |
| Dimensions | 106 x 50 x 48.5 mm |
| Weight | 558 g |
What's Included
One T-MOTOR FLAME 200A 14S ESC with the permanently attached wiring shown by the official product media. Motor, propeller, battery, flight controller, connectors not shown as attached, and other system components are sold separately.
Integration and Safety
Confirm battery voltage, motor current, control signal, wiring, connector, cooling, mounting, and aircraft requirements before use. Follow the official calibration and protection guidance. Ratings are configuration-specific and must not be applied to an unverified 24S version.
FLAME Series
Specifications and technical data
Official model-specific reference material
Selected configuration
6-14S
Manufacturer SKU AWT01010009
| Manufacturer SKU | AWT01010009 |
|---|---|
| Supported battery range | 6-14S LiPo |
| Current rating | 200 A |
| Peak current | 240 A |
| BEC | No |
| Maximum signal frequency | 621 Hz |
| Dimensions | 106 x 50 x 48.5 mm |
| Source-listed weight | 558 g |
02
Dimensions
03
Manufacturer reference
04
Installation and operation
