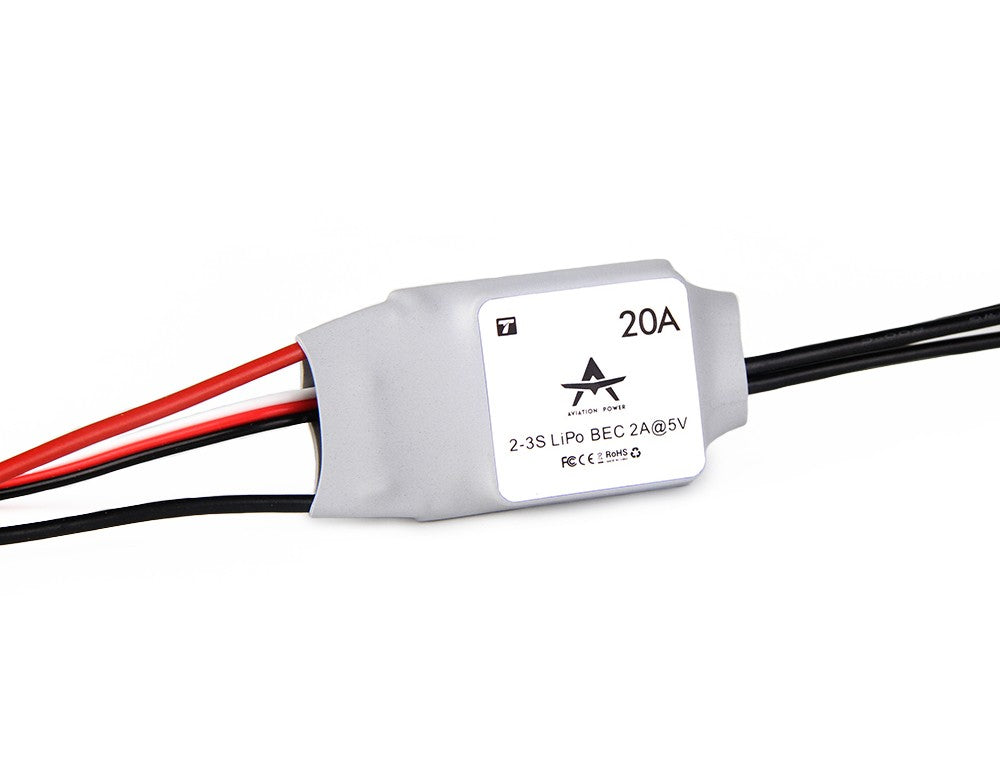

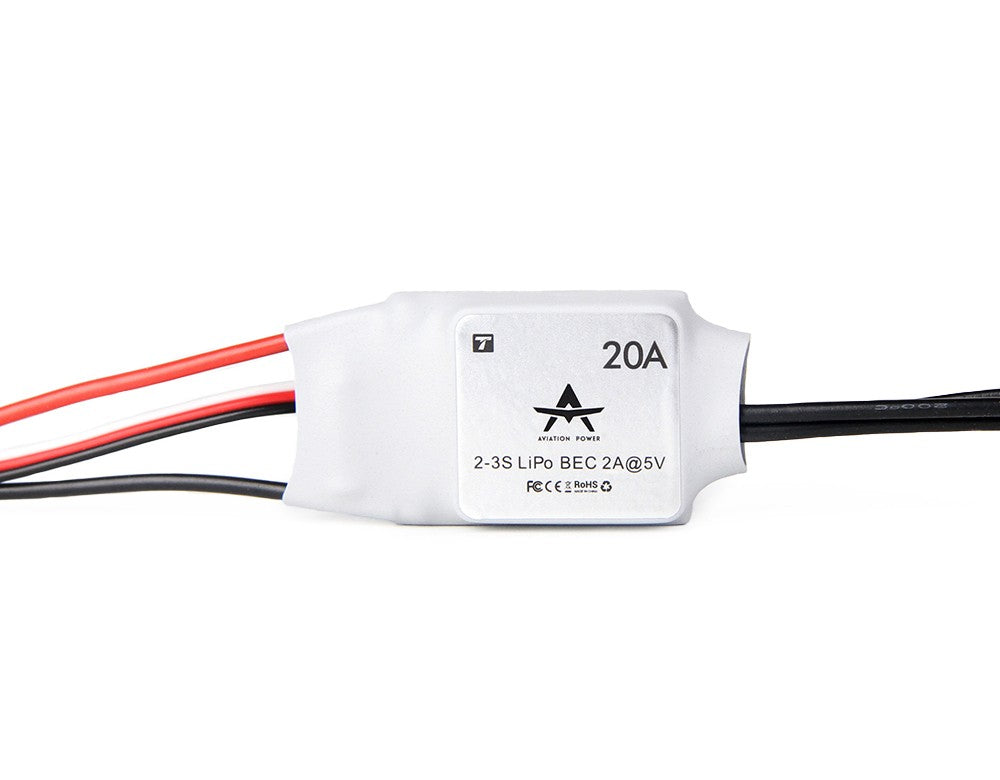

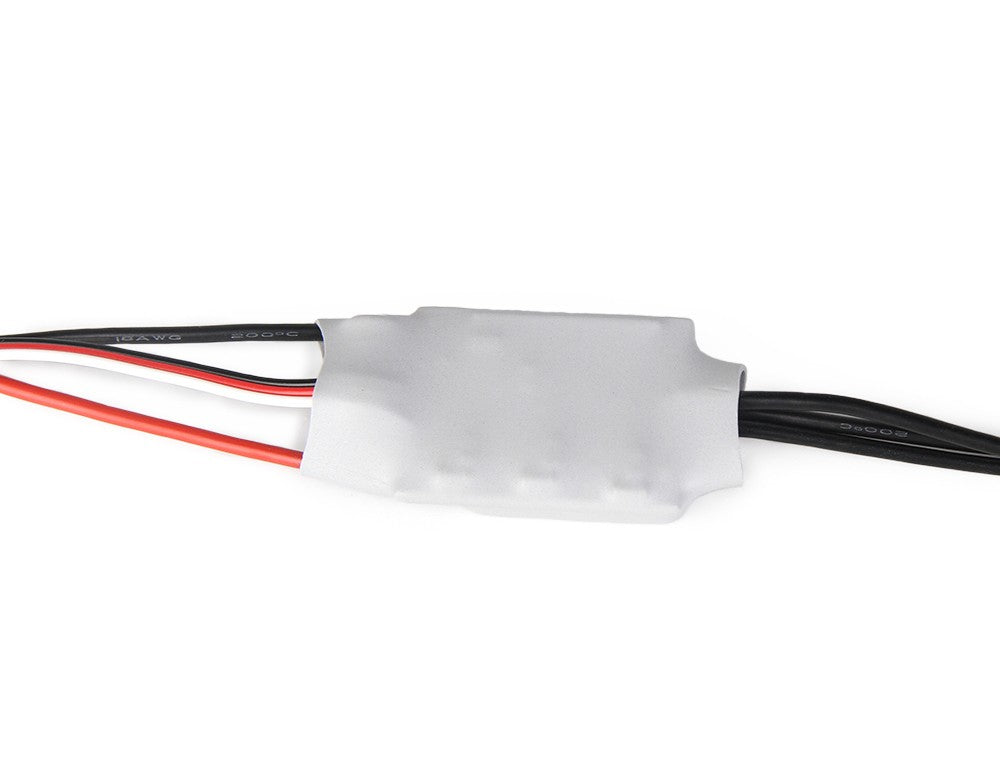

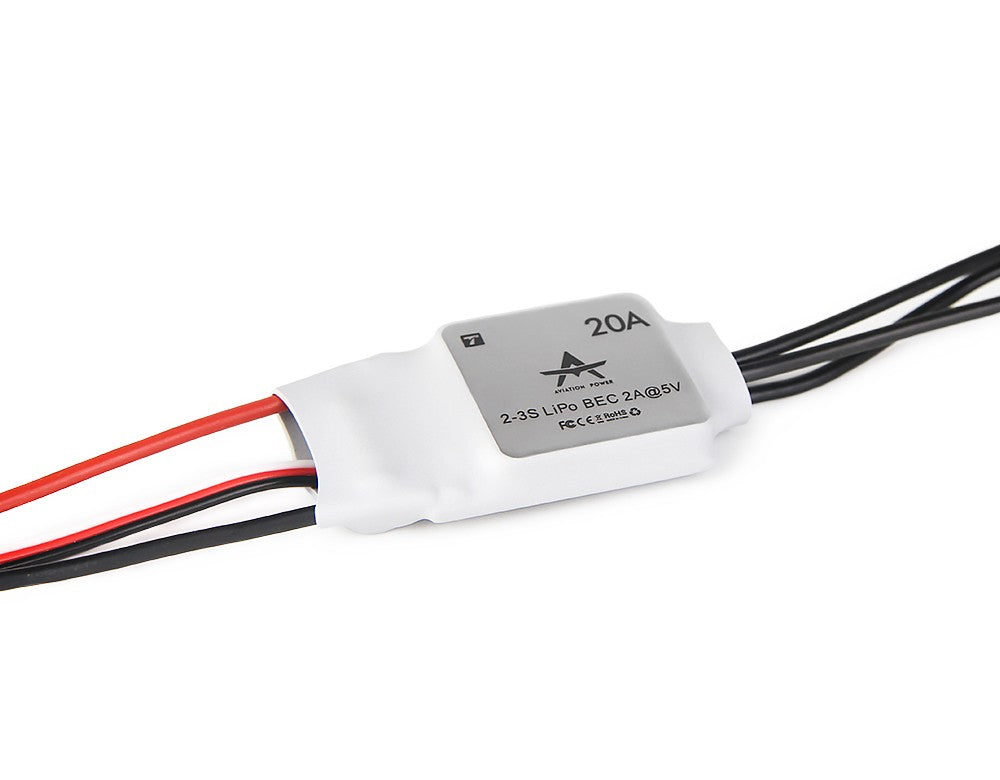

T-MOTOR AT20A 2-3S Fixed-Wing ESC
$39.00
AT Series for fixed-wing aircraft. The T-MOTOR AT20A is an official 2-3S LiPo fixed-wing electronic speed controller rated at 20 A continuous and 25 A peak current.
Key Features
- Exact manufacturer SKU AGT01010001.
- 2-3S LiPo input range with 20 A continuous current.
- 25 A manufacturer-listed peak current.
- Linear BEC, 5 V / 2 A.
- Official size 42 x 25 x 8 mm; source-listed weight 19 g.
Specifications
| Manufacturer SKU | AGT01010001 |
|---|---|
| Battery range | 2-3S LiPo |
| Continuous current | 20 A |
| Peak current | 25 A |
| BEC | Linear BEC, 5 V / 2 A |
| Dimensions | 42 x 25 x 8 mm |
| Weight | 19 g |
| Manufacturer matching guide | AT2317 and AT2321 motors |
What's Included
One T-MOTOR AT Series ESC and one manufacturer-listed hardware kit. Motor, propeller, battery, receiver, servos, programming accessories, connectors not shown as attached, and other aircraft components are sold separately.
Integration and Safety
Confirm battery voltage, motor current, BEC load, throttle signal, wiring, connectors, cooling, mounting, and aircraft requirements before use. Follow the current manufacturer instructions and do not transfer ratings between AT models.
AT Series
Specifications and technical data
Official model-specific reference material
Selected configuration
AT20A
Manufacturer SKU AGT01010001
| Manufacturer SKU | AGT01010001 |
|---|---|
| Series | AT Series |
| Application | Fixed-wing UAV / aircraft |
| Battery range | 2-3S LiPo |
| Continuous current | 20 A |
| Peak current | 25 A |
| BEC | Linear BEC, 5 V / 2 A |
| Dimensions | 42 x 25 x 8 mm |
| Weight | 19 g |
| Manufacturer matching guide | AT2317 and AT2321 motors |
| Package contents | 1 x ESC; 1 x hardware kit |
