Name: T-MOTOR AM40 Aerobatic Fixed-Wing Motor
Brand: T-MOTOR
Price: 89.0 CAD
Availability: InStock

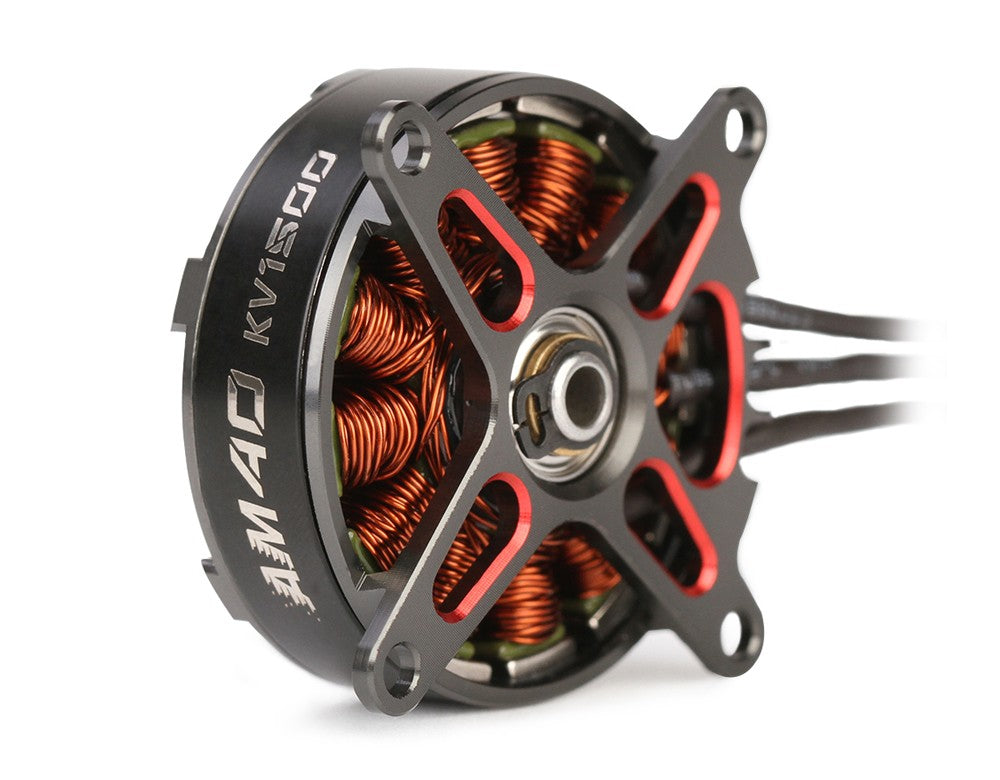

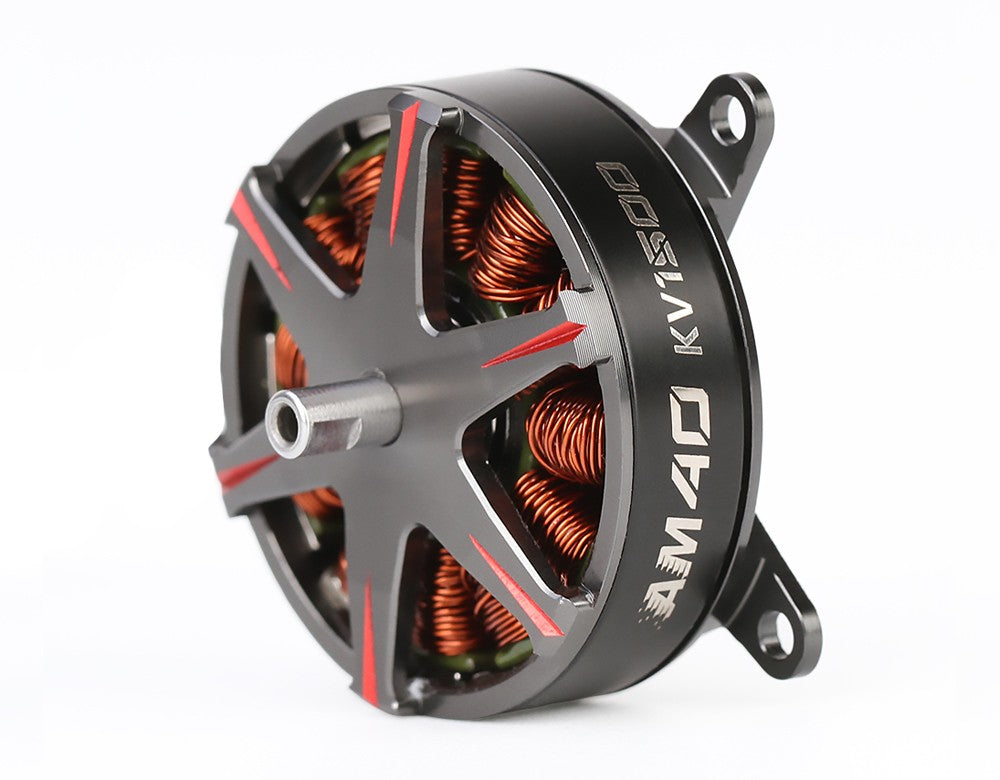

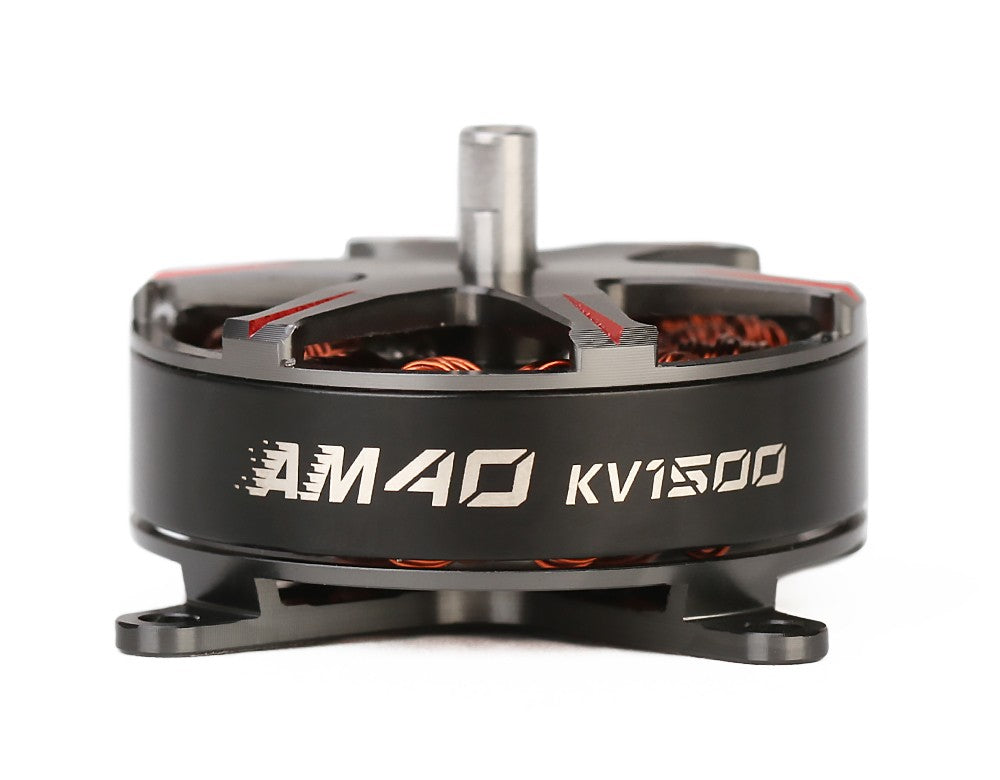

T-MOTOR AM40 Aerobatic Fixed-Wing Motor - verified product view

$89.00

KV KV1500 KV1850

Configuration 3D 4D

The AM40 is an official T-MOTOR AM motor for indoor, aerobatic, and model fixed-wing aircraft applications. Select the exact KV and configuration using the manufacturer data for the complete propulsion system.

Key Features

AM Series motors are optimized for model fixed-wing and aerobatic aircraft, with exact KV and mounting configuration selected for the airframe.
Variant-specific technical reports are shown with the matching selection when the manufacturer provides them.
Propeller, ESC, battery, airframe, and optional accessories are sold separately unless explicitly listed as included.

Configurations

Configuration	Manufacturer identifier	Package
KV1500 - 3D	Not separately assigned by manufacturer	One motor
KV1850 - 3D	Not separately assigned by manufacturer	One motor
KV1500 - 4D	Not separately assigned by manufacturer	One motor
KV1850 - 4D	Not separately assigned by manufacturer	One motor

Technical Specifications

KV1500 - 3D

Series	AM
KV rating	KV1500
Configuration	KV1500 - 3D
Motor weight including cable	22.3 g
Net weight	22.6 g
Package dimensions	92 x 63 x 32 mm

KV1850 - 3D

Series	AM
KV rating	KV1850
Configuration	KV1850 - 3D
Motor weight including cable	22.5 g
Net weight	22.6 g
Package dimensions	92 x 63 x 32 mm

KV1500 - 4D

Series	AM
KV rating	KV1500
Configuration	KV1500 - 4D
Motor weight including cable	22.3 g

KV1850 - 4D

Series	AM
KV rating	KV1850
Configuration	KV1850 - 4D
Motor weight including cable	22.5 g

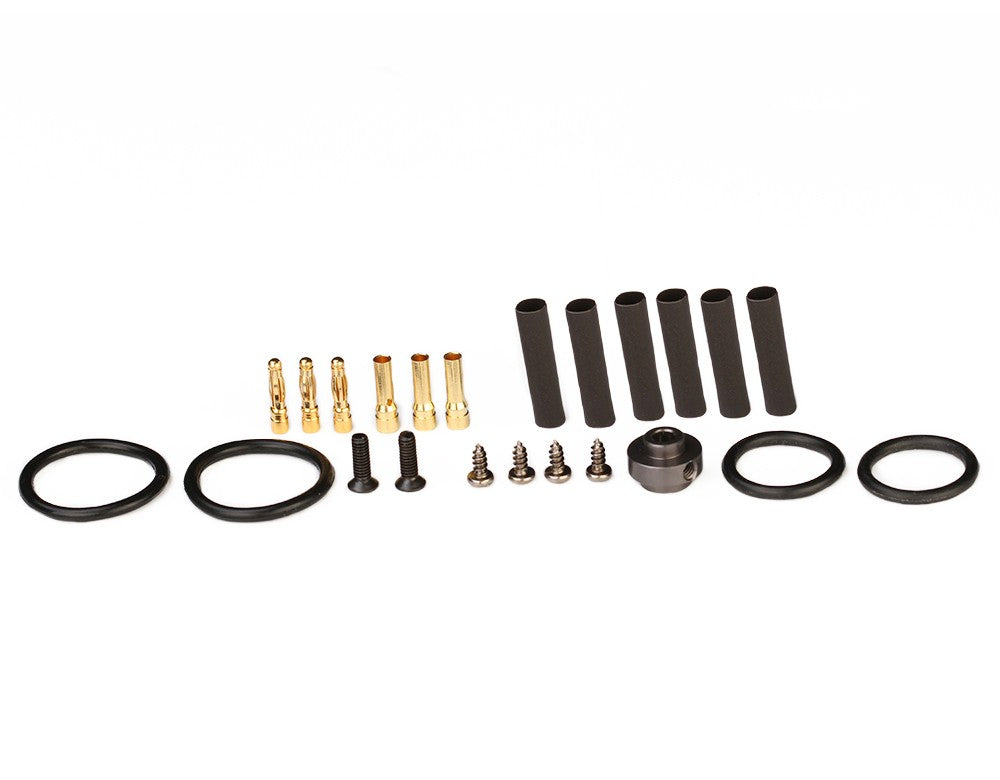

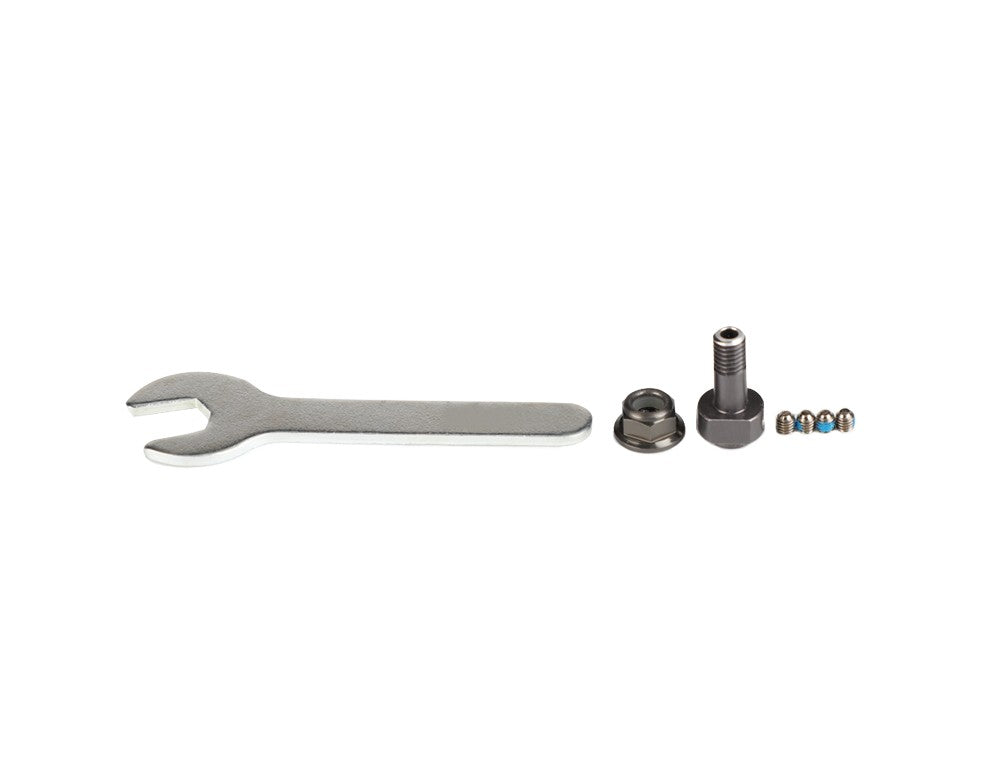

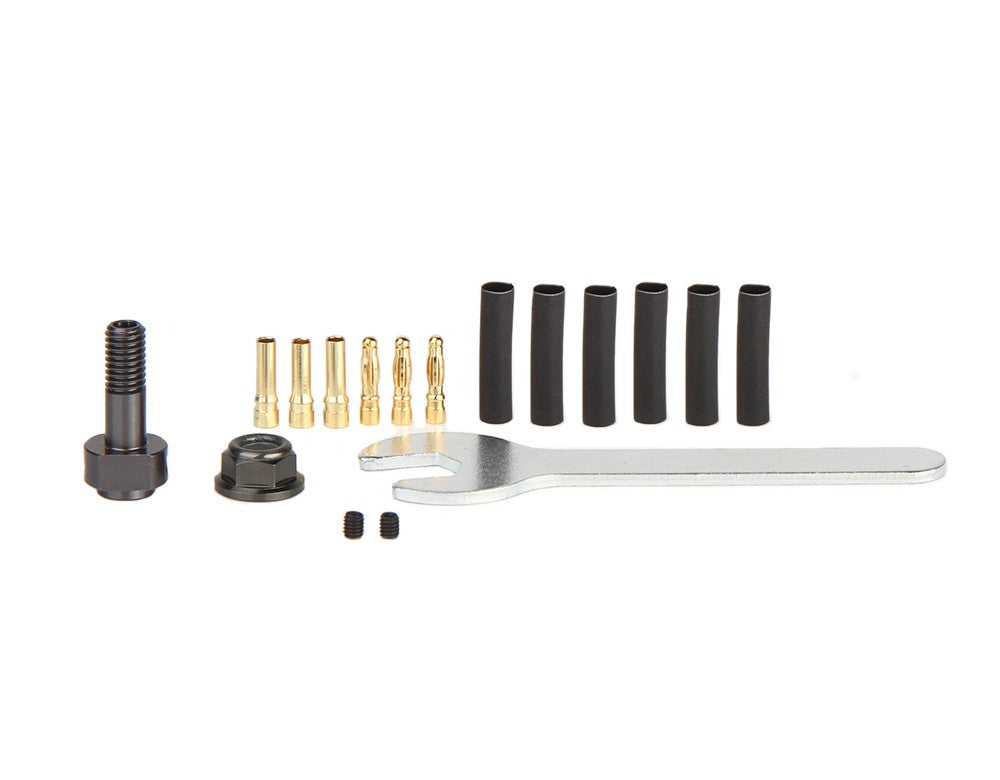

What's Included

One selected T-MOTOR motor, or the stated multi-motor set where the package is explicitly identified as a set. Propeller, ESC, battery, airframe, controller, adapter, and other pictured system components are not included unless the official packing list explicitly names them.

Compatibility and Safety

Motor suitability is configuration-specific. Confirm KV, battery voltage, propeller load, ESC current and voltage limits, mounting, cooling, wiring, aircraft mass, and the exact manufacturer test conditions before installation. Do not infer compatibility from physical appearance alone.
